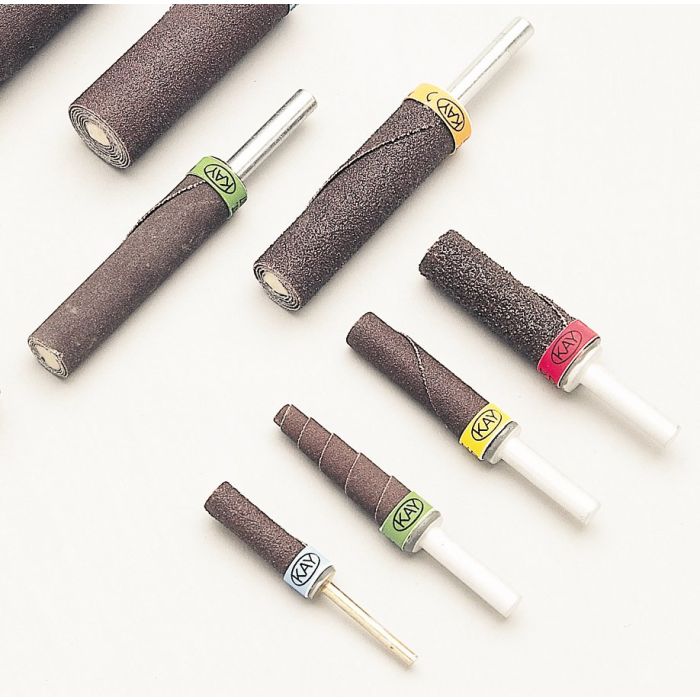

Standard Abrasives™ Zirconia Cartridge Roll, 71644, 8, CR-ST, 60, 3/8 inx 1-1/2 in x 1/8 in, Straight, 100 ea/Case

Choose a Standard Abrasives™ Zirconia Precision Cartridge Roll Model C (formerly Kay Roll) when you need added abrasive stability for grinding or deburring applications on hard-to-reach areas of the workpiece. Its small size and shape pass easily over and into irregular contours and enable it to reach into holes and diameters of machined parts. It is ideal for getting into grooves, slots, threads or channels, punched or drilled holes, and contoured surfaces such as car parts.

The secure bond of the roll to the drive stem eliminates loosening and vibration, making the Precision Cartridge Roll especially beneficial when high tolerance and precision grinding are required. The multiple layers provide self-trimming capability during use, exposing new abrasive cutting points throughout the life of the roll.

Heavy-duty zirconia alumina is well-suited for coarse stock removal on all metals, including stainless steel. Combining an aggressive cut with durability makes it a great solution for edge breaking and removal of machine tool marks or flash.

The Model C cartridge roll has an affixed 1/4? stem that reaches 5/8? into the core and is bonded to the abrasive backing. This stem attaches to a rotary tool such as a die grinder or drill for smooth, controlled high-speed grinding. The protruded stem allows the operator to apply heavier pressure with larger tools.

Cartridge rolls are either straight or tapered. Straight rolls are cylindrical and effective at getting into curves on stamped or rounded parts. Tapered rolls are cone shaped and allow better reach into punched or drilled holes.

Zirconia Alumina fractures frequently under heavy pressure to continually produce fresh sharp points and delivers a faster cut-rate than aluminum oxide. A man-made mineral, it is well-suited for coarse grits, heavy stock removal and high pressure grinding.

Seemingly small, these cartridge rolls conquer big challenges when space gets tight. The multi-layer, multi-wear design of a Standard Abrasives™ Cartridge Roll keeps it cutting sharp and helps it withstand repeated wear. As top layers wear down with use, underlying layers expose fresh mineral, so you get a continuous and consistent cut, part after part. Wrapping multiple layers of the abrasive material around into a roll contributes to its sturdiness and durability.

A resin bond securely anchors mineral to the cloth backing – also enhancing the abrasive's toughness and strength. The closed-coat construction means mineral grains cover 100 percent of the cloth backing, so that a smoother, more consistent finish is achieved.

The Standard Abrasives brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on our broad offering of high performance products including coated, bonded, and non-woven abrasive lines.

• Ideal for high-speed grinding and deburring on ferrous and non-ferrous metals
• Solid construction excels at high tolerance and precision grinding
• Small size enables operators to reach tight spots with high speed
• Multi-layer design continually reveals fresh abrasive for longevity
• Versatile range of sizes and grades are designed to meet specific project needs
• Model C has an affixed 1/4? drive stem that protrudes about 5/8? into the core and is suitable for use with larger tools
• Long-lasting zirconia alumina is well suited for coarse stock removal
• Straight cylinder shape easily follows contours and tapered rolls reach into tight diameters
