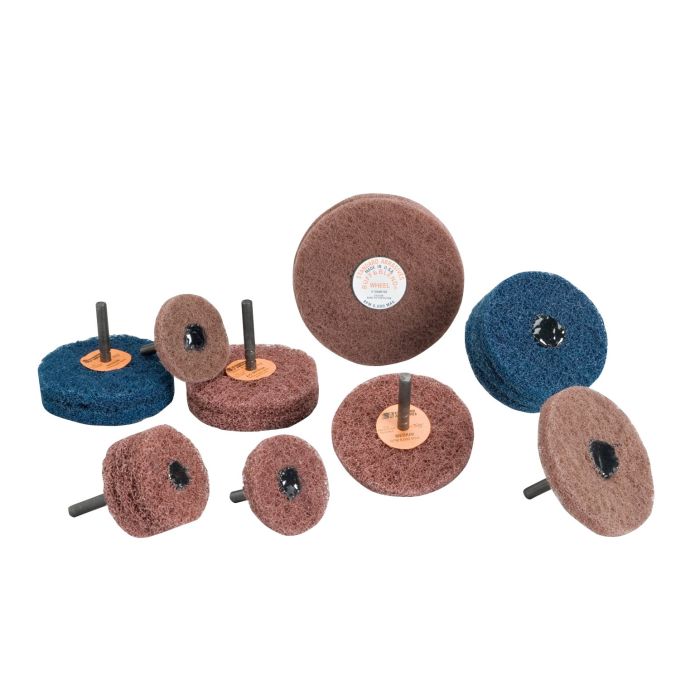

Standard Abrasives™ Buff and Blend HS Wheel 880476, 3 in x 3 Ply x 1/4 in A MED, 10/Carton, 100 ea/Case
| UPC | 00051115358357 |
|---|---|
| 3M ID | 7100095564 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Medium and Very Fine Grades are Well-Suited for Deburring and Finishing Irregular-Shaped Parts
Among the four Standard Abrasives™ Buff and Blend materials, HS material is the most stiff, durable and aggressive. Given its strength and durability, the Standard Abrasives™ Buff and Blend HS Wheel is a good match for irregular-shaped parts, such as pipe threads, the edges of molded glass containers, and non-ferrous die cast molded parts. It removes small, stubborn burrs and cuts sharp to produce a consistent finish. Non-woven construction makes the material responsive to contours and extrusions while minimizing gouging or marring of the substrate.
Aluminum oxide abrasive grain bonded to the nylon strands produces a uniform scratch pattern - ideal for satin or grain finishing. Use a Standard Abrasives™ Buff and Blend HS Wheel for high luster and decorative finishing on brass, steel, bronze, pewter, and stainless steel, as well as plated plastics. The permanently affixed 1/4? shank eliminates ?ganging? of individual discs to form a sturdier wheel.
1, 2 or 3-Ply Wheels
Choose between 1-ply, 2-ply and 3-ply options. The 1-ply wheel has the greatest flexibility for reaching into tubing and other tight spaces. The 2-ply option provides added stiffness, while the 3-ply wheel is the best choice when strength is desired over flexibility.
HS Medium (Blue Wheel) Applications
Edge breaking, deburring and finishing of edges and welds Satin and grain finishing of metal surfaces Cleaning surface contamination Easily finishes contoured parts Produces a clean finish, without irregular scratches and ?sparkles?
Markets include stainless steel fabricators, plumbing fixtures, door hardware, food equipment manufacturers, aluminum extruded products, aircraft engine manufacturers, orthopedic implants
HS Very Fine (Maroon Wheel) Applications
Light deburring and final finishing of small, irregular shaped parts Light edge breaking on machined or stamped parts Edge radiusing Deburring threaded parts Pre-finish of precious metals prior to polishing
Markets include aerospace, aircraft equipment, foundries, machine builders, machine shops, and mold and die shops
When your application calls for an even lighter-duty disc or if the final finish isn't as critical, we suggest the Standard Abrasives™ Buff and Blend GP or HP products. For off-hand and automated finishing processes, we recommend the loftier Buff and Blend HS-F Wheel.
Load-Resistant Construction Boosts Life and Performance
Standard Abrasives™ Buff and Blend products are load-resistant to keep you cutting with fresh mineral. The gaps in the open web allow unwanted swarf to escape. Consequently, less debris clogs the abrasive, so the mineral can stay fresh, keep cutting sharp and deliver a consistent cut over the life of the product. As the fibers break down and fresh mineral is exposed, it reduces the likelihood of dull or blunt mineral smearing the surface, contributing to cleaner surfaces and less re-work. Furthermore, manual fatigue that may result from applying heavy pressure to a dull abrasive is reduced.
The Many Benefits of Standard Abrasives™ Buff and Blend Products
Standard Abrasives™ Buff and Blend products invigorate deburring, cleaning, blending and finishing applications by helping operators reduce finishing steps, minimize costs and achieve greater throughput. Each Buff and Blend product and grade offers unique benefits, so operators can choose from a versatile range of options to ensure superior performance on specific applications.
- High strength (HS) Buff and Blend material delivers excellent results for light deburring, cleaning, and high luster or decorative finishing
- Denser, stiffer construction than HP material withstands higher pressure
- Produces a uniform, consistent, smear-free finish on ferrous and non-ferrous metals
- Flexible, pliable nylon removes burrs and surface contaminants and minimizes gouging of the substrate
- Waterproof, load-resistant open web limits buildup of debris that can clog the abrasive
- Built-in 1/4? shank securely fastens to a small, straight grinder and eliminates ?ganging? of individual discs
- Two grades of aluminum oxide to choose from offer varying degrees of aggressiveness and finish: Medium (MED - blue), and very fine (VFN - maroon)
| 3M ID | 7100095564 |
|---|---|
| Part number | 880476 |
| Global Product Hierarchy | Abrasives > Abrasive Wheels > Deburring & Finishing Wheels |
| Abrasive Material | Aluminum Oxide |
| Application | Deburring |
| Center Hole Diameter (Imperial) | 0.25 in |
| Center Hole Diameter (Metric) | 6.35 mm |
| Grit | Non Pertinent |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 67.313 G |
| Base - Metric Height Dimension | 6.35 MM |
| Base - Metric Length Dimension | 76.2 MM |
| Base - Metric Width Dimension | 76.2 MM |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Gross Weight | 0.14839976254450665 lbs |
| Unit of Use - Customary Net Weight | 0.1483931486766411 lbs |
| Unit of Use - Customary Height Dimension | 0.25 in |
| Unit of Use - Customary Length Dimension | 3.0 in |
| Unit of Use - Customary Width Dimension | 3.0 in |
| Unit of Use - Metric Cubic Dimension | 36870.895 MMQ |
| Unit of Use - Metric Net Weight | 67.31 G |
| Unit of Use - Metric Height Dimension | 6.35 MM |
| Unit of Use - Metric Length Dimension | 76.2 MM |
| Unit of Use - Metric Width Dimension | 76.2 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | EACH |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 163.27555686607437 ci |
| Inner - Customary Gross Weight | 1.6279991658589847 lbs |
| Inner - Customary Net Weight | 1.483931486766411 lbs |
| Inner - Customary Height Dimension | 8.062992125984252 in |
| Inner - Customary Length Dimension | 4.5 in |
| Inner - Customary Width Dimension | 4.5 in |
| Inner - Metric Cubic Dimension | 2675.607 CCM |
| Inner - Metric Net Weight | 673.1 G |
| Inner - Metric Height Dimension | 20.48 CM |
| Inner - Metric Length Dimension | 11.43 CM |
| Inner - Metric Width Dimension | 11.43 CM |
| Inner - Item Quantity | 10 |
| Inner - Total Unit Quantity | 10 |
| Inner - Previous Packaging Level Quantity | 10 |
| Inner - Item Unit | EACH |
| Inner - Previous Packaging Level Unit | EACH |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 2028.6828683893589 ci |
| Shipper - Customary Gross Weight | 17.24896739334482 lbs |
| Shipper - Customary Net Weight | 14.83931486766411 lbs |
| Shipper - Customary Height Dimension | 8.874803149606299 in |
| Shipper - Customary Length Dimension | 23.75 in |
| Shipper - Customary Width Dimension | 9.624803149606299 in |
| Shipper - Metric Cubic Dimension | 33244.156 CCM |
| Shipper - Metric Weight | 7.824 KG |
| Shipper - Metric Net Weight | 6.731 KG |
| Shipper - Metric Height Dimension | 22.542 CM |
| Shipper - Metric Length Dimension | 60.325 CM |
| Shipper - Metric Width Dimension | 24.447 CM |
| Shipper - Item Quantity | 100 |
| Shipper - Total Unit Quantity | 100 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | EACH |
| Shipper - Unit | CS |
| Pallet - Billing Unit | EA |
| Pallet - Customary Cubic Dimension | 81466.6983664676 ci |
| Pallet - Customary Gross Weight | 587.0006146708332 lbs |
| Pallet - Customary Net Weight | 474.8580757652515 lbs |
| Pallet - Customary Height Dimension | 40.47244094488189 in |
| Pallet - Customary Length Dimension | 47.99212598425197 in |
| Pallet - Customary Width Dimension | 41.968503937007874 in |
| Pallet - Metric Cubic Dimension | 1.335 M3 |
| Pallet - Metric Net Weight | 215.392 KG |
| Pallet - Metric Height Dimension | 1.028 M |
| Pallet - Metric Length Dimension | 1.219 M |
| Pallet - Metric Width Dimension | 1.066 M |
| Pallet - Item Quantity | 3200 |
| Pallet - Total Unit Quantity | 3200 |
| Pallet - Previous Packaging Level Quantity | 32 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | EACH |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 8 |
