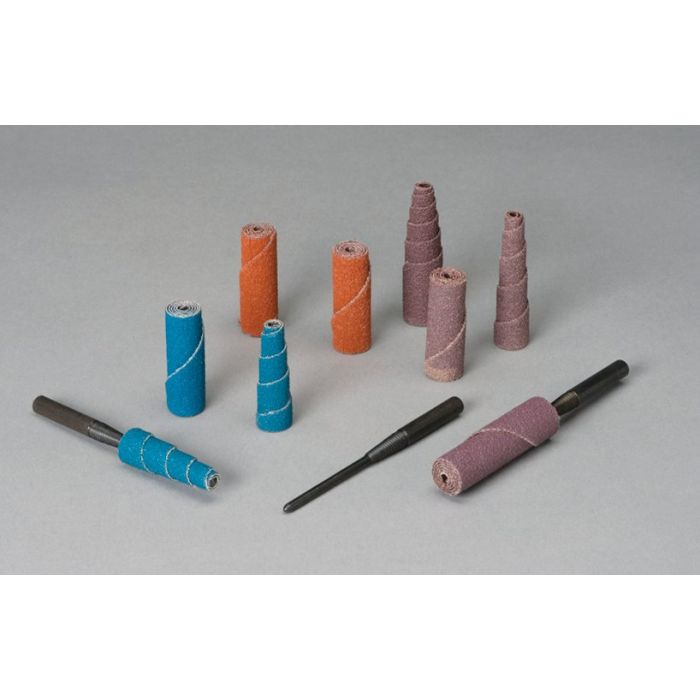

Standard Abrasives™ Aluminum Oxide Cartridge Roll, 710302, CR-ST, 40,3/4 in x 2 in x 3/16 in, Straight, 50 ea/Case
| UPC | 00051115340352 |
|---|---|
| 3M ID | 7100102864 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
The multi-layered Standard Abrasives™ Aluminum Oxide Cartridge Roll exposes new abrasive cutting points throughout the life of the roll. Combining an aggressive cut with durability makes it great for polishing, edge breaking and removal of machine tool marks or flash. Its small size and shape enable it to blend, deburr and polish inside holes and diameters or on irregular surfaces and contours.The cartridge roll has an arbor hole to accommodate a mandrel tool attachment (sold separately). This mandrel attaches to a rotary tool such as a die grinder or drill and comes in different sizes to fit a variety of cartridge roll sizes. Together, the mandrel and cartridge roll enable the user to grind or finish hard-to-reach areas of a workpiece, such as angles and curves.
The Aluminum Oxide Cartridge Rolls come in a variety of sizes and grades, so it can be tailored to meet unqiue project needs.Grades range from 36 to 400, producing a spectrum of finishes, from coarse to fine.It is made with aluminum oxide mineral, which cuts sharp and is friable – fragmenting under heat and pressure to reveal sharp cutting edges as it abrades the surface.The straight roll design is cylindrical, which helps it roll over irregular contours.
Benefits of a Multi-Layer Design?The multi-layer, multi-wear design of Standard Abrasives™ Aluminum Oxide Cartridge Roll keeps it cutting sharp and helps it withstand repeated wear. As top layers wear down over time, underlying layers expose fresh mineral, so you get a consistent cut, part after part.Wrapping multiple layers of the abrasive material around into a roll contributes to its sturdiness and durability. A resin bond securely anchors mineral to the cloth backing – also enhancing the abrasive's toughness and strength. The closed-coat construction means mineral grains cover 100 percent of the cloth backing, so you get a smoother, more consistent finish is achieved. Seemingly small, these cartridge rolls conquer big challenges when space gets tight.
- Ideal for blending, deburring and polishing on ferrous metals
- Straight cylindrical shape enables operators to finish hard-to-reach areas
- Versatile range of minerals and grades are designed to meet specific project needs
- Arbor hole accommodates mandrel tool attachment, so abrasive may be used with various tools
- Multi-layer, multi-wear design enhances abrasive longevity and helps produce a consistent cut
| 3M ID | 7100102864 |
|---|---|
| Part number | 710302 |
| Global Product Hierarchy | Abrasives > Specialty Abrasives > Cartridge Rolls |
| Abrasive Material | Aluminum Oxide |
| Application | Deburring, Finishing, Grinding, Polishing |
| Backing Material | Cloth |
| Backing Weight | X Weight |
| Bond Type | Resin |
| Center Hole Diameter (Imperial) | 0.1875 in |
| Center Hole Diameter (Metric) | 4.763 mm |
| Color Family | Brown |
| Grit | 40 |
| Product Color | Brown |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 21.319 G |
| Base - Metric Height Dimension | 4.775 MM |
| Base - Metric Length Dimension | 19.05 MM |
| Base - Metric Width Dimension | 50.8 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 0.282 ci |
| Unit of Use - Customary Gross Weight | 0.04700034967519405 lbs |
| Unit of Use - Customary Net Weight | 0.04695846184537893 lbs |
| Unit of Use - Customary Height Dimension | 0.18799212598425197 in |
| Unit of Use - Customary Length Dimension | 0.75 in |
| Unit of Use - Customary Width Dimension | 2.0 in |
| Unit of Use - Metric Cubic Dimension | 0.282 IN3 |
| Unit of Use - Metric Net Weight | 21.3 G |
| Unit of Use - Metric Height Dimension | 4.775 MM |
| Unit of Use - Metric Length Dimension | 19.05 MM |
| Unit of Use - Metric Width Dimension | 50.8 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 432.3776364088161 ci |
| Shipper - Customary Gross Weight | 2.6340831085849175 lbs |
| Shipper - Customary Net Weight | 2.347923092268946 lbs |
| Shipper - Customary Height Dimension | 6.889763779527559 in |
| Shipper - Customary Length Dimension | 9.488188976377952 in |
| Shipper - Customary Width Dimension | 6.6141732283464565 in |
| Shipper - Metric Cubic Dimension | 7085.4 CCM |
| Shipper - Metric Weight | 1194.8 G |
| Shipper - Metric Net Weight | 1065.0 G |
| Shipper - Metric Height Dimension | 17.5 CM |
| Shipper - Metric Length Dimension | 24.1 CM |
| Shipper - Metric Width Dimension | 16.8 CM |
| Shipper - Item Quantity | 50 |
| Shipper - Total Unit Quantity | 50 |
| Shipper - Previous Packaging Level Quantity | 50 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 93183.2572326562 ci |
| Pallet - Customary Gross Weight | 676.8191449075741 lbs |
| Pallet - Customary Net Weight | 436.713695162024 lbs |
| Pallet - Customary Height Dimension | 46.06299212598425 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.527 M3 |
| Pallet - Metric Net Weight | 198.09 KG |
| Pallet - Metric Height Dimension | 1.17 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 9300 |
| Pallet - Total Unit Quantity | 9300 |
| Pallet - Previous Packaging Level Quantity | 186 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 6 |
| Pallet - Shipping Container Per Layer Quantity | 31 |
