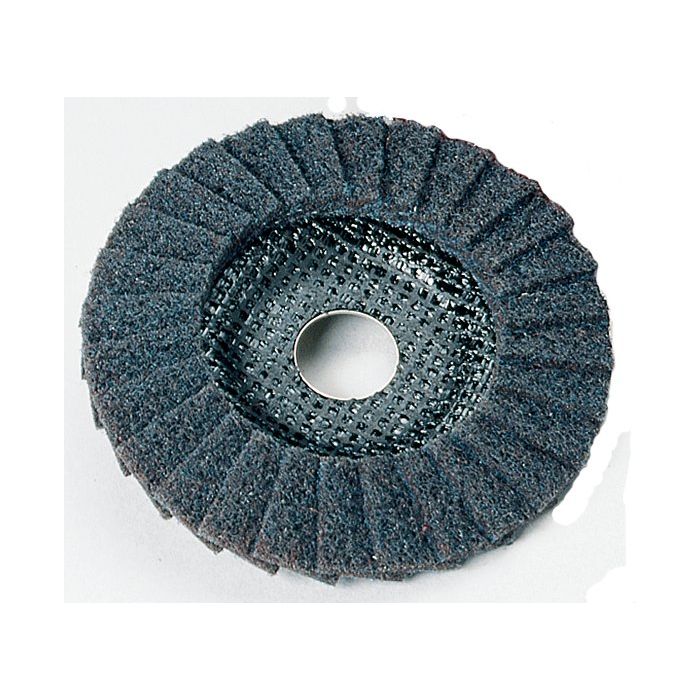

Standard Abrasives™ Surface Conditioning Flap Disc, 821350, Very Fine, 4-1/2 in x 5/8 in-11, 5/Carton, 50 ea/Case
| UPC | 00051115376702 |
|---|---|
| 3M ID | 7010330499 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Ideal for light deburring and blending applications where final finish is important, the Standard Abrasives™ Surface Conditioning Flap Disc delivers a fast cut and consistent finish in a single step. The non-woven nylon material is both durable and load-resistant, making this an especially long-lasting disc. The heat resistant open web makes this an excellent choice for use on aluminum, stainless steel, and titanium.
Recommended ApplicationsThis non-woven aluminum oxide product offers an excellent solution for deburring, edge breaking, blending, cleaning, finishing, and polishing after traditional grinding is done with a Resin Fiber or Flap Disc. Use it for deburring milled surfaces and edges, preparing for anodizing, blending weld seams, removing flash and parting lines, and removing scratches or weld discoloration.
Engineered for Single-Step Efficiency and Extended UtilityFlap discs are three-dimensional discs with overlapping layers of non-woven, scrim-reinforced flaps that fan out from a central hub. The overlapping layers continually expose fresh abrasive mineral for a fast cut, while the cushioning of the flaps creates a consistent, blended finish. The one-step alternative to coated discs, surface conditioning flap discs deburr and finish in a single step, making them a time and cost-saving solution in many typical applications. And, because their overlapping construction allows more abrasive material to be loaded onto the cutting surface, they far outlast typical discs. Flap discs have the flexibility to easily follow curves and contours while delivering less gouging and enhancing operator comfort.
Using a Flap DiscFlap discs are used on a right angle grinder. Flap discs with a 7/8? center hole can be secured onto a right angle sander with a compatible disc retainer nut (sold separately). Flap discs with a 5/8-11 internal thread are designed to be mounted directly to tools with 5/8-11 EXT threaded shafts.
The Standard Abrasives™ Surface Conditioning Flap Disc is designed with a Type 29 conical profile. Flaps are angled to provide more aggressive cutting action, making this profile ideal for stock removal and faster results on edge work, flats and contours.
- Non-woven flaps combine deburring, blending and finishing into one step for greater efficiency
- Constructed for long life, flexibility, heat-resistance and load-resistance
- Excellent choice for aluminum, steel and titanium substrates
- Overlapping flaps increase durability and enhance cut rate
- Open web responds to surface irregularities and minimizes gouging of the part
- Phenolic resin plate provides cushion effect for optimal blending and dampens vibration, reducing operator fatigue and tool wear
- Made with aluminum oxide for fast cut rate and long life
| 3M ID | 7010330499 |
|---|---|
| Part number | 821350 |
| Keywords | Standard Abrasive, Metalworking |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Flap Discs |
| Abrasive Material | Aluminum Oxide |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Center Hole Thread Size | 40760 |
| Center Hole Diameter (Metric) | 0.0 NP |
| Disc Type | Non Pertinent |
| Grit | Non Pertinent |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | Belgium |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 128.82 G |
| Base - Metric Height Dimension | 1.6 CM |
| Base - Metric Length Dimension | 11.43 CM |
| Base - Metric Width Dimension | 11.43 CM |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 12.755915275610079 ci |
| Unit of Use - Customary Gross Weight | 0.2839994861465593 lbs |
| Unit of Use - Customary Net Weight | 0.2839994861465593 lbs |
| Unit of Use - Customary Height Dimension | 0.6299212598425197 in |
| Unit of Use - Customary Length Dimension | 4.5 in |
| Unit of Use - Customary Width Dimension | 4.5 in |
| Unit of Use - Metric Cubic Dimension | 209.032 CCM |
| Unit of Use - Metric Net Weight | 128.82 G |
| Unit of Use - Metric Height Dimension | 1.6 CM |
| Unit of Use - Metric Length Dimension | 11.43 CM |
| Unit of Use - Metric Width Dimension | 11.43 CM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | EACH |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 86.06251858173007 ci |
| Inner - Customary Gross Weight | 1.536998957896933 lbs |
| Inner - Customary Net Weight | 1.4199974307327965 lbs |
| Inner - Customary Height Dimension | 4.25 in |
| Inner - Customary Length Dimension | 4.5 in |
| Inner - Customary Width Dimension | 4.5 in |
| Inner - Metric Cubic Dimension | 1410.312 CCM |
| Inner - Metric Net Weight | 644.1 G |
| Inner - Metric Height Dimension | 10.795 CM |
| Inner - Metric Length Dimension | 11.43 CM |
| Inner - Metric Width Dimension | 11.43 CM |
| Inner - Item Quantity | 5 |
| Inner - Total Unit Quantity | 5 |
| Inner - Previous Packaging Level Quantity | 5 |
| Inner - Item Unit | EACH |
| Inner - Previous Packaging Level Unit | EACH |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 1171.4740358614577 ci |
| Shipper - Customary Gross Weight | 16.129019101445643 lbs |
| Shipper - Customary Net Weight | 14.199974307327965 lbs |
| Shipper - Customary Height Dimension | 5.124803149606299 in |
| Shipper - Customary Length Dimension | 23.75 in |
| Shipper - Customary Width Dimension | 9.624803149606299 in |
| Shipper - Metric Cubic Dimension | 19197.02 CCM |
| Shipper - Metric Weight | 7.316 KG |
| Shipper - Metric Net Weight | 6.441 KG |
| Shipper - Metric Height Dimension | 13.017 CM |
| Shipper - Metric Length Dimension | 60.325 CM |
| Shipper - Metric Width Dimension | 24.447 CM |
| Shipper - Item Quantity | 50 |
| Shipper - Total Unit Quantity | 50 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | EACH |
| Shipper - Unit | CS |
| Pallet - Billing Unit | EA |
| Pallet - Customary Cubic Dimension | 93183.2572326562 ci |
| Pallet - Customary Gross Weight | 1078.0604620840513 lbs |
| Pallet - Customary Net Weight | 908.7983556689898 lbs |
| Pallet - Customary Height Dimension | 46.06299212598425 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.527 M3 |
| Pallet - Metric Net Weight | 412.224 KG |
| Pallet - Metric Height Dimension | 117.0 CM |
| Pallet - Metric Length Dimension | 122.0 CM |
| Pallet - Metric Width Dimension | 107.0 CM |
| Pallet - Item Quantity | 3200 |
| Pallet - Total Unit Quantity | 3200 |
| Pallet - Previous Packaging Level Quantity | 64 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | EACH |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 8 |
| Pallet - Shipping Container Per Layer Quantity | 8 |
