Standard Abrasives™ S/C Slotted Cloth Disc 704586, 1 in x NH, 120,100/Carton, 1000 ea/Case
| UPC | 00051115414527 |
|---|---|
| 3M ID | 7010331286 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support

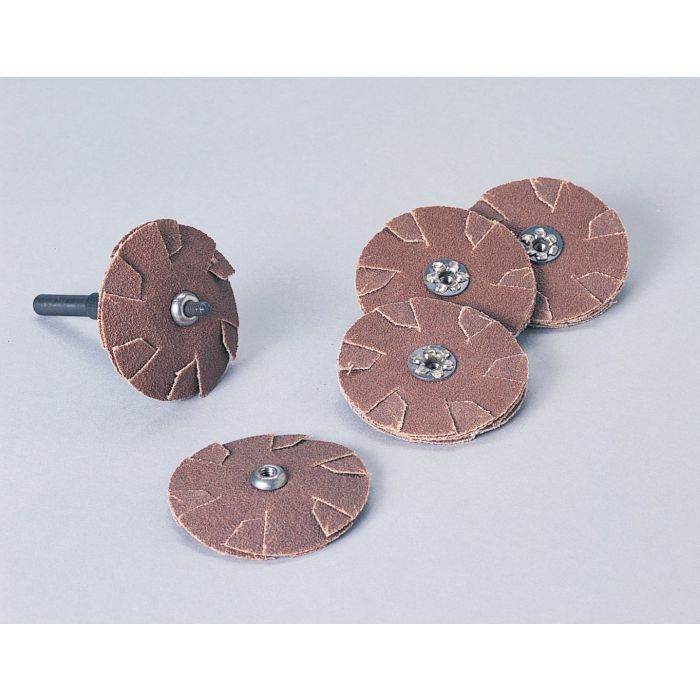

When you need a coated abrasive product with a lighter touch than a cross pad, the Standard Abrasives™ Silicon Carbide Slotted Cloth Disc is a good option and provides full coverage. While cross pads are very effective for more aggressive application in coarse grits, the slotted disc works well for less aggressive follow-up steps. The slotted construction makes the disc flexible so that the operator can push it into a hole or tube and achieve full contact with internal diameters. For push-pull applications, a Standard Abrasives™ Overlap Disc is recommended.
Super Sharp Silicon Carbide Leaves a Fine FinishSilicon Carbide is a very sharp mineral most commonly used for low-pressure applications such as paint prep and the final stages of whitewood sanding. It is also an excellent choice for stainless steel applications. While it may have a shorter life than aluminum oxide, it produces a finer finish and should be used when a fine scratch pattern is desired.
Running a Slotted Cloth DiscFor the convenience of tool-free disc changes, these slotted discs have either a threaded eyelet arbor hole that screws onto a mandrel and is secured by hand with an attachment bolt, or a built-in 8-32 threaded shaft. A shorter mandrel allows for a steadier application, while a mandrel with extended reach allows access deeper into pipe interiors. Compatible threaded Standard Abrasives™ Mandrels are available separately with thread sizes of 8-32, 3-48, and 14-20. An extended version is available with 8-32 threads.
Quality Standard Abrasives™ Solutions for Industrial ApplicationsThe Standard Abrasives brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on their broad offering of high performance products including coated, bonded, and non-woven abrasive lines.
- Slotted construction compresses in push applications for full contact with internal radii, holes, and cylinder walls
- Useful for light deburring, polishing, cleaning, blending and chamfering applications
- Super sharp silicon carbide cuts through stainless steel as well as softer surfaces and leaves a smooth finish
- Choose a disc diameter at least 1/2? smaller than the internal diameter of the workpiece
- Cloth backing provides added durability to resist tearing and fraying
- Compatible Standard Abrasives™ Mandrels are available separately
| 3M ID | 7010331286 |
|---|---|
| Part number | 704586 |
| Keywords | Standard Abrasive Disc, SiC Disc, Slotted Disc, Slotted Cloth Disc, Silicon Carbide Disc |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Cloth Discs |
| Abrasive Material | Silicon Carbide |
| Backing Material | Cloth |
| Backing Weight | Non Pertinent |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Center Hole Diameter (Metric) | 0.0 NP |
| Grit | 120 |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 0.857 G |
| Base - Metric Width Dimension | 0.025 M |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 0.4152055548205585 ci |
| Unit of Use - Customary Gross Weight | 0.0018893615869244008 lbs |
| Unit of Use - Customary Net Weight | 0.0010008986703193442 lbs |
| Unit of Use - Metric Cubic Dimension | 6.804 CCM |
| Unit of Use - Metric Net Weight | 0.454 G |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | EACH |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 27.000016598458394 ci |
| Inner - Customary Gross Weight | 0.1521983273219521 lbs |
| Inner - Customary Net Weight | 0.10008986703193443 lbs |
| Inner - Customary Height Dimension | 3.0 in |
| Inner - Customary Length Dimension | 3.0 in |
| Inner - Customary Width Dimension | 3.0 in |
| Inner - Metric Cubic Dimension | 442.451 CCM |
| Inner - Metric Net Weight | 45.4 G |
| Inner - Metric Height Dimension | 7.62 CM |
| Inner - Metric Length Dimension | 7.62 CM |
| Inner - Metric Width Dimension | 7.62 CM |
| Inner - Item Quantity | 100 |
| Inner - Total Unit Quantity | 100 |
| Inner - Previous Packaging Level Quantity | 100 |
| Inner - Item Unit | EACH |
| Inner - Previous Packaging Level Unit | EACH |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 415.2042122981884 ci |
| Shipper - Customary Gross Weight | 1.888499579479258 lbs |
| Shipper - Customary Net Weight | 1.0008986703193443 lbs |
| Shipper - Customary Height Dimension | 3.8748031496062993 in |
| Shipper - Customary Length Dimension | 15.874803149606299 in |
| Shipper - Customary Width Dimension | 6.75 in |
| Shipper - Metric Cubic Dimension | 6803.978 CCM |
| Shipper - Metric Weight | 856.609 G |
| Shipper - Metric Net Weight | 454.0 G |
| Shipper - Metric Height Dimension | 9.842 CM |
| Shipper - Metric Length Dimension | 40.322 CM |
| Shipper - Metric Width Dimension | 17.145 CM |
| Shipper - Item Quantity | 1000 |
| Shipper - Total Unit Quantity | 1000 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | EACH |
| Shipper - Unit | CS |
| Pallet - Total Unit Quantity | 198000 |
| Pallet - Previous Packaging Level Quantity | 198 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | EACH |
| Pallet - Pallet Layer Quantity | 11 |
| Pallet - Shipping Container Per Layer Quantity | 18 |
