Standard Abrasives™ Quick Change P.A.R.T. GP Disc, 800066, A/O Fine, TSM, Maroon, 5/8 in, Die QS62HM, 50/Carton, 500 ea/Case
| UPC | 00051115351709 |
|---|---|
| 3M ID | 7000122034 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Applying anodized layers to non-ferrous metals is often an important step in many industrial applications; it helps protect the metal surface from rust and corrosion. While desirable, anodized layers can also impede strong connections between metal parts, especially where nuts and bolts are concerned. The thin layer of paint between the workpiece and bolt may inhibit the accessory's ability to clamp down or fasten as tightly as it could. The Standard Abrasives™ P.A.R.T. GP Disc was engineered to help users tackle these issues.

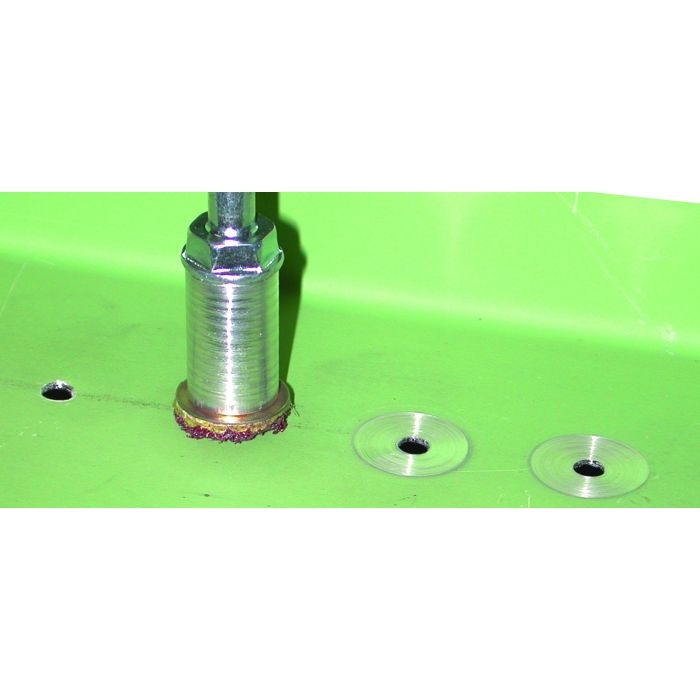

The center hole on the Standard Abrasives™ P.A.R.T. GP Disc self-aligns, so users may clean the surface around the hole without damaging or removing the anodized layer from surrounding workpiece areas. Moreover, the flexible GP surface conditioning material on the disc conforms to contours, radii and I.D. areas, so users can easily maneuver the abrasive around holes. Tough, resin-reinforced nylon fibers withstand repeated wear but also break down to reveal fresh mineral, so the abrasive keeps cutting sharp and delivers a consistent cut. Interspersed with aluminum oxide mineral, it cuts aggressively while leaving a fine finish.
Small Size, Quick Change AttachmentStandard Abrasives™ P.A.R.T. GP Disc was designed with small diameters, so it would be able to clean around even the tiniest of holes. Users can choose from a range of sizes and select the disc that's best suited to their project needs. The P.A.R.T. GP disc features a Quick Change TS attachment, so users can easily fasten these discs to tools using a holder pad. it's advisable for users to select a coarser grade disc when the anodized layer or corroded surface is really thick and a finer grade when the layer is thin.
Wipe Out CompoundsWhen removing anodized layers from metals parts, it's common for operators to use compounds or chemicals to try and extract the special coating. This process may end up being messy, time consuming or, when removing anodized layers from holes, difficult to achieve altogether. Standard Abrasives™ P.A.R.T. GP Disc was designed to help operators lift anodized layers from holes without doing damage to the rest of the workpiece and without having to work with messy compounds. With this paint removal disc, you can clean holes and still maintain the coating that will prevent your workpiece from corroding.
Quality Standard Abrasives™ Solutions for Industrial ApplicationsThe Standard Abrasives brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on their broad offering of high performance products including coated, bonded, and non-woven abrasive lines.
- Specialized disc effectively removes surface contaminants, paint or primer at electrical grounding contact points
- Center hole diameter self-aligns so disc will only clean workpiece hole and maintain anodized layer that surrounds it
- Features Quick Change TS attachment for easy swap out of discs
- Available in a range of grades, so users can select the right disc for the desired results
- Resin-reinforced nylon fibers stand up to repeated wear, prolonging abrasive service life
- Aluminum Oxide mineral cuts sharp while leaving a fine finish
- P.A.R.T. Disc Mandrel required, sold separately
| 3M ID | 7000122034 |
|---|---|
| Part number | 800066 |
| Keywords | Standard Abrasive, Metalworking, Non-woven disc, non woven disc |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Quick Change Discs |
| Abrasive Material | Aluminum Oxide |
| Backing Thickness (Imperial) | 0.0 NP |
| Backing Weight | Non Pertinent |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Center Hole Thread Size | Non Pertinent |
| Center Hole Diameter (Metric) | 0.0 NP |
| Color Family | Red |
| Grit | Non Pertinent |
| Product Color | Maroon |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| Sales Unit | EA |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | EA |
| Base - Customary Width Dimension | 0.625 INCH |
| Base - Metric Gross Weight | 4.872 G |
| Base - Metric Width Dimension | 0.015 M |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 0.7543755244990805 ci |
| Unit of Use - Customary Gross Weight | 0.010740921413647235 lbs |
| Unit of Use - Customary Net Weight | 0.008999269542386702 lbs |
| Unit of Use - Metric Cubic Dimension | 12.362 CCM |
| Unit of Use - Metric Net Weight | 4.082 G |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | DISC |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 26.7879590877292 ci |
| Inner - Customary Gross Weight | 0.5019925709949663 lbs |
| Inner - Customary Net Weight | 0.44996347711933515 lbs |
| Inner - Customary Height Dimension | 2.9921259842519685 in |
| Inner - Customary Length Dimension | 2.9921259842519685 in |
| Inner - Customary Width Dimension | 2.9921259842519685 in |
| Inner - Metric Cubic Dimension | 438.976 CCM |
| Inner - Metric Net Weight | 204.1 G |
| Inner - Metric Height Dimension | 0.076 M |
| Inner - Metric Length Dimension | 0.076 M |
| Inner - Metric Width Dimension | 0.076 M |
| Inner - Item Quantity | 50 |
| Inner - Total Unit Quantity | 50 |
| Inner - Previous Packaging Level Quantity | 50 |
| Inner - Item Unit | DISC |
| Inner - Previous Packaging Level Unit | DISC |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 377.18532129977643 ci |
| Shipper - Customary Gross Weight | 5.370460706823618 lbs |
| Shipper - Customary Net Weight | 4.499634771193351 lbs |
| Shipper - Customary Height Dimension | 3.779527559055118 in |
| Shipper - Customary Length Dimension | 15.551181102362206 in |
| Shipper - Customary Width Dimension | 6.417322834645669 in |
| Shipper - Metric Cubic Dimension | 6180.96 CCM |
| Shipper - Metric Weight | 2.436 KG |
| Shipper - Metric Net Weight | 2.041 KG |
| Shipper - Metric Height Dimension | 0.096 M |
| Shipper - Metric Length Dimension | 0.395 M |
| Shipper - Metric Width Dimension | 0.163 M |
| Shipper - Item Quantity | 500 |
| Shipper - Total Unit Quantity | 500 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | DISC |
| Shipper - Unit | CS |
| Pallet - Total Unit Quantity | 104500 |
| Pallet - Previous Packaging Level Quantity | 209 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | DISC |
| Pallet - Pallet Layer Quantity | 11 |
| Pallet - Shipping Container Per Layer Quantity | 19 |
