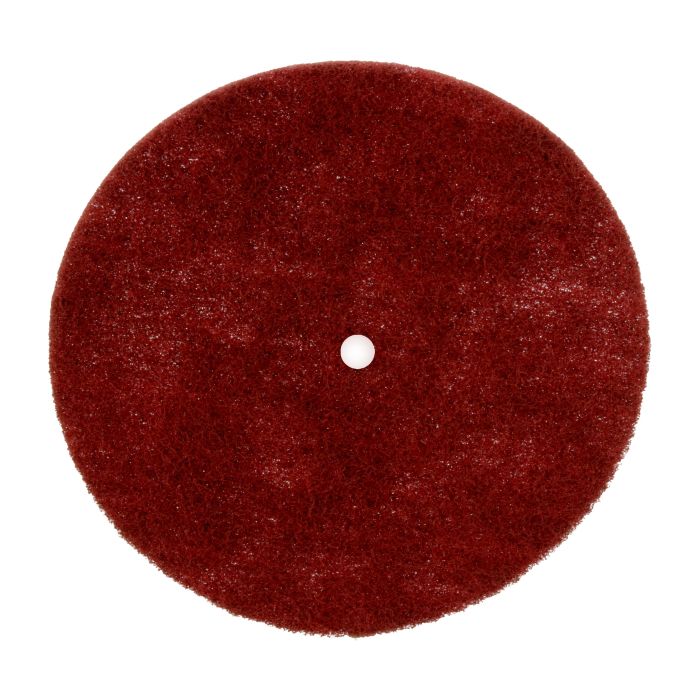

Standard Abrasives™ Buff and Blend HS Disc, 860808, 7 in x 1/2 in A VFN, 10/Bag, 100 ea/Case
| UPC | 00051115359668 |
|---|---|
| 3M ID | 7100037245 |
| Packaging | Bag |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Three Grades Well-Suited for Deburring and Finishing Irregular-Shaped Parts
Among the four Standard Abrasives™ Buff and Blend materials, HS material is the most stiff, durable and aggressive. Given its strength and durability, the Standard Abrasives™ Buff and Blend HS Disc is a good match for irregular-shaped parts, such as pipe threads, the edges of molded glass containers, and non-ferrous die cast molded parts. It removes small, stubborn burrs and cuts sharp to produce a consistent finish. Non-woven construction makes the material responsive to contours and extrusions, so it is unlikely to gouge or mar the substrate while achieving an aggressive cut.
Aluminum oxide abrasive grain bonded to the nylon strands produces a uniform scratch pattern - perfect for satin or grain finishing. Use a Standard Abrasives™ Buff and Blend HS Disc for final finishing on brass, steel, bronze, pewter, and stainless steel, as well as plated plastics. If desired, discs may be ganged on a shaft to form a wheel for off-hand applications.
When a very fine high luster and decorative finish is desirable on pieces such as builders hardware, choose the HS Disc in MED or VFN grade. For applications that may require a faster cut or coarser finish, choose the CRS grade disc. The coarser scratch pattern of the CRS disc also makes it ideal for satin and grain finishing applications, as well as blending and cleaning surface imperfections.
HS Coarse Features and Applications
Produces a uniform, coarse finish similar to Surface Conditioning material Capable of withstanding high contact pressure without folding over when run as a plain disc Easily finishes contoured parts Durable enough to finish edges and welds Satin and grain finishing of metal surfaces Blending and cleaning surface imperfections Blending out tool marks Markets include stainless steel fabricators, plumbing fixtures, metal fabricators, door hardware, food equipment Manufacturers, builder's hardware, aluminum extruded products, and aerospace
Green
HS Medium Features and Applications
Rigid, durable construction accomplishes edge breaking, deburring and finishing finish edges and welds Satin and grain finishing of metal surfaces Cleaning surface contamination Deburring and edge breaking Capable of withstanding high contact pressure without folding over when run as a plain disc Easily finishes contoured parts Produces a clean finish, without irregular scratches and "sparkles" Markets include stainless steel fabricators, plumbing fixtures, door hardware, food equipment manufacturers, aluminum extruded products, aircraft engine manufacturers, orthopedic implants
Blue
HS Very Fine Features and Applications
Excels at light deburring and final finishing of small, irregular shaped parts Light edge breaking on machined or stamped parts Edge radiusing Deburring threaded parts Pre-finish of precious metals prior to polishing Markets include aerospace, aircraft equipment, foundries, machine builders, machine shops, and mold and die shops
Maroon
When your application calls for a lighter-duty disc or if the final finish isn't as critical, we suggest the Standard Abrasives™ Buff and Blend GP or HP Disc. For off-hand and automated finishing processes, we recommend the loftier Buff and Blend HS-F Disc.
Load-Resistant Construction Boosts Life and Performance
Standard Abrasives™ Buff and Blend products are load-resistant to keep you cutting with fresh mineral. The gaps in the open web allow unwanted swarf to escape. Consequently, less debris clogs the abrasive, so the mineral can stay fresh, keep cutting sharp and deliver a consistent cut over the life of the product. As the fibers break down and fresh mineral is exposed, it reduces the likelihood of dull or blunt mineral smearing the surface, contributing to cleaner surfaces and less re-work. Furthermore, manual fatigue that may result from applying heavy pressure to a dull abrasive is reduced.
The Many Benefits of Standard Abrasives™ Buff and Blend Products
Standard Abrasives™ Buff and Blend products invigorate deburring, cleaning, blending and finishing applications by helping operators reduce finishing steps, minimize costs and achieve greater throughput. Each Buff and Blend product and grade offers unique benefits, so operators can choose from a versatile range of options to ensure superior performance on specific applications.
- High strength (HS) Buff and Blend material delivers the best results for light deburring and final finishing
- Dense, stiff construction withstands high pressure without folding over, improving productivity
- Produces a uniform, consistent, smear-free finish on ferrous and non-ferrous metals
- Aluminum Oxide mineral cuts sharp, helps produce a consistent scratch pattern, and works well on many different metals
- Flexible, pliable open web removes burrs and surface contaminants without gouging the substrate
- Open web is load resistant, limiting buildup of debris that can clog the abrasive and prolonging service life
- Center hole discs come in a range of medium to large sizes to meet many different project specifications
- Three grades to choose from for varying degrees of aggressiveness and finish: Coarse (CRS - green), Medium (MED - blue), and Very Fine (VFN - maroon)
| 3M ID | 7100037245 |
|---|---|
| Part number | 860808 |
| Keywords | Standard Abrasive, Buff & Blend, Non-woven disc, non woven disc |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Non-woven Discs |
| Abrasive Material | Aluminum Oxide |
| Backing Material | Non-woven |
| Backing Weight | Non Pertinent |
| Center Hole Diameter (Imperial) | 0.5 in |
| Center Hole Thread Size | Non Pertinent |
| Center Hole Diameter (Metric) | 12.7 mm |
| Color Family | Red |
| Disc Type | Non Pertinent |
| Grit | Non Pertinent |
| Product Color | Maroon |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| Sales Unit | EA |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 0.6 |
| Base - Customary Length Dimension | 7.5 |
| Base - Customary Width Dimension | 7.5 |
| Base - Metric Gross Weight | 16.33 G |
| Base - Metric Height Dimension | 1.524 CM |
| Base - Metric Length Dimension | 19.05 CM |
| Base - Metric Width Dimension | 19.05 CM |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 33.74997498026492 ci |
| Unit of Use - Customary Gross Weight | 0.036001487414790506 lbs |
| Unit of Use - Customary Net Weight | 0.036001487414790506 lbs |
| Unit of Use - Customary Height Dimension | 0.6 in |
| Unit of Use - Customary Length Dimension | 7.5 in |
| Unit of Use - Customary Width Dimension | 7.5 in |
| Unit of Use - Metric Cubic Dimension | 553.063 CCM |
| Unit of Use - Metric Net Weight | 16.33 G |
| Unit of Use - Metric Height Dimension | 1.524 CM |
| Unit of Use - Metric Length Dimension | 19.05 CM |
| Unit of Use - Metric Width Dimension | 19.05 CM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | DISC |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 348.067231567534 ci |
| Inner - Customary Gross Weight | 0.361999034507569 lbs |
| Inner - Customary Net Weight | 0.36001487414790506 lbs |
| Inner - Customary Height Dimension | 6.2204724409448815 in |
| Inner - Customary Length Dimension | 7.480314960629921 in |
| Inner - Customary Width Dimension | 7.480314960629921 in |
| Inner - Metric Cubic Dimension | 5703.8 CCM |
| Inner - Metric Net Weight | 163.3 G |
| Inner - Metric Height Dimension | 0.158 M |
| Inner - Metric Length Dimension | 0.19 M |
| Inner - Metric Width Dimension | 0.19 M |
| Inner - Item Quantity | 10 |
| Inner - Total Unit Quantity | 10 |
| Inner - Previous Packaging Level Quantity | 10 |
| Inner - Item Unit | DISC |
| Inner - Previous Packaging Level Unit | DISC |
| Inner - Unit | BAG |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 2997.992807009236 ci |
| Shipper - Customary Gross Weight | 5.019925709949662 lbs |
| Shipper - Customary Net Weight | 3.600148741479051 lbs |
| Shipper - Customary Height Dimension | 12.716535433070867 in |
| Shipper - Customary Length Dimension | 15.354330708661417 in |
| Shipper - Customary Width Dimension | 15.354330708661417 in |
| Shipper - Metric Cubic Dimension | 49128.3 CCM |
| Shipper - Metric Weight | 2.277 KG |
| Shipper - Metric Net Weight | 1.633 KG |
| Shipper - Metric Height Dimension | 0.323 M |
| Shipper - Metric Length Dimension | 0.39 M |
| Shipper - Metric Width Dimension | 0.39 M |
| Shipper - Item Quantity | 100 |
| Shipper - Total Unit Quantity | 100 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | BAG |
| Shipper - Item Unit | DISC |
| Shipper - Unit | CS |
| Pallet - Billing Unit | EA |
| Pallet - Customary Cubic Dimension | 85311.19424443573 ci |
| Pallet - Customary Gross Weight | 125.66348944538022 lbs |
| Pallet - Customary Net Weight | 64.80267734662291 lbs |
| Pallet - Customary Height Dimension | 42.91338582677165 in |
| Pallet - Customary Length Dimension | 47.63779527559055 in |
| Pallet - Customary Width Dimension | 41.732283464566926 in |
| Pallet - Metric Cubic Dimension | 1.398 M3 |
| Pallet - Metric Net Weight | 29.394 KG |
| Pallet - Metric Height Dimension | 1.09 M |
| Pallet - Metric Length Dimension | 1.21 M |
| Pallet - Metric Width Dimension | 1.06 M |
| Pallet - Item Quantity | 1800 |
| Pallet - Total Unit Quantity | 1800 |
| Pallet - Previous Packaging Level Quantity | 18 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | DISC |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 6 |
