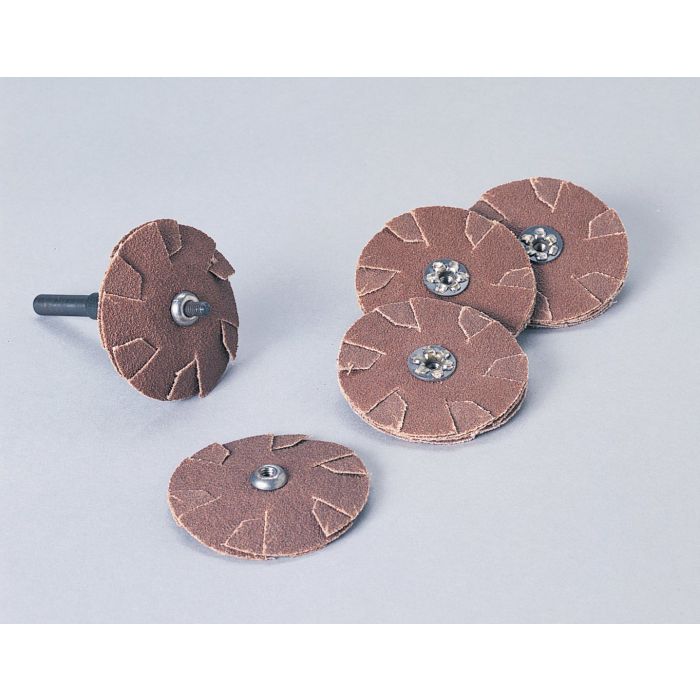

Standard Abrasives™ A/O Slotted Cloth Disc, 724769, 1 in, 180,100/Carton, 1000 ea/Case
| UPC | 00051115414428 |
|---|---|
| 3M ID | 7010368434 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
When you need a coated abrasive product with a lighter touch than a cross pad, the Standard Abrasives™ Aluminum Oxide Slotted Cloth Disc is a good option and provides full coverage. While cross pads are very effective for more aggressive application in coarse grits, the slotted disc works well for less aggressive follow-up steps. The slotted construction makes the disc flexible so that the operator can push it into a hole or tube and achieve full contact with internal diameters. For push-pull applications, we recommend a Standard Abrasives™ Overlap Disc.
Aluminum Oxide for Metals, Rubber, Plastic and CompositesAluminum oxide discs are a good match for operators who desire an all-purpose versatility and economy. The mineral cuts fast while blending and deburring and is a good choice for applications on many substrates including ferrous metals, rubber, plastic and composites.
Running a Slotted Cloth DiscFor the convenience of tool-free disc changes, these slotted discs have either a threaded eyelet arbor hole that screws onto a mandrel and is secured by hand with an attachment bolt, or a built-in 8-32 threaded shaft. A shorter mandrel allows for a steadier application, while a mandrel with extended reach allows access deeper into pipe interiors. Compatible threaded Standard Abrasives™ Mandrels are available separately with thread sizes of 8-32, 3-48, and 14-20. An extended version is available with 8-32 threads.
Quality Standard Abrasives™ Solutions for Industrial ApplicationsThe Standard Abrasives™ brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on their broad offering of high performance products including coated, bonded, and non-woven abrasive lines.
- Slotted construction compresses in push applications for full contact with internal radii, holes, and cylinder walls
- Useful for light deburring, polishing, cleaning, blending and chamfering applications
- Effective on all steels, rubber, plastic and composites
- Choose a disc diameter at least 1/2? smaller than the internal diameter of the workpiece
- Cloth backing provides added durability to resist tearing and fraying
- Compatible Standard Abrasives™ Mandrels are available separately
| 3M ID | 7010368434 |
|---|---|
| Part number | 724769 |
| Keywords | Standard Abrasive Disc, A/O Disc, Slotted Disc, Slotted Cloth Disc, Aluminum Oxide Disc |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Cloth Discs |
| Abrasive Material | Aluminum Oxide |
| Backing Material | Cloth |
| Backing Weight | Non Pertinent |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Center Hole Diameter (Metric) | 0.0 NP |
| Diamond Abrasive Pattern | Non Pertinent |
| Grit | P180 |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 0.857 G |
| Base - Metric Width Dimension | 0.025 M |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 0.4152055548205585 ci |
| Unit of Use - Customary Gross Weight | 0.0018893615869244008 lbs |
| Unit of Use - Customary Net Weight | 0.0010008986703193442 lbs |
| Unit of Use - Metric Cubic Dimension | 6.804 CCM |
| Unit of Use - Metric Net Weight | 0.454 G |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | EACH |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 27.000016598458394 ci |
| Inner - Customary Gross Weight | 0.1521983273219521 lbs |
| Inner - Customary Net Weight | 0.10008986703193443 lbs |
| Inner - Customary Height Dimension | 3.0 in |
| Inner - Customary Length Dimension | 3.0 in |
| Inner - Customary Width Dimension | 3.0 in |
| Inner - Metric Cubic Dimension | 442.451 CCM |
| Inner - Metric Net Weight | 45.4 G |
| Inner - Metric Height Dimension | 7.62 CM |
| Inner - Metric Length Dimension | 7.62 CM |
| Inner - Metric Width Dimension | 7.62 CM |
| Inner - Item Quantity | 100 |
| Inner - Total Unit Quantity | 100 |
| Inner - Previous Packaging Level Quantity | 100 |
| Inner - Item Unit | EACH |
| Inner - Previous Packaging Level Unit | EACH |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 415.2042122981884 ci |
| Shipper - Customary Gross Weight | 1.888499579479258 lbs |
| Shipper - Customary Net Weight | 1.0008986703193443 lbs |
| Shipper - Customary Height Dimension | 3.8748031496062993 in |
| Shipper - Customary Length Dimension | 15.874803149606299 in |
| Shipper - Customary Width Dimension | 6.75 in |
| Shipper - Metric Cubic Dimension | 6803.978 CCM |
| Shipper - Metric Weight | 856.609 G |
| Shipper - Metric Net Weight | 454.0 G |
| Shipper - Metric Height Dimension | 9.842 CM |
| Shipper - Metric Length Dimension | 40.322 CM |
| Shipper - Metric Width Dimension | 17.145 CM |
| Shipper - Item Quantity | 1000 |
| Shipper - Total Unit Quantity | 1000 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | EACH |
| Shipper - Unit | CS |
| Pallet - Total Unit Quantity | 198000 |
| Pallet - Previous Packaging Level Quantity | 198 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | EACH |
| Pallet - Pallet Layer Quantity | 11 |
| Pallet - Shipping Container Per Layer Quantity | 18 |
