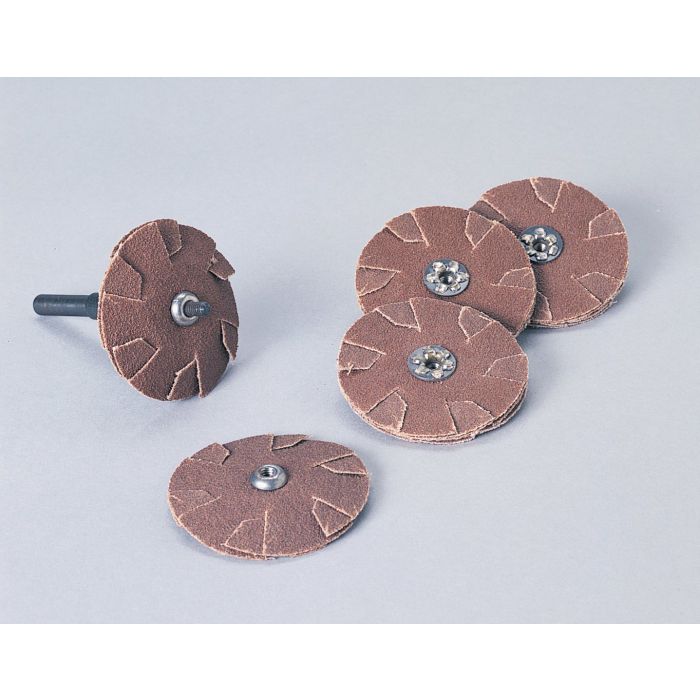

Standard Abrasives™ A/O Slotted Cloth Disc, 704940, 3 in, 80, 100/Carton, 1000 ea/Case
| UPC | 00051115414497 |
|---|---|
| 3M ID | 7010368436 |
| Packaging | Carton |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
When you need a coated abrasive product with a lighter touch than a cross pad, the Standard Abrasives™ Aluminum Oxide Slotted Cloth Disc is a good option and provides full coverage. While cross pads are very effective for more aggressive application in coarse grits, the slotted disc works well for less aggressive follow-up steps. The slotted construction makes the disc flexible so that the operator can push it into a hole or tube and achieve full contact with internal diameters. For push-pull applications, we recommend a Standard Abrasives™ Overlap Disc.
Aluminum Oxide for Metals, Rubber, Plastic and CompositesAluminum oxide discs are a good match for operators who desire an all-purpose versatility and economy. The mineral cuts fast while blending and deburring and is a good choice for applications on many substrates including ferrous metals, rubber, plastic and composites.
Running a Slotted Cloth DiscFor the convenience of tool-free disc changes, these slotted discs have either a threaded eyelet arbor hole that screws onto a mandrel and is secured by hand with an attachment bolt, or a built-in 8-32 threaded shaft. A shorter mandrel allows for a steadier application, while a mandrel with extended reach allows access deeper into pipe interiors. Compatible threaded Standard Abrasives™ Mandrels are available separately with thread sizes of 8-32, 3-48, and 14-20. An extended version is available with 8-32 threads.
Quality Standard Abrasives™ Solutions for Industrial ApplicationsThe Standard Abrasives™ brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on their broad offering of high performance products including coated, bonded, and non-woven abrasive lines.
- Slotted construction compresses in push applications for full contact with internal radii, holes, and cylinder walls
- Useful for light deburring, polishing, cleaning, blending and chamfering applications
- Effective on all steels, rubber, plastic and composites
- Choose a disc diameter at least 1/2? smaller than the internal diameter of the workpiece
- Cloth backing provides added durability to resist tearing and fraying
- Compatible Standard Abrasives™ Mandrels are available separately
| 3M ID | 7010368436 |
|---|---|
| Part number | 704940 |
| Keywords | Standard Abrasive Disc, A/O Disc, Slotted Disc, Slotted Cloth Disc, Aluminum Oxide Disc |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Cloth Discs |
| Abrasive Material | Aluminum Oxide |
| Backing Material | Cloth |
| Backing Weight | Non Pertinent |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Center Hole Diameter (Metric) | 0.0 NP |
| Diamond Abrasive Pattern | Non Pertinent |
| Grit | 80 |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Standard Abrasives™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 6.52 G |
| Base - Metric Width Dimension | 0.076 M |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 1.2988293693122819 ci |
| Unit of Use - Customary Gross Weight | 0.014374139494454019 lbs |
| Unit of Use - Customary Net Weight | 0.011999760930722886 lbs |
| Unit of Use - Metric Cubic Dimension | 21.284 CCM |
| Unit of Use - Metric Net Weight | 5.443 G |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | EACH |
| Unit of Use - Unit | EA |
| Inner - Billing Unit | EA |
| Inner - Customary Cubic Dimension | 108.3322186329412 ci |
| Inner - Customary Gross Weight | 1.3639978115152158 lbs |
| Inner - Customary Net Weight | 1.1999760930722887 lbs |
| Inner - Customary Height Dimension | 4.124803149606299 in |
| Inner - Customary Length Dimension | 5.124803149606299 in |
| Inner - Customary Width Dimension | 5.124803149606299 in |
| Inner - Metric Cubic Dimension | 1775.247 CCM |
| Inner - Metric Net Weight | 544.3 G |
| Inner - Metric Height Dimension | 10.477 CM |
| Inner - Metric Length Dimension | 13.017 CM |
| Inner - Metric Width Dimension | 13.017 CM |
| Inner - Item Quantity | 100 |
| Inner - Total Unit Quantity | 100 |
| Inner - Previous Packaging Level Quantity | 100 |
| Inner - Item Unit | EACH |
| Inner - Previous Packaging Level Unit | EACH |
| Inner - Unit | KAR |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 1298.8373023990143 ci |
| Shipper - Customary Gross Weight | 14.374139494454019 lbs |
| Shipper - Customary Net Weight | 11.999760930722887 lbs |
| Shipper - Customary Height Dimension | 4.624803149606299 in |
| Shipper - Customary Length Dimension | 26.1248031496063 in |
| Shipper - Customary Width Dimension | 10.75 in |
| Shipper - Metric Cubic Dimension | 21284.13 CCM |
| Shipper - Metric Weight | 6.52 KG |
| Shipper - Metric Net Weight | 5.443 KG |
| Shipper - Metric Height Dimension | 11.747 CM |
| Shipper - Metric Length Dimension | 66.357 CM |
| Shipper - Metric Width Dimension | 27.305 CM |
| Shipper - Item Quantity | 1000 |
| Shipper - Total Unit Quantity | 1000 |
| Shipper - Previous Packaging Level Quantity | 10 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | EACH |
| Shipper - Unit | CS |
| Pallet - Billing Unit | EA |
| Pallet - Customary Cubic Dimension | 94147.2004991254 ci |
| Pallet - Customary Gross Weight | 811.9999902114755 lbs |
| Pallet - Customary Net Weight | 647.9870902590359 lbs |
| Pallet - Customary Height Dimension | 46.7 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1542796.2 CCM |
| Pallet - Metric Net Weight | 293.922 KG |
| Pallet - Metric Height Dimension | 118.618 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 54000 |
| Pallet - Total Unit Quantity | 54000 |
| Pallet - Previous Packaging Level Quantity | 54 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | EACH |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 9 |
| Pallet - Shipping Container Per Layer Quantity | 6 |
