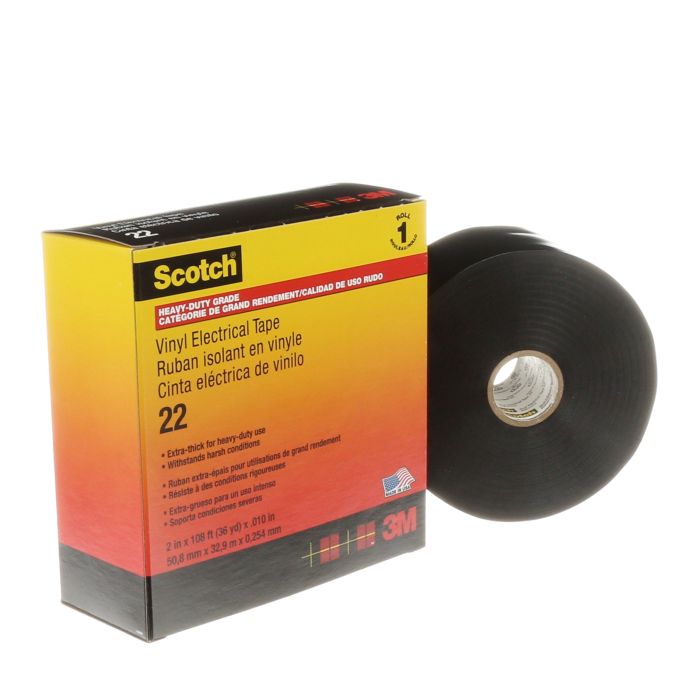

Scotch® Vinyl Electrical Tape 22, 2 in x 36 yd, Black, 1 roll/carton, 12 rolls/Case
Scotch® Vinyl Electrical Tape 22 is a 10 mil thick, premium grade, heavy duty, vinyl electrical tape that's suitable for insulation applications requiring higher mechanical strength and abrasion resistance. The flame retardant tape is designed for low and high voltage bus applications and withstands a temperature range of 15 to 176 °F ( 10 to 80 °C).
Special Price
$55.63
Regular Price
$65.45
| UPC | 00054007100676 |
|---|---|
| 3M ID | 7000031346 |
| Packaging | Roll |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Scotch Vinyl Electrical Tape 22 is a premium grade, 10-mil thick, strong all-weather vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 176F (80C). The tape is for indoor and outdoor use, conformable for cold weather application down to 14F (-10C). It has excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions. The combination of an elastic PVC backing and aggressive pressure-sensitive rubber-based adhesive provides moisture-tight electrical and mechanical protection. This electrical tape is compatible with solid dielectric cable insulations, rubber and synthetic splicing compounds, and epoxy and polyurethane resins.
- Primary electrical insulation for all wire, cable splices and bus applications up to 600 volts
- Used for protective jacketing on high voltage cable splices, repairs and harnessing wires and cables
- Apply in half-lapped layers with some tension for a uniform wind and no tension on the last wrap
- This pressure-sensitive rubber based tape inhibits corrosion of electrical conductors
- For indoor and outdoor applications, temps from 0F to 212F (-18C to 105C), in varying weather
- conditions (including UV exposure)
- Flame Retardant rated per UL 510 and RoHS 2011/65/EU Compliant
- For industrial/occupational use only. Not for consumer sale or use.
| 3M ID | 7000031346 |
|---|---|
| Part number | 22-2X36YD |
| Keywords | scotch heavy duty vinyl electrical tape 22 premium grade 10 mil insulating conformable cold weather applications elastic backing aggressive adhesive moisture tight mechanical protection minimum bulk ul underwriters laboratories listed |
| Global Product Hierarchy | Tapes > Electrical Tapes > Vinyl Electrical Tapes |
| Application | Electrical Maintenance, Insulation |
| Backing (Carrier) Material | PVC |
| Color Family | Black |
| Product Color | Black |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Tape Grade | Professional |
| Trademark 1 | Scotch® |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 0 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 5.25 |
| Base - Customary Length Dimension | 2 |
| Base - Customary Width Dimension | 5.25 |
| Base - Metric Gross Weight | 0.59 KG |
| Base - Metric Height Dimension | 133.35 MM |
| Base - Metric Length Dimension | 50.8 MM |
| Base - Metric Width Dimension | 133.35 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 55.10444091754325 ci |
| Consumer - Customary Gross Weight | 1.3007273468907776 lbs |
| Consumer - Customary Net Weight | 1.3007273468907776 lbs |
| Consumer - Customary Height Dimension | 5.25 in |
| Consumer - Customary Length Dimension | 2.0 in |
| Consumer - Customary Width Dimension | 5.25 in |
| Consumer - Metric Cubic Dimension | 0.903 CDM |
| Consumer - Metric Net Weight | 0.59 KG |
| Consumer - Metric Height Dimension | 133.35 MM |
| Consumer - Metric Length Dimension | 50.8 MM |
| Consumer - Metric Width Dimension | 133.35 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Total Unit Quantity | 1 |
| Consumer - Previous Packaging Level Quantity | 1 |
| Consumer - Item Unit | RLS |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 830.8462089365123 ci |
| Shipper - Customary Gross Weight | 16.199567025344805 lbs |
| Shipper - Customary Net Weight | 15.59550042695824 lbs |
| Shipper - Customary Height Dimension | 6.692913385826771 in |
| Shipper - Customary Length Dimension | 11.141732283464567 in |
| Shipper - Customary Width Dimension | 11.141732283464567 in |
| Shipper - Metric Cubic Dimension | 13615.13 CCM |
| Shipper - Metric Weight | 7.348 KG |
| Shipper - Metric Net Weight | 7.074 KG |
| Shipper - Metric Height Dimension | 17.0 CM |
| Shipper - Metric Length Dimension | 28.3 CM |
| Shipper - Metric Width Dimension | 28.3 CM |
| Shipper - Item Quantity | 12 |
| Shipper - Total Unit Quantity | 12 |
| Shipper - Previous Packaging Level Quantity | 12 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 90803.33121296164 ci |
| Pallet - Customary Gross Weight | 1201.5193289075828 lbs |
| Pallet - Customary Net Weight | 1122.8760307409932 lbs |
| Pallet - Customary Height Dimension | 44.881889763779526 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.488 M3 |
| Pallet - Metric Net Weight | 509.328 KG |
| Pallet - Metric Height Dimension | 1.14 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 864 |
| Pallet - Total Unit Quantity | 864 |
| Pallet - Previous Packaging Level Quantity | 72 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 6 |
| Pallet - Shipping Container Per Layer Quantity | 12 |
