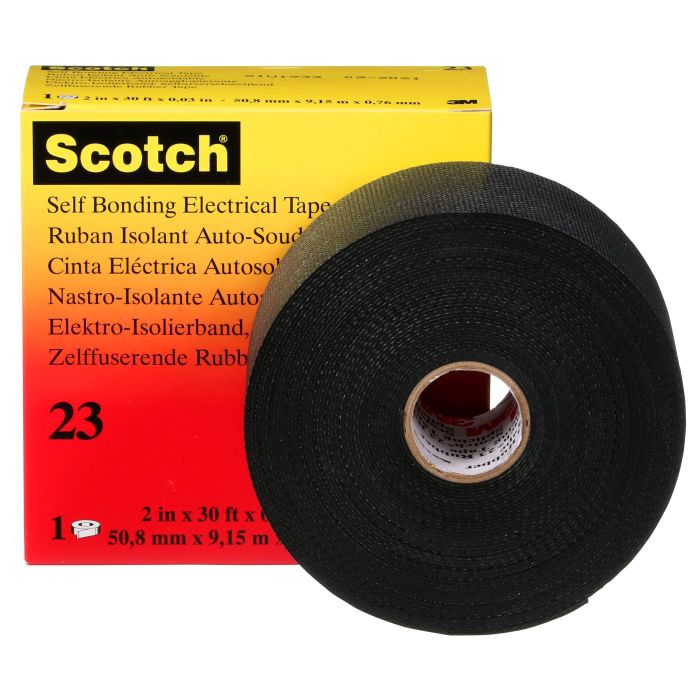

Scotch® Rubber Splicing Tape 23, 2 in x 30 ft, Black, 1 roll/carton, 16 rolls/Case

Scotch® Rubber Splicing Tape 23 by 3M™ is used for primary insulation for cable splice and termination applications and is compatible with solid dielectric cable insulation. The premium-grade adhesive features a polyethylene liner backed by self-fusing Ethylene Propylene Rubber (EPR), making this splicing tape easy to unwind.

This thick adhesive is temperature rated to 194 °F (90 °C) with an emergency overload rating to 266 °F (130 °C). To use, stretch tape and apply in successive half-lapped layers. Continue this process throughout the entire application until the build-up produces a uniform winding.

This tape is halogen-free and has a shelf life of 5 years. For wire splicing and insulation, applications depend on Scotch® Rubber Splicing Tape 23.

Scotch® Rubber Splicing Tape 23 is RoHS and Prop 65 compliant and self-certified to ASTM D4388, Type III up to 69 kV.

• CONFORMABLE: Made with highly conformable ethylene rubber (EPR)
• PRIMARY INSULATION USE: Used for primary insulation for cable splice and termination applications up to 69kV (ASTM D4388, Type III)
• COMPATIBLE: Compatible with solid dielectric cable insulation
• HIGH HEAT USE: Operating temperature rated to 194 °F (90 °C) with an emergency overload rating to 266 °F (130 °C)
• EASY TO HANDLE: Unwinds without sticking due to the polyethylene liner
• COMPLIANCE: RoHS and Prop 65 Compliant, Self-certified to ASTM D4388, Type III up to 69 kV (test report available)
• PRODUCT SPECS: Tape thickness is 30 +/- 3.0 mils (0.76 +/- 0.076 mm), minimum tensile strength is 250 psi (1.7 MPa), and minimum elongation 700%
• COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs
