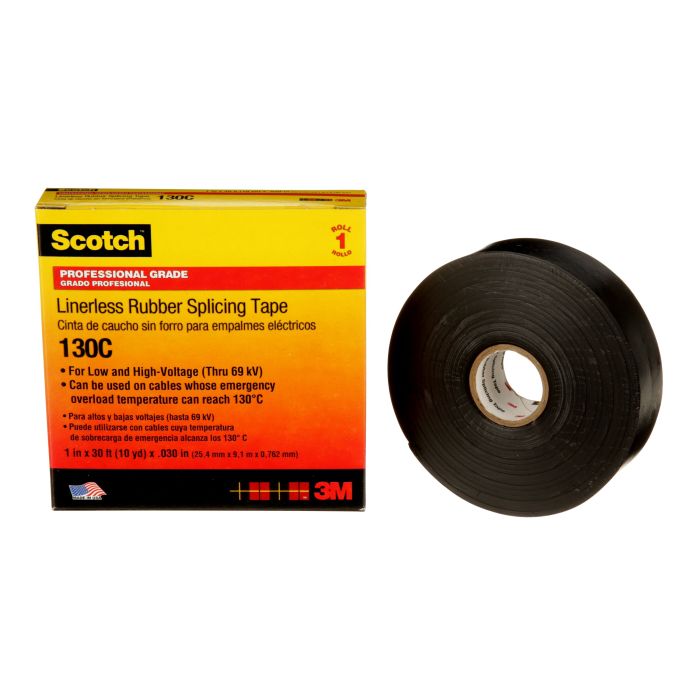

Scotch® Linerless Rubber Splicing Tape 130C, 1 in x 30 ft, Black, 1 roll/carton, 24 rolls/Case
Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
Special Price
$31.42
Regular Price
$36.96
| UPC | 00054007417538 |
|---|---|
| 3M ID | 7000006090 |
| Packaging | Roll |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Add primary electrical insulation to solid, dielectric insulated cables with a 69 kV rating by using Scotch® Tape 130C. Its self-fusing, linerless, ethylene propylene backing paired with a tough, rubber-resin adhesive offers electrical protection and mechanical padding. The impressive conformability of this tape provides void-free buildups and a reliable moisture seal from its excellent mechanical and electrical properties. Scotch® Tape 130C is intended for use on cable primary insulation repair applications, low- and high-voltage bus bar insulation and end-sealing cables. This product is ASTM Approved and RoHS 2011/65/EU Compliant.
- RUBBER-BASED ADHESIVE and the self-fusing, ethylene propylene, rubber backing provides UV resistance.
- EXCELLENT PHYSICAL AND ELECTRICAL PROPERTIES promote moisture seal and void-free buildups.
- DESIGNED FOR USE IN SPLICING and terminating wires and cables. Rated up to 90 degrees C (194 degrees F) continuous operating temperatures and short-term 130 degrees C (266 degrees F) overload service.
- PROVIDES EXCELLENT THERMAL DISSIPATION of splice heat.
- LINERLESS, SELF-BONDING, PRIMARY insulating tape rated through 69 kV (volts). This product can be used for low and high-voltage (through 69 kV) applications.
- Meet ASTM D4388, D4325, and C518. RoHS 2011/65/EU Compliant.
- For industrial/occupational use only. Not for consumer sale or use.
| 3M ID | 7000006090 |
|---|---|
| Part number | 130C-1X30FT |
| Keywords | scotch linerless rubber splicing tape 130c 30-mil premium terminate cable wire conformable mechanical protection resin self fusing ethylene propylene fusible interlayer primary insulation dielectric cables bus bar end sealing jacket repair |
| Global Product Hierarchy | Tapes > Electrical Tapes > Rubber Electrical Tapes |
| Application | Insulation |
| Application/Industry | Appliance and Fixture Commercial Construction Communications Industrial Construction Maintenance and Repair Operations Mining Solar Utility Wind Power |
| Backing (Carrier) Material | Ethylene Rubber |
| Backing (Carrier) Thickness (Imperial) | 30.0 mil |
| Backing (Carrier) Thickness (Metric) | 0.76 mm |
| Color Family | Black |
| Features | Self-sticking UV-resistant Vulcanizing |
| Product Color | Black |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Tape Grade | Premium |
| Trademark 1 | Scotch® |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 0 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 4.567007874 |
| Base - Customary Length Dimension | 1.062992126 |
| Base - Customary Width Dimension | 4.566929134 |
| Base - Metric Gross Weight | 263.1 G |
| Base - Metric Height Dimension | 116.002 MM |
| Base - Metric Length Dimension | 27.0 MM |
| Base - Metric Width Dimension | 116.0 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 22.171024657009944 ci |
| Consumer - Customary Gross Weight | 0.5800362118084129 lbs |
| Consumer - Customary Net Weight | 0.5800362118084129 lbs |
| Consumer - Customary Height Dimension | 4.567007874015748 in |
| Consumer - Customary Length Dimension | 1.062992125984252 in |
| Consumer - Customary Width Dimension | 4.566929133858268 in |
| Consumer - Metric Cubic Dimension | 363.318 CCM |
| Consumer - Metric Net Weight | 263.1 G |
| Consumer - Metric Height Dimension | 116.002 MM |
| Consumer - Metric Length Dimension | 27.0 MM |
| Consumer - Metric Width Dimension | 116.0 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Total Unit Quantity | 1 |
| Consumer - Previous Packaging Level Quantity | 1 |
| Consumer - Item Unit | RLS |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 691.2000221638239 ci |
| Shipper - Customary Gross Weight | 14.901044301075876 lbs |
| Shipper - Customary Net Weight | 13.91998723435317 lbs |
| Shipper - Customary Height Dimension | 7.5 in |
| Shipper - Customary Length Dimension | 9.6 in |
| Shipper - Customary Width Dimension | 9.6 in |
| Shipper - Metric Cubic Dimension | 11326.739 CCM |
| Shipper - Metric Weight | 6.759 KG |
| Shipper - Metric Net Weight | 6.314 KG |
| Shipper - Metric Height Dimension | 19.05 CM |
| Shipper - Metric Length Dimension | 24.384 CM |
| Shipper - Metric Width Dimension | 24.384 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | CTNS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 86043.47917357252 ci |
| Pallet - Customary Gross Weight | 1518.9849864538066 lbs |
| Pallet - Customary Net Weight | 1392.086908340191 lbs |
| Pallet - Customary Height Dimension | 42.51968503937008 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.41 M3 |
| Pallet - Metric Net Weight | 631.44 KG |
| Pallet - Metric Height Dimension | 1.08 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 2400 |
| Pallet - Total Unit Quantity | 2400 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 5 |
| Pallet - Shipping Container Per Layer Quantity | 20 |
