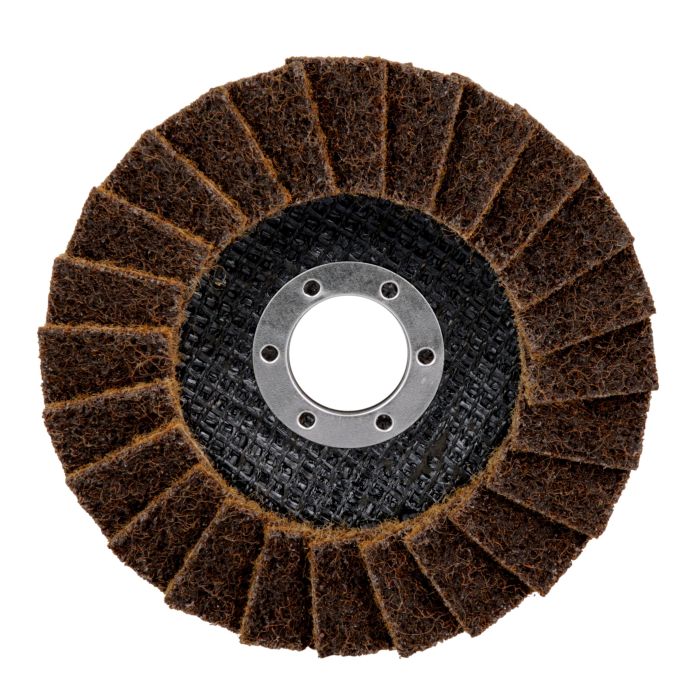

Private Label - Surface Conditioning Flap DiscCRS, 4-1/2 in x 7/8, 29370 20087068
| UPC | 00051115378164 |
|---|---|
| 3M ID | 7010368756 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Ideal for light deburring and blending applications where final finish is important, the Standard Abrasives™ Surface Conditioning Flap Disc delivers a fast cut and consistent finish in a single step. The non-woven nylon material is both durable and load-resistant, making this an especially long-lasting disc. The heat resistant open web makes this an excellent choice for use on aluminum, stainless steel, and titanium.
Recommended ApplicationsThis non-woven aluminum oxide product offers an excellent solution for deburring, edge breaking, blending, cleaning, finishing, and polishing after traditional grinding is done with a Resin Fiber or Flap Disc. Use it for deburring milled surfaces and edges, preparing for anodizing, blending weld seams, removing flash and parting lines, and removing scratches or weld discoloration.
Engineered for Single-Step Efficiency and Extended UtilityFlap discs are three-dimensional discs with overlapping layers of non-woven, scrim-reinforced flaps that fan out from a central hub. The overlapping layers continually expose fresh abrasive mineral for a fast cut, while the cushioning of the flaps creates a consistent, blended finish. The one-step alternative to coated discs, surface conditioning flap discs deburr and finish in a single step, making them a time and cost-saving solution in many typical applications. And, because their overlapping construction allows more abrasive material to be loaded onto the cutting surface, they far outlast typical discs. Flap discs have the flexibility to easily follow curves and contours while delivering less gouging and enhancing operator comfort.
Using a Flap DiscFlap discs are used on a right angle grinder. Flap discs with a 7/8? center hole can be secured onto a right angle sander with a compatible disc retainer nut (sold separately). Flap discs with a 5/8-11 internal thread are designed to be mounted directly to tools with 5/8-11 EXT threaded shafts.
The Standard Abrasives™ Surface Conditioning Flap Disc is designed with a Type 29 conical profile. Flaps are angled to provide more aggressive cutting action, making this profile ideal for stock removal and faster results on edge work, flats and contours.
- Non-woven flaps combine deburring, blending and finishing into one step for greater efficiency
- Constructed for long life, flexibility, heat-resistance and load-resistance
- Excellent choice for aluminum, steel and titanium substrates
- Overlapping flaps increase durability and enhance cut rate
- Open web responds to surface irregularities and minimizes gouging of the part
- Phenolic resin plate provides cushion effect for optimal blending and dampens vibration, reducing operator fatigue and tool wear
- Made with aluminum oxide for fast cut rate and long life
| 3M ID | 7010368756 |
|---|---|
| Keywords | Standard Abrasive, Metalworking |
| Global Product Hierarchy | Abrasives > Abrasive Discs > Flap Discs |
| Center Hole Diameter (Imperial) | 0.875 in |
| Center Hole Thread Size | Non Pertinent |
| Center Hole Diameter (Metric) | 22.225 mm |
| Disc Type | Non Pertinent |
| Grit | Non Pertinent |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | Private Label |
| Country of Origin | Belgium |
| SAP Shelf Life In Days | 3650 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 64.41 G |
| Base - Metric Height Dimension | 22.225 MM |
| Base - Metric Length Dimension | 114.3 MM |
| Base - Metric Width Dimension | 114.3 MM |
| Base - Item Quantity | 1 |
| Base - Unit | EA |
| Unit of Use - Billing Unit | EA |
| Unit of Use - Customary Cubic Dimension | 17.718732287858277 ci |
| Unit of Use - Customary Gross Weight | 0.14199974307327964 lbs |
| Unit of Use - Customary Net Weight | 0.14197769684706116 lbs |
| Unit of Use - Customary Height Dimension | 0.875 in |
| Unit of Use - Customary Length Dimension | 4.5 in |
| Unit of Use - Customary Width Dimension | 4.5 in |
| Unit of Use - Metric Cubic Dimension | 290.358 CCM |
| Unit of Use - Metric Net Weight | 64.4 G |
| Unit of Use - Metric Height Dimension | 22.225 MM |
| Unit of Use - Metric Length Dimension | 114.3 MM |
| Unit of Use - Metric Width Dimension | 114.3 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | EACH |
| Unit of Use - Unit | EA |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 403.6370395575437 ci |
| Shipper - Customary Gross Weight | 3.994776190789982 lbs |
| Shipper - Customary Net Weight | 3.549442421176529 lbs |
| Shipper - Customary Height Dimension | 3.75 in |
| Shipper - Customary Length Dimension | 10.374803149606299 in |
| Shipper - Customary Width Dimension | 10.374803149606299 in |
| Shipper - Metric Cubic Dimension | 6614.426 CCM |
| Shipper - Metric Weight | 1.812 KG |
| Shipper - Metric Net Weight | 1.61 KG |
| Shipper - Metric Height Dimension | 9.525 CM |
| Shipper - Metric Length Dimension | 26.352 CM |
| Shipper - Metric Width Dimension | 26.352 CM |
| Shipper - Item Quantity | 25 |
| Shipper - Total Unit Quantity | 25 |
| Shipper - Previous Packaging Level Quantity | 25 |
| Shipper - Previous Packaging Level Unit | EACH |
| Shipper - Item Unit | EACH |
| Shipper - Unit | CS |
| Pallet - Billing Unit | EA |
| Pallet - Customary Cubic Dimension | 100557.92178513491 ci |
| Pallet - Customary Gross Weight | 802.998516046467 lbs |
| Pallet - Customary Net Weight | 681.4929448658936 lbs |
| Pallet - Customary Height Dimension | 49.87992125984252 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1647849.1 CCM |
| Pallet - Metric Net Weight | 309.12 KG |
| Pallet - Metric Height Dimension | 126.695 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 4800 |
| Pallet - Total Unit Quantity | 4800 |
| Pallet - Previous Packaging Level Quantity | 192 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | EACH |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 12 |
| Pallet - Shipping Container Per Layer Quantity | 16 |
