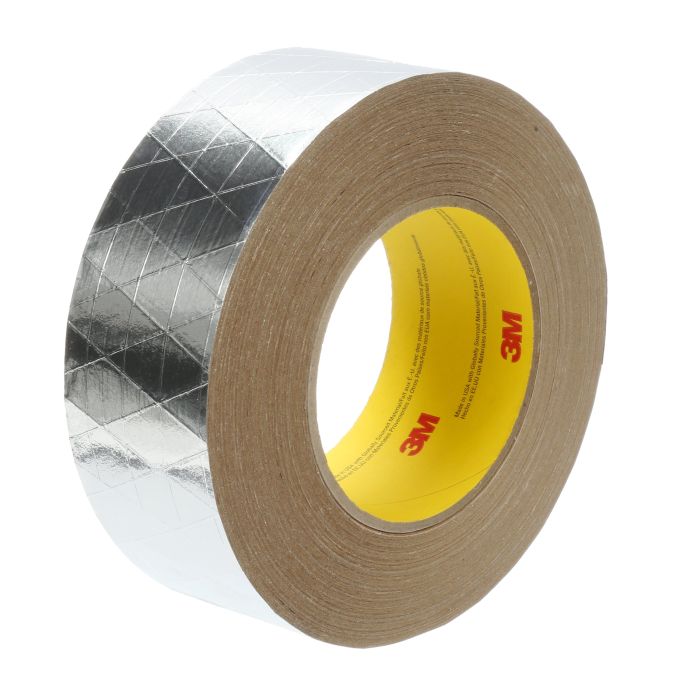

3M™ Venture Tape™ FSK Facing Tape 1525CW, Silver, 48 mm x 45.7 m, 24 Rolls/Case
| UPC | 00750351500147 |
|---|---|
| 3M ID | 7100043849 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Tri-Directional Reinforced Backing
3M™ Venture Tape™ FSK Facing Tape 1525CW is a 5.5 mil tri-directional reinforced tape that excels in demanding temperature and humidity applications. It is comprised of a foil/scrim/kaft laminated backing coated with a cold weather acrylic adhesive. This backing is flexible and conforms well to irregular surfaces and curves. With superior resistance to weathering, mold, UV and environmental conditions, this tape performs extremely well in demanding cold and hot temperature applications. It applies easily to both fibrous and sheet metal ductwork and is easily installed without special tools or application methods.
3M™ Venture Tape™ FSK Facing Tape 1525CW is UL723 Classified (10/10 Flame/Smoke Rating). The facing meets ASTM C1136 type II and IV.
Recommended Applications
Sealing applications for fibrous ductboard, sheet metal ducts and blankets
Vapor seal for reinforced aluminum faced fiberglass or mineral wool thermal insulation
Ultimate in Cold Weather Tapes
3M™ Venture Tape™ FSK Facing Tape 1525CW is coated with a pressure sensitive, cold weather solvent acrylic adhesive specifically designed for cold weather applications, though this adhesive performs well at normal and high temperatures as well. This adhesive features a quick stick at normal temperatures and superior low temperature performance. With a service temperature ranging from -40°F/-40°C to 240°F/116°C, this tape can be applied in a variety of environmental conditions. Once bonded, it will provide good holding power for extended periods with good aging properties that resist lifting and curling.
The Science of Better Adhesion from 3M
Since 1925 when a 3M lab assistant invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each 3M industrial tape and adhesive, like 3M™ Venture Tape™ FSK Facing Tape 1525CW – to help businesses like yours operate faster, better and more efficiently.
- Foil, scrim and kraft laminate backing for use on fibrous and sheet metal ducts
- Cold weather acrylic adhesive is specifically designed for cold weather conditions
- High puncture and tear resistance ensures long life and durability in a variety of applications and conditions
- Flexible backing conforms well to curved or irregular surfaces
- Easy to install on site without special tools or application methods
| 3M ID | 7100043849 |
|---|---|
| Part number | 1525CW |
| Keywords | 3M, 3M Venture Tape FSK Facing Tape 1525CW, adhesive tape, sealing tape, patching insulation, FSK-faced duct wrap, vapor seal, reinforced aluminum faced fiberglass, mineral wool thermal insulation, sheet metal tape, foil scrim kraft lamination, solvent acrylic adhesive, pressure-sensitive adhesive, cold weather tape, UL723 flame\/smoke rating, ASTM specification C1136, durable seal, demanding applications, fibrous ducts, sheet metal ducts, flexible backing, easy removal, tri-directional reinforced tape, mold resistance, UV resistance, environmental resistance, industrial tape, automotive market, construction market, manufacturing market, transportation market, aerospace market, heavy industrial market, industrial maintenance, marine market, OEM market, insulation tape, weather-resistant tape, durable adhesive, high temperature tape, low temperature tape, quick stick, aging resistance. |
| Global Product Hierarchy | Tapes > Foil Tapes > Aluminum Tapes |
| Backing (Carrier) Thickness (Imperial) | 4.0 mil |
| Backing Material | Foil Scrim Kraft |
| Backing (Carrier) Thickness (Metric) | 0.1 mm |
| Color Family | Gray |
| Product Color | Silver |
| Product Number | 1525CW |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Trademark 2 | Venture Tape™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 5.5 |
| Base - Customary Length Dimension | 2 |
| Base - Customary Width Dimension | 5.5 |
| Base - Metric Gross Weight | 0.454 KG |
| Base - Metric Height Dimension | 139.7 MM |
| Base - Metric Length Dimension | 50.8 MM |
| Base - Metric Width Dimension | 139.7 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Gross Weight | 1.0008986703193443 lbs |
| Unit of Use - Customary Net Weight | 0.9810570667227052 lbs |
| Unit of Use - Customary Height Dimension | 5.5 in |
| Unit of Use - Customary Length Dimension | 2.0 in |
| Unit of Use - Customary Width Dimension | 5.5 in |
| Unit of Use - Metric Cubic Dimension | 0.035 FT3 |
| Unit of Use - Metric Net Weight | 0.445 KG |
| Unit of Use - Metric Height Dimension | 139.7 MM |
| Unit of Use - Metric Length Dimension | 50.8 MM |
| Unit of Use - Metric Width Dimension | 139.7 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1895.2595779207306 ci |
| Shipper - Customary Gross Weight | 24.802004495798727 lbs |
| Shipper - Customary Net Weight | 23.51891412988274 lbs |
| Shipper - Customary Height Dimension | 12.401574803149606 in |
| Shipper - Customary Length Dimension | 12.362204724409448 in |
| Shipper - Customary Width Dimension | 12.362204724409448 in |
| Shipper - Metric Cubic Dimension | 31057.74 CCM |
| Shipper - Metric Weight | 11.25 KG |
| Shipper - Metric Net Weight | 10.668 KG |
| Shipper - Metric Height Dimension | 0.315 M |
| Shipper - Metric Length Dimension | 0.314 M |
| Shipper - Metric Width Dimension | 0.314 M |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 83724.5768979727 ci |
| Pallet - Customary Gross Weight | 703.2746163697594 lbs |
| Pallet - Customary Net Weight | 635.010681506834 lbs |
| Pallet - Customary Height Dimension | 42.125984251968504 in |
| Pallet - Customary Length Dimension | 47.63779527559055 in |
| Pallet - Customary Width Dimension | 41.732283464566926 in |
| Pallet - Metric Cubic Dimension | 1.372 M3 |
| Pallet - Metric Net Weight | 288.036 KG |
| Pallet - Metric Height Dimension | 1.07 M |
| Pallet - Metric Length Dimension | 1.21 M |
| Pallet - Metric Width Dimension | 1.06 M |
| Pallet - Item Quantity | 648 |
| Pallet - Total Unit Quantity | 648 |
| Pallet - Previous Packaging Level Quantity | 27 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
