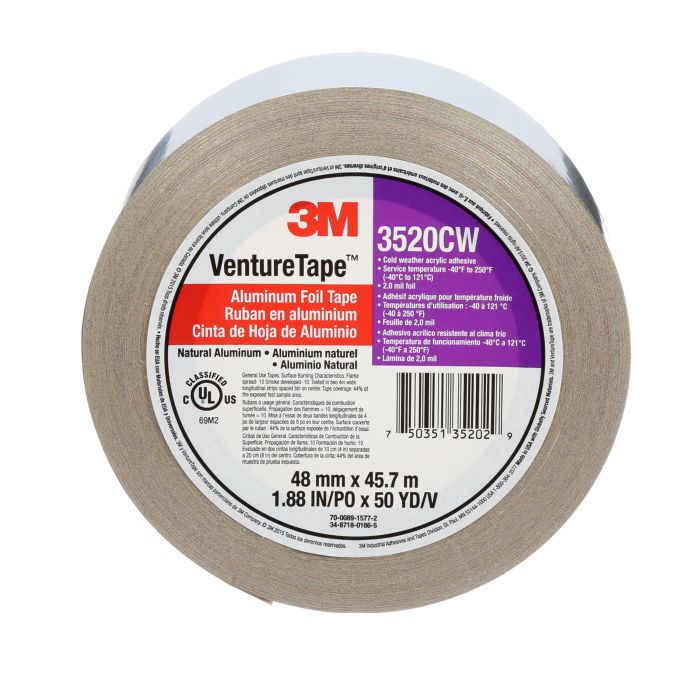

3M™ Venture Tape™ Aluminum Foil Tape 3520CW, Silver, 48 mm x 45.7 m, 3.7 mil, 24 Rolls/Case
| UPC | 00750351352029 |
|---|---|
| 3M ID | 7100043755 |
| Packaging | Roll |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Venture Tape™ Aluminum Foil Tape 3520CW is a conformable, 3.7 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications.
Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and offers reliable performance in temperatures ranging from -40 to 250 °F (-40 to 121 °). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork.
This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time.
This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating.
For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 3520CW provides a durable bond in various masking and sealing operations.
- VERSATILE: Excellent for use on fibrous and sheet metal ducts
- COLD WEATHER USE: Performs well in temperatures ranging from -40 °F to 250 °F due to acrylic adhesive design
- MULTI-PURPOSE: Can be used for a variety of applications, such as insulation, metal duct sealing, and seam sealing
- CONFORMABILITY: Foil backing conforms to curved or irregular surfaces
- EASY INSTALLATION: Easy to tear by hand and install without special tools or application methods
- EFFICIENT: Easy release liner allows quick removal from roll
- FOIL THICKNESS: 2 mil (3.7 mil total thickness)
- UL723 CLASSIFIED: Meets UL723 Flame/Smoke Rating
| 3M ID | 7100043755 |
|---|---|
| Keywords | 3m venture tape aluminum foil 3520CW silver 3.7 mil 48 mm pressure sensitive adhesive cold weather temperature range sheet metal ducts vapor seal heavier construction hvac applications masking automotive appliance repair humidity high heat easy release kraft liner |
| Global Product Hierarchy | Tapes > Foil Tapes > Aluminum Tapes |
| Backing (Carrier) Material | Aluminum Foil |
| Backing (Carrier) Thickness (Imperial) | 2.0 mil |
| Backing Material | Aluminum Foil |
| Backing (Carrier) Thickness (Metric) | 0.05 mm |
| Color Family | Gray |
| Product Color | Silver |
| Product Number | 3520CW |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Trademark 2 | Venture Tape™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 5.125 |
| Base - Customary Length Dimension | 2 |
| Base - Customary Width Dimension | 5.12480315 |
| Base - Metric Gross Weight | 0.576 KG |
| Base - Metric Height Dimension | 130.175 MM |
| Base - Metric Length Dimension | 50.8 MM |
| Base - Metric Width Dimension | 130.17 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 52.54144366556449 ci |
| Consumer - Customary Gross Weight | 1.2698626301848948 lbs |
| Consumer - Customary Net Weight | 1.2610441396974998 lbs |
| Consumer - Customary Height Dimension | 5.125 in |
| Consumer - Customary Length Dimension | 2.0 in |
| Consumer - Customary Width Dimension | 5.124803149606299 in |
| Consumer - Metric Cubic Dimension | 0.861 CDM |
| Consumer - Metric Net Weight | 0.572 KG |
| Consumer - Metric Height Dimension | 130.175 MM |
| Consumer - Metric Length Dimension | 50.8 MM |
| Consumer - Metric Width Dimension | 130.17 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Total Unit Quantity | 1 |
| Consumer - Previous Packaging Level Quantity | 1 |
| Consumer - Item Unit | RLS |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1516.0751797881549 ci |
| Shipper - Customary Gross Weight | 31.54814971865598 lbs |
| Shipper - Customary Net Weight | 30.28710557895848 lbs |
| Shipper - Customary Height Dimension | 12.25 in |
| Shipper - Customary Length Dimension | 11.124803149606299 in |
| Shipper - Customary Width Dimension | 11.124803149606299 in |
| Shipper - Metric Cubic Dimension | 24844.021 CCM |
| Shipper - Metric Weight | 14.31 KG |
| Shipper - Metric Net Weight | 13.738 KG |
| Shipper - Metric Height Dimension | 31.115 CM |
| Shipper - Metric Length Dimension | 28.257 CM |
| Shipper - Metric Width Dimension | 28.257 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 84029.69561844635 ci |
| Pallet - Customary Gross Weight | 1170.9985333307084 lbs |
| Pallet - Customary Net Weight | 1090.3335962198835 lbs |
| Pallet - Customary Height Dimension | 41.732283464566926 in |
| Pallet - Customary Length Dimension | 47.99212598425197 in |
| Pallet - Customary Width Dimension | 41.968503937007874 in |
| Pallet - Metric Cubic Dimension | 1.377 M3 |
| Pallet - Metric Net Weight | 494.567 KG |
| Pallet - Metric Height Dimension | 1.06 M |
| Pallet - Metric Length Dimension | 1.219 M |
| Pallet - Metric Width Dimension | 1.066 M |
| Pallet - Item Quantity | 864 |
| Pallet - Total Unit Quantity | 864 |
| Pallet - Previous Packaging Level Quantity | 36 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 12 |
