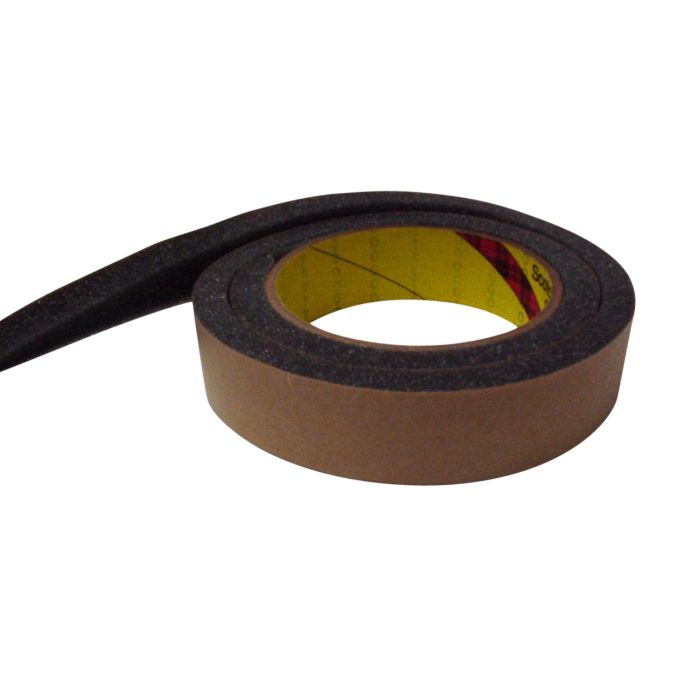

3M™ Urethane Foam Tape 4317, Charcoal, Gray, 375 mil, Roll, Config
| UPC | 00021200925849 |
|---|---|
| 3M ID | 7100072658 |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Seals Out Moisture, Dust and Drafts
3M™ Urethane Foam Tape 4317 is 3/8 in. thick, comprised of a soft conformable, low-density, open-cell foam with a pressure sensitive acrylic adhesive on one side. The adhesive is protected by a silicone treated paper liner. It offers excellent cushioning characteristics while providing high absorbency to seal out moisture, dust and drafts. It can perform under a wide range of temperatures. Special note: Extra care should be taken when handling to avoid damaging tape.
Recommended Applications
Cushion and dampen sound in electronics such as printers, keyboards, computers, aircraft lights and automotive dashboards Register covers Recessed lighting
Door, window and cabinet seals
Excellent Shear Holding Strength with 3M™ Adhesive 430
3M™ Urethane Foam Tape 4317 features 3M™ Adhesive 430. This pressure sensitive, modified acrylic adhesive provides high initial quick-stick to a variety of surfaces and substrates. It has an excellent chemical resistant and shear holding strength, even at elevated temperatures. Adhesive 430 is designed to perform at temperatures up to 180°F (82°C) in the short term and 150°F (70°C) long term.
Protect Sensitive Components
The adhesion of 3M™ Single-Coated Foam Tapes is typically satisfactory within 20 minutes and continues to build with additional time. The adhesive is protected by a thick, silicone treated paper liner and has a firm, high-density foam. This design offers an attractive and clean appearance after application.
What is Open Cell Foam?
Open cell foams are commonly used between component panels where a degree of separation is needed to dampen or prevent vibration, as a thermal insulation barrier and to protect against contamination, but where a measure of airflow is still necessary, such as with electronic components where air flow helps keeps components cool.
- Charcoal gray, 0.375 in. (9.5 mm) soft conformable, low-density, open-cell foam design helps seal out air, dust and light when compressed
- Excellent cushioning characteristics and high absorbency
- Dampens sounds and absorbs vibration when used in electronic applications
- Offers high initial quick-stick to multiple substrates
- Provides excellent shear strength and high temperature performance
| 3M ID | 7100072658 |
|---|---|
| Keywords | 3M, urethane foam tape, 3M Urethane Foam Tape 4317, low-density foam tape, open-cell foam tape, pressure sensitive acrylic adhesive, sound dampening tape, vibration absorption, cushioning tape, moisture sealing tape, dust sealing tape, draft sealing tape, high shear strength, high temperature performance, electronic component protection, automotive applications, aerospace applications, commercial solutions tape, bonding and assembly tape, building maintenance tape, industrial tape, marine applications tape, thermal insulation foam, adhesive foam tape, 3M adhesive 430, foam tape for electronics, tape for door seals, tape for window seals, tape for cabinet seals, printer cushioning tape, keyboard cushioning tape, computer cushioning tape, aircraft light damping, register covers, recessed lighting insulation, tape for sensitive components. |
| Global Product Hierarchy | Tapes > Foam Tapes > General Purpose Foam Tapes |
| Application | Sealing, Window and Door Glazing |
| Backing (Carrier) Material | Urethane |
| Backing (Carrier) Thickness (Imperial) | 375.0 mil |
| Backing (Carrier) Thickness (Metric) | 9.5 mm |
| Color Family | Gray |
| Number of Adhesive Sides | Single-sided |
| Product Color | Charcoal Gray |
| Product Number | 4317 |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 24.0 Month |
| Trademark 1 | 3M™ |
| Trademark 2 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Pallet - Total Unit Quantity | 1 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Pallet Layer Quantity | 1 |
| Pallet - Shipping Container Per Layer Quantity | 1 |
