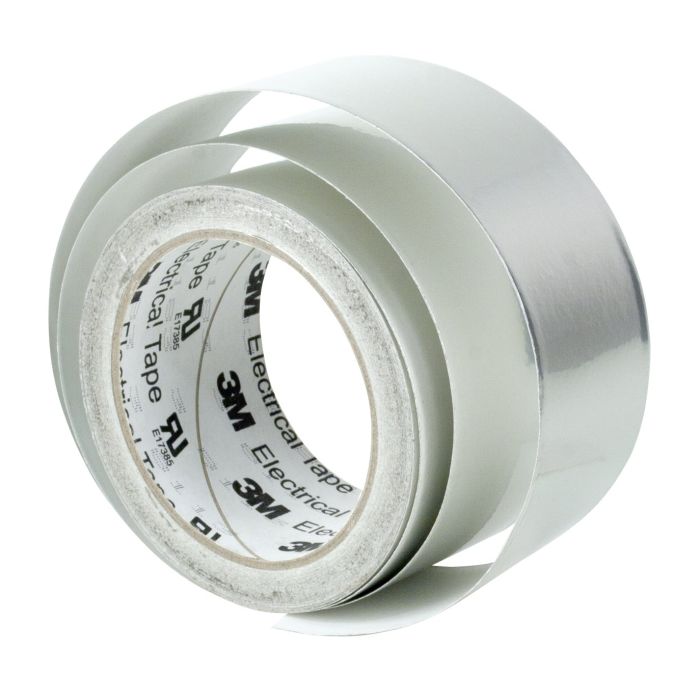

3M™ Tin-Plated Copper Foil EMI Shielding Tape 1183, 3/8 in x 18 yd, 3 in Paper Core, 24 Rolls/Case
3M™ Tin Plated Copper Foil EMI Shielding Tape 1183 is a 2.6 mil thick, acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$33.46
Regular Price
$39.36
| UPC | 00051138493028 |
|---|---|
| 3M ID | 7010398760 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1183 has a deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. This tape has tin plating, which resists oxidation and facilitates soldering to the backing. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This tape withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
- Unique adhesive creates secure contact with the application surface
- Suitable for grounding and EMI shielding equipment, components and shielded rooms
- Flame-retardant
- Comes on a removable liner for easy die-cutting and handling
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010398760 |
|---|---|
| Part number | 1183 3/8"X18YD |
| Keywords | 3M, tin-plated copper foil tape, EMI shielding tape, flame-retardant tape, electrical conductivity tape, removable liner tape, 600V rated tape, UL Listed tape, RoHS compliant tape, grounding tape, EMI shielding equipment, die-cutting tape, automotive shielding tape, energy market tape, electrical equipment tape, power distribution tape, powertrain shielding tape, high-temperature range tape, acrylic adhesive tape, conductive tape, oxidation-resistant tape, solderable tape, deadsoft copper foil tape, pressure-sensitive adhesive tape, EMI shielding components, shielded rooms tape, tape for electronic applications. |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Tin Plated Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 1.6 mil |
| Backing (Carrier) Thickness (Metric) | 0.04 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 76.657 G |
| Base - Metric Height Dimension | 107.95 MM |
| Base - Metric Length Dimension | 9.525 MM |
| Base - Metric Width Dimension | 107.95 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 6.773635594515284 ci |
| Unit of Use - Customary Gross Weight | 0.1689997563230616 lbs |
| Unit of Use - Customary Net Weight | 0.16892920839916245 lbs |
| Unit of Use - Customary Height Dimension | 4.25 in |
| Unit of Use - Customary Length Dimension | 0.375 in |
| Unit of Use - Customary Width Dimension | 4.25 in |
| Unit of Use - Metric Cubic Dimension | 0.111 CDM |
| Unit of Use - Metric Net Weight | 76.625 G |
| Unit of Use - Metric Height Dimension | 107.95 MM |
| Unit of Use - Metric Length Dimension | 9.525 MM |
| Unit of Use - Metric Width Dimension | 107.95 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 734.6616819217891 ci |
| Shipper - Customary Gross Weight | 4.0983934540168745 lbs |
| Shipper - Customary Net Weight | 4.054301001579899 lbs |
| Shipper - Customary Height Dimension | 10.25 in |
| Shipper - Customary Length Dimension | 8.68779527559055 in |
| Shipper - Customary Width Dimension | 8.25 in |
| Shipper - Metric Cubic Dimension | 12038.948 CCM |
| Shipper - Metric Weight | 1.859 KG |
| Shipper - Metric Net Weight | 1.839 KG |
| Shipper - Metric Height Dimension | 26.035 CM |
| Shipper - Metric Length Dimension | 22.067 CM |
| Shipper - Metric Width Dimension | 20.955 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 92736.00200743708 ci |
| Pallet - Customary Gross Weight | 444.9986669749317 lbs |
| Pallet - Customary Net Weight | 405.4301001579899 lbs |
| Pallet - Customary Height Dimension | 46.0 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1519670.8 CCM |
| Pallet - Metric Net Weight | 183.9 KG |
| Pallet - Metric Height Dimension | 116.84 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 2400 |
| Pallet - Total Unit Quantity | 2400 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
