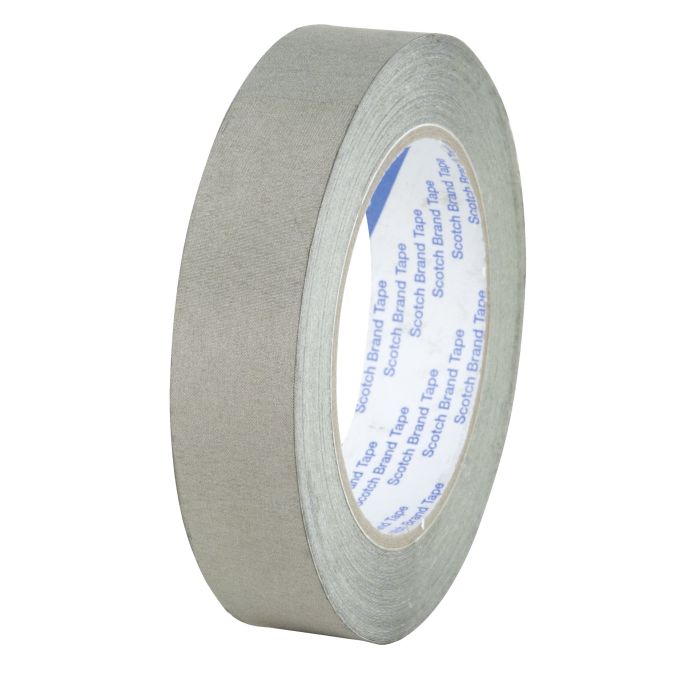

3M™ Rip-stop Fabric EMI Shielding Tape 2191FR, Log Roll, 19.68 in x 21.8 yd (500mm x 20m), 1 Roll/Case
3M™ Tape 2191FR consists of a strong, flexible nickel on copper plated polyester ripstop fabric backing and a unique electrically conductive pressure sensitive acrylic adhesive.
Special Price
$3,592.55
Regular Price
$4,226.53
| UPC | 00051128550731 |
|---|---|
| 3M ID | 7010397433 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Tape 2191FR can be used in many applications such as grounding and EMI shielding in equipment, components, shielded rooms, etc. The unique metallized fabric backing offers the additional benefits of excellent flexibility and conformability, very light weight, and exceptional strength. The fabric backing also minimizes the possibility of finger laceration. This tape has a 5.3 mil nickel on copper plated polyester rip stop fabric backing with a conductive acrylic pressure sensitive adhesive. This tape is linered for easy die cutting, is lightweight, conformable, high strength and is resistant to oxidation, solvents and oils.
- Nickel on copper-plated polyester ripstop woven fabric backing
- Conductive acrylic adhesive
- UL recognized for flame retardancy per UL 510, Product category OANZ2, File 59505
- Supplied on a removable liner for easy handling and die cutting
| 3M ID | 7010397433 |
|---|---|
| Part number | 2191FR 500MMX20M |
| Keywords | 3M, EMI shielding tape, Rip-stop fabric, Nickel on copper-plated polyester, Conductive acrylic adhesive, Flame retardant, UL recognized, UL 510, Grounding tape, Electrically conductive tape, Pressure sensitive adhesive, Die cutting tape, Lightweight EMI tape, Flexible shielding tape, High strength tape, Oxidation resistant tape, Solvent resistant tape, Oil resistant tape, Electrically conductive pressure sensitive adhesive, Metallized fabric backing, Conformable EMI tape, Shielding rooms, Equipment grounding. |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Nickel/Copper-coated Polyester |
| Backing (Carrier) Thickness (Imperial) | 5.2 mil |
| Backing (Carrier) Thickness (Metric) | 0.132 mm |
| Material | Fabric |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Japan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 1.794 KG |
| Base - Metric Length Dimension | 20.0 M |
| Base - Metric Width Dimension | 50.0 LNCM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 2401.854047802584 ci |
| Unit of Use - Customary Gross Weight | 3.9550929835967037 lbs |
| Unit of Use - Customary Net Weight | 2.7579828999328186 lbs |
| Unit of Use - Metric Cubic Dimension | 39359.336 CCM |
| Unit of Use - Metric Net Weight | 1.251 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2401.854047802584 ci |
| Shipper - Customary Gross Weight | 3.9550929835967037 lbs |
| Shipper - Customary Net Weight | 2.7579828999328186 lbs |
| Shipper - Customary Height Dimension | 9.1 in |
| Shipper - Customary Length Dimension | 31.8 in |
| Shipper - Customary Width Dimension | 8.3 in |
| Shipper - Metric Cubic Dimension | 39359.336 CCM |
| Shipper - Metric Weight | 1.794 KG |
| Shipper - Metric Net Weight | 1.251 KG |
| Shipper - Metric Height Dimension | 23.114 CM |
| Shipper - Metric Length Dimension | 80.772 CM |
| Shipper - Metric Width Dimension | 21.082 CM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 82958.39938136569 ci |
| Pallet - Customary Gross Weight | 125.99859208390123 lbs |
| Pallet - Customary Net Weight | 66.19158959838765 lbs |
| Pallet - Customary Height Dimension | 41.15 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1359444.6 CCM |
| Pallet - Metric Net Weight | 30.024 KG |
| Pallet - Metric Height Dimension | 104.521 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 24 |
| Pallet - Total Unit Quantity | 24 |
| Pallet - Previous Packaging Level Quantity | 24 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 6 |
