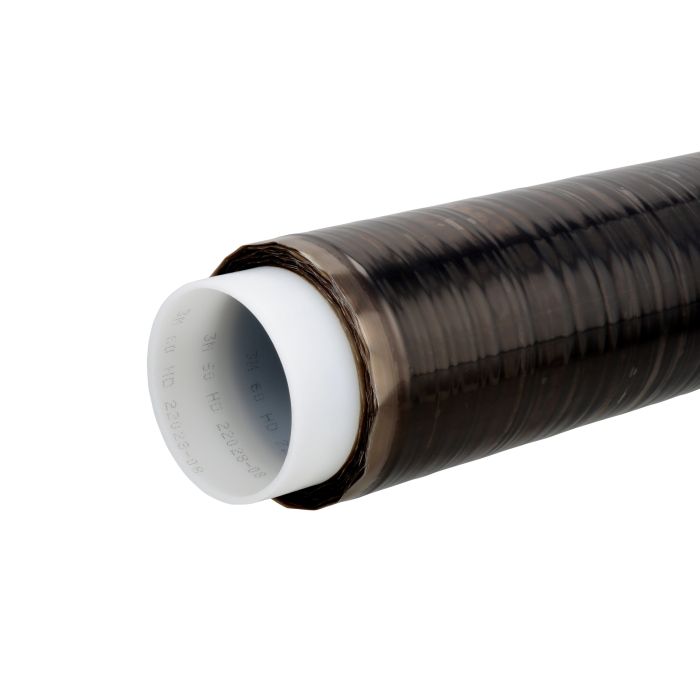

3M™ PTFE Film Electrical Tape 60, Silicone Adhesive, 13.5 in x 36 yd (34,3 cm x 33 m), logroll, Translucent, 1 Roll/Case
| UPC | 00051138492465 |
|---|---|
| 3M ID | 7000009018 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ PTFE Film Electrical Tape 60 is a natural colored, flame retardant tape ideal for use with high-temperature coils, capacitors and wire harness applications.
This durable, 3.9-mil thick tape features a PTFE film 2-mil thick backing coated on one side with a silicone adhesive that is non-corrosive and thermosetting. The adhesive is ready to use, with no moisture, heat or solvents needed for application.
It can handle high temperatures for continuous operation up to 180 °C (356 °F). Tape is UL recognized with UL510A Standard, Category OARC2, File No. E17385, and self-certified to Commercial Item Description is A-A-59474C (2013), Type I, Class 1. For more details on regulatory compliance, visit www.3m.com/regs.
When you need an electrical tape that's able to handle high-temperature applications, rely on 3M™ PTFE Film Electrical Tape 60.
- ELECTRICAL USE: Ideal for use with high-temperature coils, capacitors and wire harness applications
- OPTIMIZED ADHERENCE: Features a PTFE film backing coated on one side with a non-corrosive, thermosetting silicone pressure-sensitive adhesive
- NO ADDITIONAL TOOLS NEEDED: No heat, moisture or other preparation is needed to apply adhesive
- TEMPERATURE RANGE: Continuous operation not exceeding 180 °C (356 °F)
- COMPLIANCE: UL510A Standard, Category OARC2, File No. E17385; self-certified to Commercial Item Description: A-A-59474C (2013), Type I, Class 1
- STABILITY: 5-year shelf life (from date of manufacture)
- COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs
| 3M ID | 7000009018 |
|---|---|
| Part number | 60LOG 13.5"X36YD |
| Keywords | 3m ptfe film electrical tape 60 silicone adhesive 13.5 in logroll translucent flame retardant high temperature range coil wire capacitors breaking strength 600 volts ul listed chemical high arcs resistant shrinkage rubber resin |
| Global Product Hierarchy | Tapes > Electrical Tapes > PTFE Electrical Tapes |
| Backing (Carrier) Material | PTFE Film |
| Color Family | Transparent |
| Product Color | Transparent |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Length Dimension | 36.0 LNYD |
| Base - Customary Width Dimension | 13.5 INCH |
| Base - Metric Gross Weight | 2.848 KG |
| Base - Metric Length Dimension | 32.918 M |
| Base - Metric Width Dimension | 0.342 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 848.3586199455864 ci |
| Unit of Use - Customary Gross Weight | 6.278765227025313 lbs |
| Unit of Use - Customary Net Weight | 5.665880138151354 lbs |
| Unit of Use - Metric Cubic Dimension | 13902.107 CCM |
| Unit of Use - Metric Net Weight | 2.57 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 848.3586199455864 ci |
| Shipper - Customary Gross Weight | 6.278765227025313 lbs |
| Shipper - Customary Net Weight | 5.665880138151354 lbs |
| Shipper - Customary Height Dimension | 6.811023622047244 in |
| Shipper - Customary Length Dimension | 19.409448818897637 in |
| Shipper - Customary Width Dimension | 6.417322834645669 in |
| Shipper - Metric Cubic Dimension | 13902.107 CCM |
| Shipper - Metric Weight | 2.848 KG |
| Shipper - Metric Net Weight | 2.57 KG |
| Shipper - Metric Height Dimension | 0.173 M |
| Shipper - Metric Length Dimension | 0.493 M |
| Shipper - Metric Width Dimension | 0.163 M |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 92389.94855942468 ci |
| Pallet - Customary Gross Weight | 562.1787685714378 lbs |
| Pallet - Customary Net Weight | 475.93393160471373 lbs |
| Pallet - Customary Height Dimension | 45.669291338582674 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.514 M3 |
| Pallet - Metric Net Weight | 215.88 KG |
| Pallet - Metric Height Dimension | 1.16 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 84 |
| Pallet - Total Unit Quantity | 84 |
| Pallet - Previous Packaging Level Quantity | 84 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 6 |
| Pallet - Shipping Container Per Layer Quantity | 14 |
