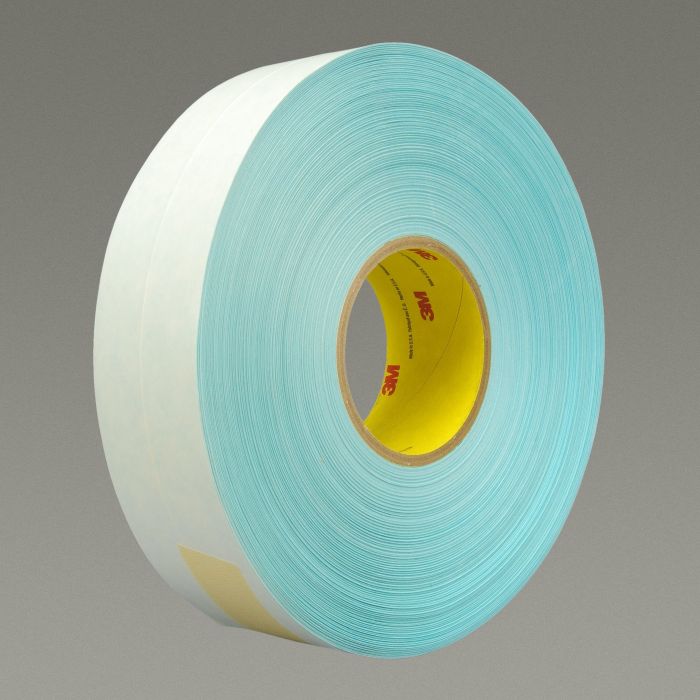

"3M™ Printable Repulpable Single Coated Splicing Tape 9103, Blue, 72 mm x 55 m, 4.1 mil, 12 Roll/Case, Split Liner"

3M™ Printable Repulpable Single Coated Splicing Tape 9103 is a blue kraft paper with a blue, repulpable adhesive on an easy-release liner. It is primarily used for butt splicing coated paper and board at the re-reeler and winders.
Special Price $102.10 Regular Price $120.12
UPC 00051125026673
3M ID 7100027368
Packaging Roll
Sorry, We Are Out of Stock
  • Get up to 15% OFF
  • Exclusive Deals and Discounts
  • Secure Shopping Experience
  • Fast and Friendly Customer Support

Excellent for Use on Lightweight Coated Papers

The combination of high initial adhesion and very good heat resistance makes 3M™ Printable Repulpable Single Coated Splicing Tape 9103 ideal for coated papers and boards. This tape can withstand web temperatures up to 400ºF (204ºC) to help prevent splice failure and reduce down time. The kraft backing is untreated and readily accepts most inks and coatings.

Recommended Applications

Butt splices at the re-reeler prior to off-machine coating of fine papers Butt splices at the winder

Butt splices on web offset printers

Prevents Broke Contamination from Non-Repulpable Material

Repulpable construction means there is no need to remove splice from waste. The tape's water dispersability eliminates the danger of contaminating the paper mill broke with non-repulpable material. It meets or exceeds TAPPI UM-213, procedure A, so it helps to save labor costs and increase the value of waste paper.



All components of the adhesive and backing meet the requirements of indirect food additive regulations as described under 21 CFR 176.170 and 21 CFR 176.180.



Keep the Presses Running and your Customers Coming Back

For decades, 3M products have been at work in paper mills and printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done. From paper web splicing to plate mounting and packaging the finished job, you can rely on 3M for solutions and service throughout your operation.


  • Strong backing for butt splicing
  • Excellent heat resistance up to 400°F (204°C)
  • Repulpable adhesive and liner won’t contaminate paper mill broke so no need to remove splice from waste: meets or exceeds TAPPI UM-213, procedure A
  • Meets the requirements of indirect food additive regulations as described under 21 CFR 176.170 and 21 CFR 176.180
  • Blue color makes splice easily identifiable
  • This is the regular linered version of the tape
More Information
3M ID 7100027368
Keywords 3M, Printable Repulpable Single Coated Splicing Tape, Splicing Tape 9103, butt splicing, coated paper splicing, board splicing, re-reeler, winder, blue kraft paper, repulpable adhesive, paper mill broke, TAPPI UM-213, indirect food additive regulations, 21 CFR 176.170, heat resistance, lightweight coated papers, web offset printers, splice failure prevention, durable backing, high initial adhesion, water dispersability, non-repulpable contamination, increased waste paper value, manufacturing tape, transportation tape, appliance tape, marine tape, paper and print industry, rail industry
Global Product Hierarchy Tapes > Splicing & Tabbing Tapes
Application Butt Splices
Color Family Blue
Number of Adhesive Sides Single-sided
Product Color Blue
Product Number 9103
Product Type simple
Quantity 0
Tape Type Single Coated
Trademark 1 3M™
Country of Origin United States
SAP Shelf Life In Days 547
Base - Billing Unit ROL
Base - Metric Gross Weight 0.85 KG
Base - Metric Height Dimension 140.0 MM
Base - Metric Length Dimension 72.009 MM
Base - Metric Width Dimension 140.0 MM
Base - Item Quantity 1
Base - Unit ROL
Consumer - Billing Unit ROL
Consumer - Customary Cubic Dimension 86.12744784544687 ci
Consumer - Customary Gross Weight 1.8739292285714595 lbs
Consumer - Customary Net Weight 1.730628758151289 lbs
Consumer - Customary Height Dimension 5.511811023622047 in
Consumer - Customary Length Dimension 2.835 in
Consumer - Customary Width Dimension 5.511811023622047 in
Consumer - Metric Cubic Dimension 1411.376 CCM
Consumer - Metric Net Weight 0.785 KG
Consumer - Metric Height Dimension 140.0 MM
Consumer - Metric Length Dimension 72.009 MM
Consumer - Metric Width Dimension 140.0 MM
Consumer - Item Quantity 1
Consumer - Total Unit Quantity 1
Consumer - Previous Packaging Level Quantity 1
Consumer - Item Unit RLS
Consumer - Unit ROL
Shipper - Billing Unit ROL
Shipper - Customary Cubic Dimension 1897.618755867433 ci
Shipper - Customary Gross Weight 22.500378478588605 lbs
Shipper - Customary Net Weight 20.75872660732807 lbs
Shipper - Customary Height Dimension 10.590551181102363 in
Shipper - Customary Length Dimension 13.385826771653543 in
Shipper - Customary Width Dimension 13.385826771653543 in
Shipper - Metric Cubic Dimension 31096.4 CCM
Shipper - Metric Weight 10.206 KG
Shipper - Metric Net Weight 9.416 KG
Shipper - Metric Height Dimension 26.9 CM
Shipper - Metric Length Dimension 34.0 CM
Shipper - Metric Width Dimension 34.0 CM
Shipper - Item Quantity 12
Shipper - Total Unit Quantity 12
Shipper - Previous Packaging Level Quantity 12
Shipper - Previous Packaging Level Unit RLS
Shipper - Item Unit RLS
Shipper - Unit CS
Pallet - Billing Unit ROL
Pallet - Customary Cubic Dimension 95563.18325235076 ci
Pallet - Customary Gross Weight 844.3704641680812 lbs
Pallet - Customary Net Weight 747.3450225805165 lbs
Pallet - Customary Height Dimension 47.24409448818898 in
Pallet - Customary Length Dimension 48.031496062992126 in
Pallet - Customary Width Dimension 42.125984251968504 in
Pallet - Metric Cubic Dimension 1.566 M3
Pallet - Metric Net Weight 338.99 KG
Pallet - Metric Height Dimension 1.2 M
Pallet - Metric Length Dimension 1.22 M
Pallet - Metric Width Dimension 1.07 M
Pallet - Item Quantity 432
Pallet - Total Unit Quantity 432
Pallet - Previous Packaging Level Quantity 36
Pallet - Previous Packaging Level Unit BOX
Pallet - Item Unit RLS
Pallet - Unit PAL
Pallet - Pallet Layer Quantity 4
Pallet - Shipping Container Per Layer Quantity 9
