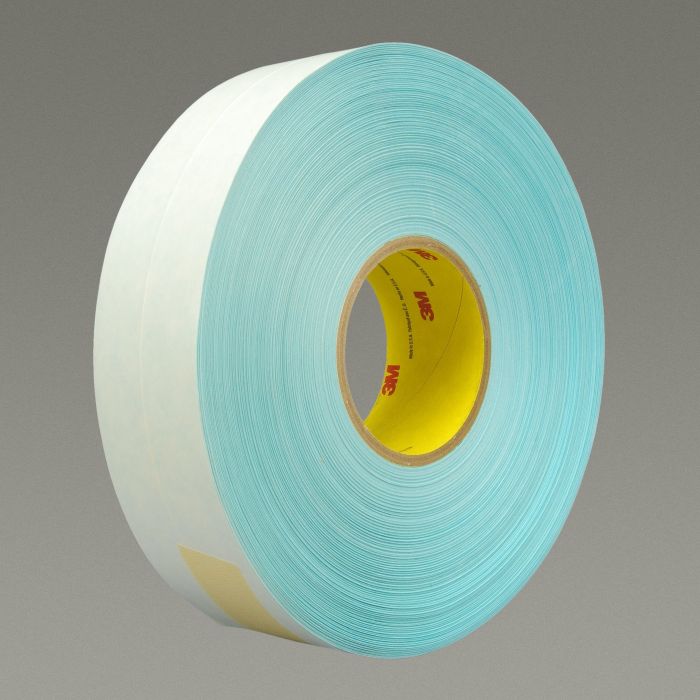

"3M™ Printable Repulpable Single Coated Splicing Tape 9103, Blue, 48 mm x 55 m, 4.1 mil, 24 Roll/Case"
| UPC | 00051131175167 |
|---|---|
| 3M ID | 7100027367 |
| Packaging | Roll |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Excellent for Use on Lightweight Coated Papers
The combination of high initial adhesion and very good heat resistance makes 3M™ Printable Repulpable Single Coated Splicing Tape 9103 ideal for coated papers and boards. This tape can withstand web temperatures up to 400ºF (204ºC) to help prevent splice failure and reduce down time. The kraft backing is untreated and readily accepts most inks and coatings.
Recommended Applications
Butt splices at the re-reeler prior to off-machine coating of fine papers Butt splices at the winder
Butt splices on web offset printers
Prevents Broke Contamination from Non-Repulpable Material
Repulpable construction means there is no need to remove splice from waste. The tape's water dispersability eliminates the danger of contaminating the paper mill broke with non-repulpable material. It meets or exceeds TAPPI UM-213, procedure A, so it helps to save labor costs and increase the value of waste paper.
All components of the adhesive and backing meet the requirements of indirect food additive regulations as described under 21 CFR 176.170 and 21 CFR 176.180.
Keep the Presses Running and your Customers Coming Back
For decades, 3M products have been at work in paper mills and printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done. From paper web splicing to plate mounting and packaging the finished job, you can rely on 3M for solutions and service throughout your operation.
- Strong backing for butt splicing
- Excellent heat resistance up to 400°F (204°C)
- Repulpable adhesive and liner won’t contaminate paper mill broke so no need to remove splice from waste: meets or exceeds TAPPI UM-213, procedure A
- Meets the requirements of indirect food additive regulations as described under 21 CFR 176.170 and 21 CFR 176.180
- Blue color makes splice easily identifiable
- This is the regular linered version of the tape
| 3M ID | 7100027367 |
|---|---|
| Keywords | 3M, Printable Repulpable Single Coated Splicing Tape, Splicing Tape 9103, butt splicing, coated paper splicing, board splicing, re-reeler, winder, blue kraft paper, repulpable adhesive, paper mill broke, TAPPI UM-213, indirect food additive regulations, 21 CFR 176.170, heat resistance, lightweight coated papers, web offset printers, splice failure prevention, durable backing, high initial adhesion, water dispersability, non-repulpable contamination, increased waste paper value, manufacturing tape, transportation tape, appliance tape, marine tape, paper and print industry, rail industry |
| Global Product Hierarchy | Tapes > Splicing & Tabbing Tapes |
| Application | Butt Splices |
| Color Family | Blue |
| Number of Adhesive Sides | Single-sided |
| Product Color | Blue |
| Product Number | 9103 |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 18.0 Month |
| Tape Type | Single Coated |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 547 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 5.392007874 |
| Base - Customary Length Dimension | 1.89 |
| Base - Customary Width Dimension | 5.392125984 |
| Base - Metric Gross Weight | 0.47 KG |
| Base - Metric Height Dimension | 136.957 MM |
| Base - Metric Length Dimension | 48.006 MM |
| Base - Metric Width Dimension | 136.96 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 54.95060005868043 ci |
| Consumer - Customary Gross Weight | 1.0361726322689246 lbs |
| Consumer - Customary Net Weight | 1.0361726322689246 lbs |
| Consumer - Customary Height Dimension | 5.392007874015748 in |
| Consumer - Customary Length Dimension | 1.89 in |
| Consumer - Customary Width Dimension | 5.392125984251969 in |
| Consumer - Metric Cubic Dimension | 900.479 CCM |
| Consumer - Metric Net Weight | 0.47 KG |
| Consumer - Metric Height Dimension | 136.957 MM |
| Consumer - Metric Length Dimension | 48.006 MM |
| Consumer - Metric Width Dimension | 136.96 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Total Unit Quantity | 1 |
| Consumer - Previous Packaging Level Quantity | 1 |
| Consumer - Item Unit | RLS |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1769.8637779165322 ci |
| Shipper - Customary Gross Weight | 25.943999013916393 lbs |
| Shipper - Customary Net Weight | 24.846096948235704 lbs |
| Shipper - Customary Height Dimension | 12.51968503937008 in |
| Shipper - Customary Length Dimension | 11.88976377952756 in |
| Shipper - Customary Width Dimension | 11.88976377952756 in |
| Shipper - Metric Cubic Dimension | 29002.871 CCM |
| Shipper - Metric Weight | 11.768 KG |
| Shipper - Metric Net Weight | 11.27 KG |
| Shipper - Metric Height Dimension | 31.8 CM |
| Shipper - Metric Length Dimension | 30.2 CM |
| Shipper - Metric Width Dimension | 30.2 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 86043.47917357252 ci |
| Pallet - Customary Gross Weight | 970.0339536134613 lbs |
| Pallet - Customary Net Weight | 894.4903548531912 lbs |
| Pallet - Customary Height Dimension | 42.51968503937008 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.41 M3 |
| Pallet - Metric Net Weight | 405.734 KG |
| Pallet - Metric Height Dimension | 1.08 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 864 |
| Pallet - Total Unit Quantity | 864 |
| Pallet - Previous Packaging Level Quantity | 36 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 12 |
