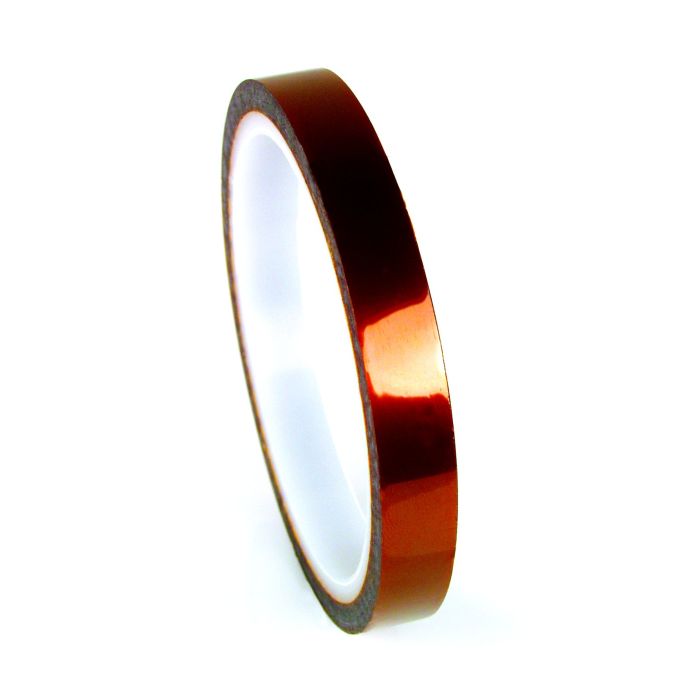

3M™ Polyimide Film Electrical Tape 98C-1, 500 mm x 33 m, 1 Roll/Case
3M™ Polyimide Film Electrical Tape 98C-1 is an amber UL recognized flame retardant, 2.6-mil (0.066 mm) thick tape composed of a 1-mil (0.025 mm) thick polyimide film backing coated on one side with a non-corrosive, silicone pressure-sensitive adhesive
Special Price
$1,049.86
Regular Price
$1,235.12
| UPC | 00051138985080 |
|---|---|
| 3M ID | 7000038309 |
| Packaging | Roll |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Polyimide Film Electrical Tape 98C-1 is a polyimide film tape that has a silicone adhesive. It is commonly used in wrapping coils, capacitors, wire harnesses, transformers, anchoring leads and as a solder masking tape during PCB assembly. UL rated 220°C (428°F) and RoHS Compliant.
- Nominal thickness: 0.066 mm (2.6 mil)
- Pressure-sensitive silicone adhesive with polyimide film backing
- UL Recognized flame retardant
- UL Recognized 220°C temperature rating
- 1.5 year shelf-life when stored per 3M recommended conditions
- RoHS Compliant
| 3M ID | 7000038309 |
|---|---|
| Part number | 98C-1LOG 500MMX33M |
| Keywords | Electrical Tape, Tape 98C-1, Electrical Tape 98C-1, Polyimide Film Electrical Tape, high temperature tape, insulation tape, solder masking tape, coil tape, wire harness tape, PI tape |
| Global Product Hierarchy | Tapes > Electrical Tapes > Polyimide Electrical Tapes |
| Application | Insulation |
| Backing (Carrier) Material | Polyimide Film |
| Backing (Carrier) Thickness (Metric) | 0.025 mm |
| Color Family | Yellow |
| Product Color | Amber |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Trademark 1 | 3M™ |
| Country of Origin | China |
| SAP Shelf Life In Days | 365 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 3.58 KG |
| Base - Metric Height Dimension | 0.16001 M |
| Base - Metric Length Dimension | 0.49 M |
| Base - Metric Width Dimension | 0.165 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 1827.417040660853 ci |
| Consumer - Customary Gross Weight | 7.892548986218618 lbs |
| Consumer - Customary Net Weight | 7.497921536907686 lbs |
| Consumer - Metric Cubic Dimension | 29.946 CDM |
| Consumer - Metric Net Weight | 3.401 KG |
| Consumer - Item Quantity | 1 |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1827.417040660853 ci |
| Shipper - Customary Gross Weight | 7.892548986218618 lbs |
| Shipper - Customary Net Weight | 7.497921536907686 lbs |
| Shipper - Customary Height Dimension | 9.05511811023622 in |
| Shipper - Customary Length Dimension | 24.409448818897637 in |
| Shipper - Customary Width Dimension | 8.26771653543307 in |
| Shipper - Metric Cubic Dimension | 29.946 CDM |
| Shipper - Metric Weight | 3.58 KG |
| Shipper - Metric Net Weight | 3.401 KG |
| Shipper - Metric Height Dimension | 230.0 MM |
| Shipper - Metric Length Dimension | 620.0 MM |
| Shipper - Metric Width Dimension | 210.0 MM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 85006.07552396208 ci |
| Pallet - Customary Gross Weight | 154.3235835294143 lbs |
| Pallet - Customary Net Weight | 112.4688230536153 lbs |
| Pallet - Customary Height Dimension | 41.53543307086614 in |
| Pallet - Customary Length Dimension | 47.24409448818898 in |
| Pallet - Customary Width Dimension | 43.30708661417323 in |
| Pallet - Metric Cubic Dimension | 1.393 M3 |
| Pallet - Metric Net Weight | 51.015 KG |
| Pallet - Metric Height Dimension | 1055.0 MM |
| Pallet - Metric Length Dimension | 1200.0 MM |
| Pallet - Metric Width Dimension | 1100.0 MM |
| Pallet - Item Quantity | 15 |
| Pallet - Total Unit Quantity | 84 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 6 |
| Pallet - Shipping Container Per Layer Quantity | 14 |
