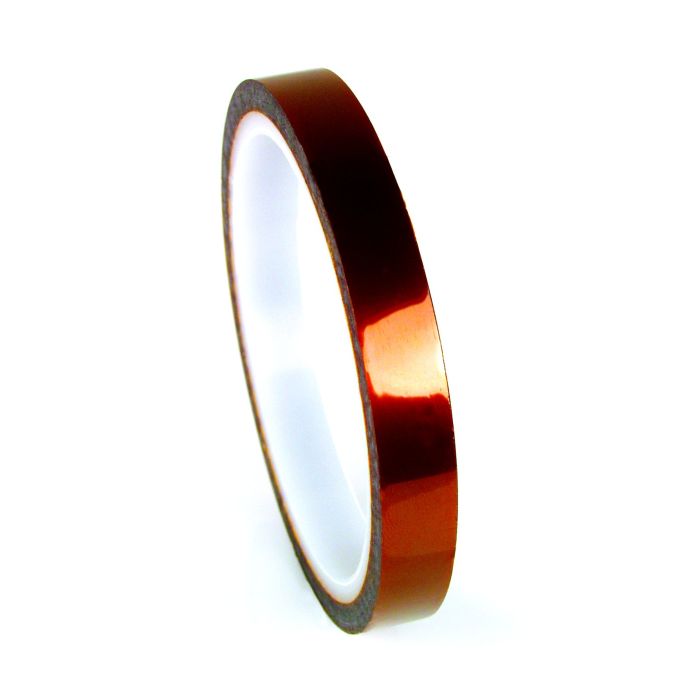

3M™ Polyimide Film Electrical Tape 98C-1, 1/2 in X 36 yds, 24 Rolls/Case
3M™ Polyimide Film Electrical Tape 98C-1 is an amber UL recognized flame retardant, 2.6-mil (0.066 mm) thick tape composed of a 1-mil (0.025 mm) thick polyimide film backing coated on one side with a non-corrosive, silicone pressure-sensitive adhesive
Special Price
$35.62
Regular Price
$41.91
| UPC | 00051128602768 |
|---|---|
| 3M ID | 7010321042 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Polyimide Film Electrical Tape 98C-1 is a polyimide film tape that has a silicone adhesive. It is commonly used in wrapping coils, capacitors, wire harnesses, transformers, anchoring leads and as a solder masking tape during PCB assembly. UL rated 220°C (428°F) and RoHS Compliant.
- Nominal thickness: 0.066 mm (2.6 mil)
- Pressure-sensitive silicone adhesive with polyimide film backing
- UL Recognized flame retardant
- UL Recognized 220°C temperature rating
- 1.5 year shelf-life when stored per 3M recommended conditions
- RoHS Compliant
| 3M ID | 7010321042 |
|---|---|
| Part number | 98C-1 1/2"X36YD |
| Keywords | Electrical Tape, Tape 98C-1, Electrical Tape 98C-1, Polyimide Film Electrical Tape, high temperature tape, insulation tape, solder masking tape, coil tape, wire harness tape, PI tape |
| Global Product Hierarchy | Tapes > Electrical Tapes > Polyimide Electrical Tapes |
| Backing (Carrier) Material | Polyimide Film |
| Product Color | Amber |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | China |
| SAP Shelf Life In Days | 1095 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 46.72 G |
| Base - Metric Height Dimension | 98.73 MM |
| Base - Metric Length Dimension | 12.7 MM |
| Base - Metric Width Dimension | 98.73 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 7.554434400207383 ci |
| Unit of Use - Customary Gross Weight | 0.10299996889277481 lbs |
| Unit of Use - Customary Net Weight | 0.10295587644033782 lbs |
| Unit of Use - Customary Height Dimension | 3.887007874015748 in |
| Unit of Use - Customary Length Dimension | 0.5 in |
| Unit of Use - Customary Width Dimension | 3.887007874015748 in |
| Unit of Use - Metric Cubic Dimension | 123.795 CCM |
| Unit of Use - Metric Net Weight | 46.7 G |
| Unit of Use - Metric Height Dimension | 98.73 MM |
| Unit of Use - Metric Length Dimension | 12.7 MM |
| Unit of Use - Metric Width Dimension | 98.73 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1027.1454361806361 ci |
| Shipper - Customary Gross Weight | 2.4850506193479402 lbs |
| Shipper - Customary Net Weight | 2.4709410345681078 lbs |
| Shipper - Customary Height Dimension | 14.606299212598426 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 16831.898 CCM |
| Shipper - Metric Weight | 1127.2 G |
| Shipper - Metric Net Weight | 1120.8 G |
| Shipper - Metric Height Dimension | 37.1 CM |
| Shipper - Metric Length Dimension | 21.3 CM |
| Shipper - Metric Width Dimension | 21.3 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 98797.44168937157 ci |
| Pallet - Customary Gross Weight | 220.46226218487757 lbs |
| Pallet - Customary Net Weight | 185.3205775926081 lbs |
| Pallet - Customary Height Dimension | 48.818897637795274 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.619 M3 |
| Pallet - Metric Net Weight | 84.06 KG |
| Pallet - Metric Height Dimension | 1.24 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 1800 |
| Pallet - Total Unit Quantity | 1800 |
| Pallet - Previous Packaging Level Quantity | 75 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
