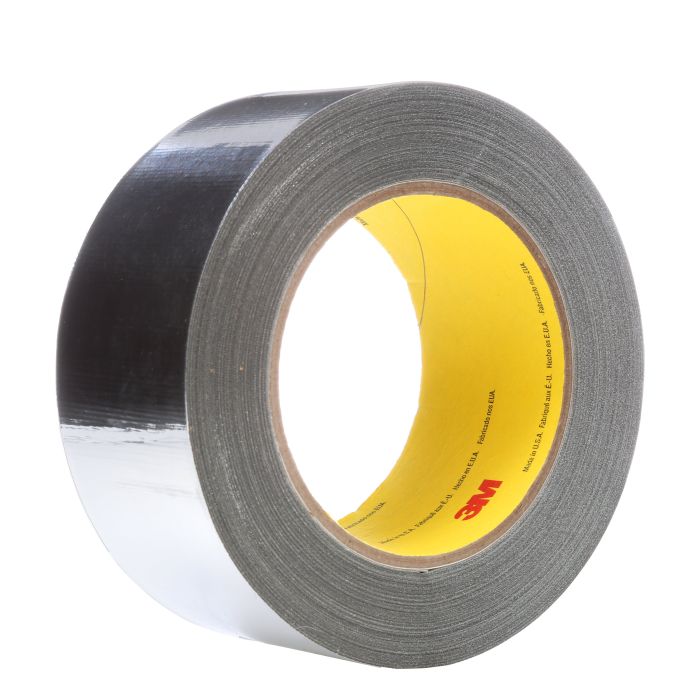

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 2 in x 36 yd, 7.3 mil, 24 Roll/Case
3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.
Special Price
$399.42
Regular Price
$469.91
| UPC | 00021200172953 |
|---|---|
| 3M ID | 7000028867 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Strength with Combined Technology
3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a strong and flexible tape with high tensile strength, puncture and tear resistance. With a pressure sensitive silicone adhesive, it adheres well to silicone surfaces and over irregular or uneven substrates. This tape is light and heat reflective, plus it resists flame, moisture, weather and UV degradation. It is a chemical resistant, thermally conductive tape that performs consistently at temperatures ranging from -65°F/-54°C to 600°F/316°C. 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 meets the requirements of F.A.R. 25.853 (a). For applications requiring a die-cut, 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363L is available with a liner.
Recommended Applications
Heat reflective wrap over insulation cables, instruments or other high temperature sensitive materials Ideal for industrial applications that will be exposed to movement and vibration Bundling wire harnesses
High temperature/performance applications in the aerospace, automotive and industrial industries
- HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
- HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
- MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
- ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
- VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
- POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
| 3M ID | 7000028867 |
|---|---|
| Part number | 363 |
| Keywords | 3m heat tape aluminum foil high temperature ductwork temp reflective shield metal duct ducts stainless steel resistant proof thermal wrap insulation aluminium heating fireproof metallic insulated pipes residue electronic muffler fiberglass wires |
| Global Product Hierarchy | Tapes > Cloth & Duct Tapes > Cloth Tapes |
| Application | Shielding Cables Against Heat, Shielding Wire Harnesses Against Heat |
| Backing (Carrier) Material | Aluminum Foil/Glass Cloth |
| Backing (Carrier) Thickness (Imperial) | 2.4 mil |
| Backing (Carrier) Thickness (Metric) | 0.06 mm |
| Color Family | Gray |
| Product Color | Silver |
| Product Number | 363 |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 36.0 Month |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1095 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 2 |
| Base - Customary Length Dimension | 4.33 |
| Base - Customary Width Dimension | 4.32992126 |
| Base - Metric Gross Weight | 0.557 KG |
| Base - Metric Height Dimension | 50.8 MM |
| Base - Metric Length Dimension | 109.982 MM |
| Base - Metric Width Dimension | 109.98 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 37.46857887416562 ci |
| Unit of Use - Customary Gross Weight | 1.2279748003697681 lbs |
| Unit of Use - Customary Net Weight | 0.5180863161344623 lbs |
| Unit of Use - Customary Height Dimension | 2.0 in |
| Unit of Use - Customary Length Dimension | 4.33 in |
| Unit of Use - Customary Width Dimension | 4.32992125984252 in |
| Unit of Use - Metric Cubic Dimension | 0.614 CDM |
| Unit of Use - Metric Net Weight | 0.235 KG |
| Unit of Use - Metric Height Dimension | 50.8 MM |
| Unit of Use - Metric Length Dimension | 109.982 MM |
| Unit of Use - Metric Width Dimension | 109.98 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2108.8048475309547 ci |
| Shipper - Customary Gross Weight | 30.450247652975293 lbs |
| Shipper - Customary Net Weight | 12.451708568201886 lbs |
| Shipper - Customary Height Dimension | 13.976377952755906 in |
| Shipper - Customary Length Dimension | 12.283464566929133 in |
| Shipper - Customary Width Dimension | 12.283464566929133 in |
| Shipper - Metric Cubic Dimension | 34557.12 CCM |
| Shipper - Metric Weight | 13.812 KG |
| Shipper - Metric Net Weight | 5.648 KG |
| Shipper - Metric Height Dimension | 0.355 M |
| Shipper - Metric Length Dimension | 0.312 M |
| Shipper - Metric Width Dimension | 0.312 M |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 93122.23348856147 ci |
| Pallet - Customary Gross Weight | 853.1889546554762 lbs |
| Pallet - Customary Net Weight | 336.1961313414509 lbs |
| Pallet - Customary Height Dimension | 46.8503937007874 in |
| Pallet - Customary Length Dimension | 47.63779527559055 in |
| Pallet - Customary Width Dimension | 41.732283464566926 in |
| Pallet - Metric Cubic Dimension | 1.526 M3 |
| Pallet - Metric Net Weight | 152.496 KG |
| Pallet - Metric Height Dimension | 1.19 M |
| Pallet - Metric Length Dimension | 1.21 M |
| Pallet - Metric Width Dimension | 1.06 M |
| Pallet - Item Quantity | 648 |
| Pallet - Total Unit Quantity | 648 |
| Pallet - Previous Packaging Level Quantity | 27 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
