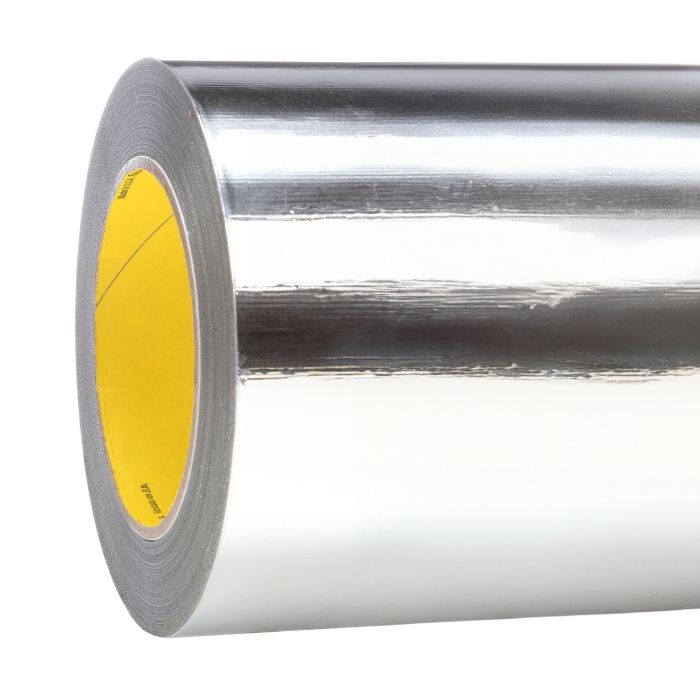

3M™ High Temperature Aluminum Foil Glass Cloth Tape 363, Silver, 18 in x 36 yd, 7.3 mil, 1 Roll/Case
3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.
Special Price
$3,594.77
Regular Price
$4,229.14
| UPC | 00021200428494 |
|---|---|
| 3M ID | 7000001220 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M High Temperature Aluminum Foil/Glass Cloth Tape 363 is a versatile tape featuring high tensile strength and outstanding puncture/tear-resistance. Heat-reflective aluminum is supported by robust glass cloth to create a strong, conformable backing. Coated with a pressure-sensitive silicone adhesive, it adheres well to irregular and uneven surfaces. Together, this tape resists flame, moisture, weather, and UV degradation, with exceptional thermal conductivity that allows it to perform consistently at temperatures ranging from -65–600 °F (-54–316 °C). High tensile strength, heat-resistance, and reflectivity allows 3M High Temperature Aluminum Foil/Glass Cloth Tape 363 to excel in aerospace, automotive, and general industrial applications.
- HIGH TENSILE STRENGTH: This glass cloth reinforced foil tape offers superior puncture, fracture, and tear resistance
- HOLDS IN INTENSE CONDITIONS: Resists flame/chemical exposure and performs continuously in temperatures ranging from -65 °F(-54 °C) to 600 °F(316 °C)
- MAXIMUM CONFORMABILITY: Lightweight, flexible construction helps it conform to curved and irregular surfaces
- ALUMINIUM FOIL BACKING: Thermally conductive and reflective metal backing assists with heat shielding
- VERSATILE ADHESIVE: Silicone adhesive adheres to difficult surfaces and removes cleanly after use
- POTENTIAL APPLICATIONS: Heat reflective wrap over insulation cables, instruments, or high temperature materials, temporary surface protection for welding and soldering, and applications that are exposed to movement and vibration
| 3M ID | 7000001220 |
|---|---|
| Part number | 363 |
| Keywords | 3m heat tape aluminum foil high temperature ductwork temp reflective shield metal duct ducts stainless steel resistant proof thermal wrap insulation aluminium heating fireproof metallic insulated pipes residue electronic muffler fiberglass wires |
| Global Product Hierarchy | Tapes > Cloth & Duct Tapes > Cloth Tapes |
| Application | Shielding Cables Against Heat, Shielding Wire Harnesses Against Heat |
| Backing (Carrier) Material | Aluminum Foil/Glass Cloth |
| Backing (Carrier) Thickness (Imperial) | 2.4 mil |
| Backing (Carrier) Thickness (Metric) | 0.06 mm |
| Color Family | Gray |
| Product Color | Silver |
| Product Number | 363 |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 36.0 Month |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 1095 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 5.083 KG |
| Base - Metric Length Dimension | 32.918 M |
| Base - Metric Width Dimension | 0.457 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 1358.419055420788 ci |
| Unit of Use - Customary Gross Weight | 11.206096786857328 lbs |
| Unit of Use - Customary Net Weight | 10.721079810050597 lbs |
| Unit of Use - Metric Cubic Dimension | 22260.5 CCM |
| Unit of Use - Metric Net Weight | 4.863 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1358.419055420788 ci |
| Shipper - Customary Gross Weight | 11.206096786857328 lbs |
| Shipper - Customary Net Weight | 10.721079810050597 lbs |
| Shipper - Customary Height Dimension | 19.68503937007874 in |
| Shipper - Customary Length Dimension | 8.307086614173228 in |
| Shipper - Customary Width Dimension | 8.307086614173228 in |
| Shipper - Metric Cubic Dimension | 22260.5 CCM |
| Shipper - Metric Weight | 5.083 KG |
| Shipper - Metric Net Weight | 4.863 KG |
| Shipper - Metric Height Dimension | 50.0 CM |
| Shipper - Metric Length Dimension | 21.1 CM |
| Shipper - Metric Width Dimension | 21.1 CM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 89216.7138664986 ci |
| Pallet - Customary Gross Weight | 648.15905082354 lbs |
| Pallet - Customary Net Weight | 536.0539905025298 lbs |
| Pallet - Customary Height Dimension | 44.09448818897638 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.462 M3 |
| Pallet - Metric Net Weight | 243.15 KG |
| Pallet - Metric Height Dimension | 1.12 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 50 |
| Pallet - Total Unit Quantity | 50 |
| Pallet - Previous Packaging Level Quantity | 50 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 2 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
