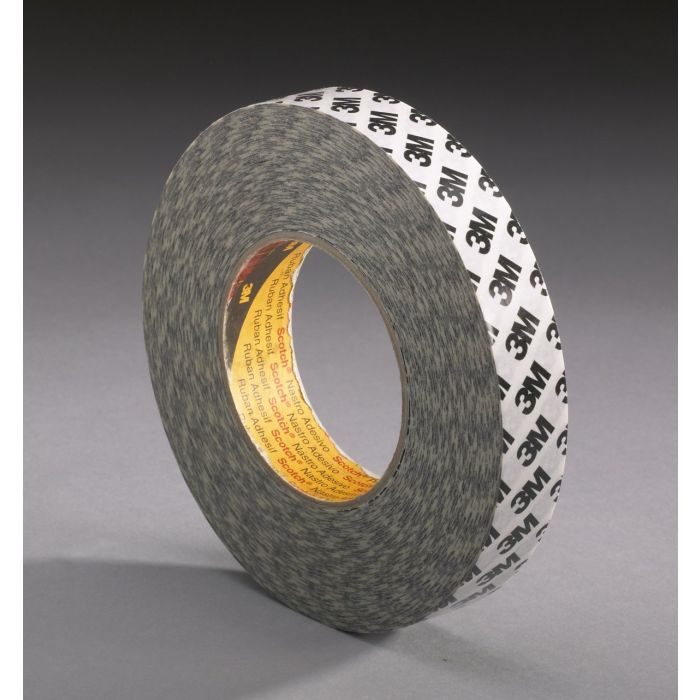

3M™ High Performance Double Coated Tape 9086, White, 54 in x 750 yd, 7.5 mil, Roll

A High-Performance Bond for Nearly Any Substrate

Thicker and stickier than traditional tapes, 3M™ High Performance Double Coated Tape 9086 is suitable for a wide range of materials including paint, stainless steel, glass, foams and a variety of plastics. The adhesive is applied at a thick 3.5 mils on each side of the carrier for good wet-out regardless of whether the surface is smooth, rough or textured. The 0.5 mil tissue carrier conforms well to irregular surfaces, and can be torn by hand for easy handling and application. This tape features a white 3.2 mil glassine paper liner which provides easy, efficient release during tape application.

Recommended Applications

Zero-speed and general splicing POP displays Fabrics Blind manufacturing

Print finishing

3M™ Adhesive 375 Family Provides High Initial Tack

3M™ High Performance Double Coated Tape 9086 features 3M™ Adhesive 375, formulated for very high initial adhesion and excellent peel and shear performance. This high-performance adhesive has been tested for high peel and shear performance on substrates including stainless steel, polycarbonate, glass, HDPE, ABS and high pressure laminate.

Understanding Double Coated Tape

Double coated tapes are composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. Due to their dimensional stability, these double sided tapes can be applied by hand or with a dispenser with minimal stretch or deformation. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Double coated tapes are used in a broad range of industrial applications.

Bringing Better Ideas to the Surface through Science

3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.

• Bonds to a wide variety of substrates including textured surfaces and difficult-to-stick-to plastics
• Double coated tissue carrier with 3.5 mil adhesive on each side
• 375 adhesive family provides high initial tack, excellent peel and shear performance
• 0.5 mil tissue carrier is conformable and tears by hand for fast, efficient handling
• Tissue carrier allows for use in hand dispenser
• Glassine paper liner makes for quick release during application
