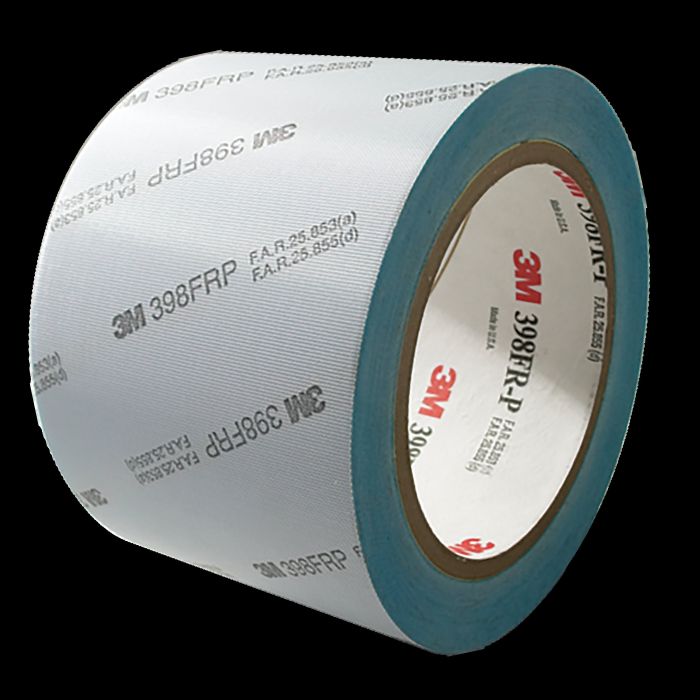

3M™ Glass Cloth Tape 398FRP, White, 4 in x 36 yd, 7 mil, 8 Roll/Case
| UPC | 00051115234835 |
|---|---|
| 3M ID | 7000049205 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Permanently Seal and Protect
3M™ Flame Retardant Glass Cloth Tape 398FRP has a printed liner which shows it meets industry FAR specifications. This tape features pressure sensitive acrylic adhesive that adheres to a variety of substrates. It is mounted on a blue, polyethylene, skip-slit liner for ease of application. Once bonded, this adhesive provides high, secure adhesion for extended periods in a wide range of climate and temperature conditions, including temperatures as high as 250ºF/121ºC. This tape features good puncture resistance, high tensile strength and superior abrasion resistance.
3M™ Flame Retardant Glass Cloth Tape 398FRP meets the flame retardant specifications of F.A.R. Part 25.853(a), F.A.R. Part 25.855(d) and MIL A-3316C 3 13.1 and 3 13.2. It is EU compliant per directive 2003/11/EC of the European Parliament and the Council of February 6, 2003 amending Council Directive 76/769/EEC which restricts the use of penta-BDE and octa-BDE flame retardants. This tape meets requirements of, and can be qualified, to Boeing material specifications BMS 5-146 Type I, Class I, Grade A.
Recommended Applications
Sealing thermal and acoustic insulation panels where high adhesion and flame retardancy are needed Aircraft window sealing, duct sealing and seat repair
Protection of wire harnesses, electrical cables or hoses from temperature extremes and abrasion
- Durable backing provides abrasion and puncture resistance for long-term performance in aerospace applications
- Acrylic adhesive provides excellent long-aging properties ideal for many permanent applications
- Mounted on a printed skip slit liner for ease of application
- Meets flame retardant specifications of F.A.R. 25.853(a) and F.A.R. 25.855(d) and is EU Compliant
- High conformability to bond over a variety of difficult textures and uneven or curved surfaces
- Formulation does not contain antimony
- Offers good temperature resistance of -20ºF/-29ºC to 250ºF/121ºC
- Meets requirements of, and can be qualified, to Boeing material specifications BMS 5-146 Type I, Class I, Grade A
| 3M ID | 7000049205 |
|---|---|
| Part number | 398FRP |
| Keywords | cloth tape medical |
| Global Product Hierarchy | Tapes > Cloth & Duct Tapes > Cloth Tapes |
| Backing (Carrier) Material | Glass Cloth |
| Backing (Carrier) Thickness (Imperial) | 5.0 mil |
| Backing (Carrier) Thickness (Metric) | 0.13 mm |
| Color Family | White |
| Product Color | White |
| Product Number | 398FRP |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 24.0 Month |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 1.665 KG |
| Base - Metric Height Dimension | 50.8 MM |
| Base - Metric Length Dimension | 121.158 MM |
| Base - Metric Width Dimension | 121.16 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 45.50656542257966 ci |
| Unit of Use - Customary Gross Weight | 3.6706966653782116 lbs |
| Unit of Use - Customary Net Weight | 3.6596735522689676 lbs |
| Unit of Use - Customary Height Dimension | 2.0 in |
| Unit of Use - Customary Length Dimension | 4.77 in |
| Unit of Use - Customary Width Dimension | 4.77007874015748 in |
| Unit of Use - Metric Cubic Dimension | 745.719 CCM |
| Unit of Use - Metric Net Weight | 1.66 KG |
| Unit of Use - Metric Height Dimension | 50.8 MM |
| Unit of Use - Metric Length Dimension | 121.158 MM |
| Unit of Use - Metric Width Dimension | 121.16 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2114.7452038998567 ci |
| Shipper - Customary Gross Weight | 42.939434805748604 lbs |
| Shipper - Customary Net Weight | 29.27738841815174 lbs |
| Shipper - Customary Height Dimension | 14.015748031496063 in |
| Shipper - Customary Length Dimension | 12.283464566929133 in |
| Shipper - Customary Width Dimension | 12.283464566929133 in |
| Shipper - Metric Cubic Dimension | 34654.465 CCM |
| Shipper - Metric Weight | 19.477 KG |
| Shipper - Metric Net Weight | 13.28 KG |
| Shipper - Metric Height Dimension | 35.6 CM |
| Shipper - Metric Length Dimension | 31.2 CM |
| Shipper - Metric Width Dimension | 31.2 CM |
| Shipper - Item Quantity | 8 |
| Shipper - Total Unit Quantity | 8 |
| Shipper - Previous Packaging Level Quantity | 8 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 84456.86182710947 ci |
| Pallet - Customary Gross Weight | 1194.9054610420364 lbs |
| Pallet - Customary Net Weight | 790.489487290097 lbs |
| Pallet - Customary Height Dimension | 41.732283464566926 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.384 M3 |
| Pallet - Metric Net Weight | 358.56 KG |
| Pallet - Metric Height Dimension | 1.06 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 216 |
| Pallet - Total Unit Quantity | 216 |
| Pallet - Previous Packaging Level Quantity | 27 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
