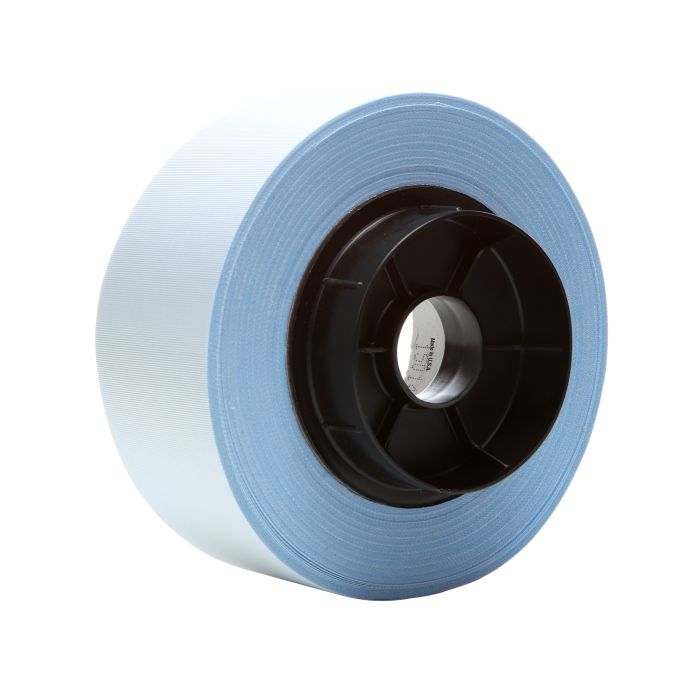

3M™ Glass Cloth Tape 398FR, White, 1 in x 36 yd, 7 mil, 36 Roll/Case
| UPC | 00021200966705 |
|---|---|
| 3M ID | 7000049002 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Permanently Seal and Protect
The 3M™ Glass Cloth Tape 398FR features a white glass-cloth backing designed to provide a clean finished appearance. This tape features a pressure sensitive, acrylic adhesive that adheres to a variety of substrates. It is available on a skip-slit liner for ease of application. Once bonded, this adhesive provides high, secure adhesion for extended periods in a wide range of climate and temperature conditions, including temperatures as high as 250°F/121°C. A blue polyethylene film liner assists with ease of application. This tape features good puncture resistance, high tensile strength and superior abrasion resistance.
3M™ Glass Cloth Tape 398FR meets the flame retardant specifications of F.A.R. Part 25.853(a), F.A.R. Part 25.855(d) and MIL A-3316C 3 13.1 and 3 13.2. It is EU compliant per directive 2003/11/EC of the European Parliament and the Council of February 6, 2003 amending Council Directive 76/769/EEC which restricts the use of penta-BDE and octa-BDE flame retardants. This tape meets requirements of and can be qualified to Boeing material specifications BMS 5-146 Type I, Class I, Grade A.
Recommended Applications
Sealing thermal and acoustic insulation panels where high adhesion and flame retardancy are needed Aircraft window sealing, duct sealing and seat repair
Protection of wire harnesses, electrical cables or hoses from temperature extremes and abrasion
- Durable backing provides abrasion and puncture resistance for long-term aging performance in aerospace applications
- Acrylic adhesive provides excellent long-aging properties ideal for many permanent applications
- Available on a skip-slit liner for ease of application
- Meets flame retardant specifications of F.A.R. 25.853(a) and F.A.R. 25.855(d) and is EU Compliant
- High conformability to bond over a variety of difficult textures and uneven or curved surfaces
- Formulation does not contain antimony
- Offers good temperature resistance of -20ºF/-29ºC to 250ºF/121ºC
- Meets requirements of and can be qualified to Boeing material specifications BMS 5-146 Type I, Class I, Grade A
| 3M ID | 7000049002 |
|---|---|
| Part number | 398FR |
| Keywords | cloth tape medical |
| Global Product Hierarchy | Tapes > Cloth & Duct Tapes > Cloth Tapes |
| Application | Splicing Flame-Retardant Tape |
| Backing (Carrier) Material | Glass Cloth |
| Backing (Carrier) Thickness (Imperial) | 5.0 mil |
| Backing (Carrier) Thickness (Metric) | 0.13 mm |
| Color Family | White |
| Product Color | White |
| Product Number | 398FR |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 24.0 Month |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 276.238 G |
| Base - Metric Height Dimension | 25.4 MM |
| Base - Metric Length Dimension | 101.6 MM |
| Base - Metric Width Dimension | 101.6 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 15.988220952819859 ci |
| Unit of Use - Customary Gross Weight | 0.6090005438142622 lbs |
| Unit of Use - Customary Net Weight | 0.6084758436302621 lbs |
| Unit of Use - Customary Height Dimension | 1.0 in |
| Unit of Use - Customary Length Dimension | 4.0 in |
| Unit of Use - Customary Width Dimension | 4.0 in |
| Unit of Use - Metric Cubic Dimension | 0.262 CDM |
| Unit of Use - Metric Net Weight | 276.0 G |
| Unit of Use - Metric Height Dimension | 25.4 MM |
| Unit of Use - Metric Length Dimension | 101.6 MM |
| Unit of Use - Metric Width Dimension | 101.6 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1556.3574414550403 ci |
| Shipper - Customary Gross Weight | 32.00009735613498 lbs |
| Shipper - Customary Net Weight | 21.905130370689438 lbs |
| Shipper - Customary Height Dimension | 10.31496062992126 in |
| Shipper - Customary Length Dimension | 12.283464566929133 in |
| Shipper - Customary Width Dimension | 12.283464566929133 in |
| Shipper - Metric Cubic Dimension | 25504.129 CCM |
| Shipper - Metric Weight | 14515.0 G |
| Shipper - Metric Net Weight | 9936.0 G |
| Shipper - Metric Height Dimension | 26.2 CM |
| Shipper - Metric Length Dimension | 31.2 CM |
| Shipper - Metric Width Dimension | 31.2 CM |
| Shipper - Item Quantity | 36 |
| Shipper - Total Unit Quantity | 36 |
| Shipper - Previous Packaging Level Quantity | 36 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 94769.87457911923 ci |
| Pallet - Customary Gross Weight | 1565.282061512631 lbs |
| Pallet - Customary Net Weight | 1051.4462577930929 lbs |
| Pallet - Customary Height Dimension | 46.8503937007874 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.553 M3 |
| Pallet - Metric Net Weight | 476.928 KG |
| Pallet - Metric Height Dimension | 1.19 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 1728 |
| Pallet - Total Unit Quantity | 1728 |
| Pallet - Previous Packaging Level Quantity | 48 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 12 |
