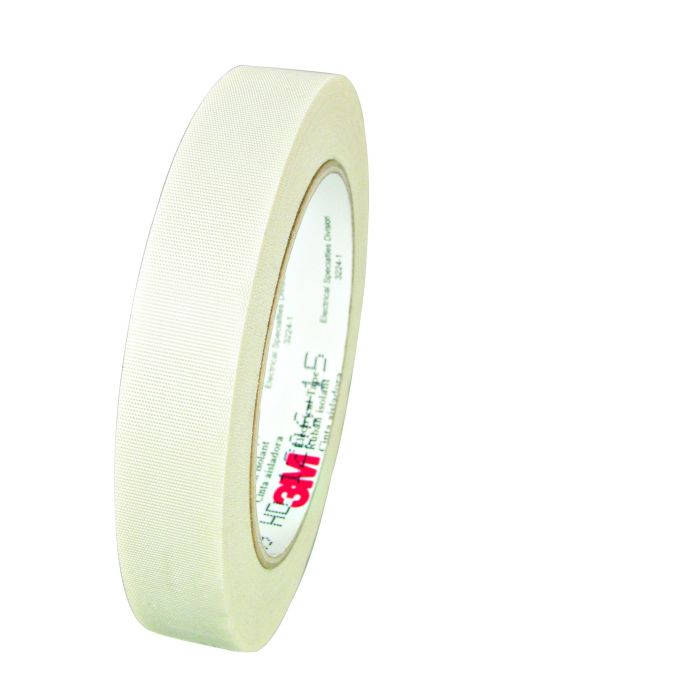

3M™ Glass Cloth Electrical Tape 69, 1/2 in x 36 yd, White, 18 Rolls/Case
3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.
Special Price
$26.38
Regular Price
$31.03
| UPC | 00054007275480 |
|---|---|
| 3M ID | 7000031352 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive. It is commonly used in UL applications rated up to 600 volts in dry locations and in a variety of coil/transformer and motor applications including as an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold-down, end turns and lead anchor and connections. UL recognized and 200°C (392°F) temperature rated. CSA certified and 180°C (356°F) temperature rated. RoHS Compliant and QPL Listed - QPL-19166 pre MIL-I-19166
- Nominal thickness: 0.178 mm (7.0 mil)
- Printable
- Pressure-sensitive silicone adhesive with glass cloth backing
- UL Recognized flame retardant
- UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
- 5 year shelf-life when stored per 3M recommended conditions
- RoHS Compliant and QPL Listed - QPL-19166 pre MIL-I-19166
| 3M ID | 7000031352 |
|---|---|
| Part number | 69 1/2"X36YD MINI |
| Keywords | 691/2"X36YD 691/2X36YD 6912X36YD |
| Global Product Hierarchy | Tapes > Electrical Tapes > Glass Cloth Electrical Tapes |
| Color Family | White |
| Product Color | White |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 4.65984252 |
| Base - Customary Length Dimension | 0.5 |
| Base - Customary Width Dimension | 4.65984252 |
| Base - Metric Gross Weight | 123.831 G |
| Base - Metric Height Dimension | 11.836 CM |
| Base - Metric Length Dimension | 1.27 CM |
| Base - Metric Width Dimension | 11.836 CM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 10.857039430614295 ci |
| Unit of Use - Customary Gross Weight | 0.27300062388615576 lbs |
| Unit of Use - Customary Net Weight | 0.2519883656773151 lbs |
| Unit of Use - Customary Height Dimension | 4.659842519685039 in |
| Unit of Use - Customary Length Dimension | 0.5 in |
| Unit of Use - Customary Width Dimension | 4.659842519685039 in |
| Unit of Use - Metric Cubic Dimension | 177.915 CCM |
| Unit of Use - Metric Net Weight | 114.3 G |
| Unit of Use - Metric Height Dimension | 11.836 CM |
| Unit of Use - Metric Length Dimension | 1.27 CM |
| Unit of Use - Metric Width Dimension | 11.836 CM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 744.7497001293215 ci |
| Shipper - Customary Gross Weight | 4.925126937210165 lbs |
| Shipper - Customary Net Weight | 4.534908733142932 lbs |
| Shipper - Customary Height Dimension | 10.590551181102363 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 12204.261 CCM |
| Shipper - Metric Weight | 2.234 KG |
| Shipper - Metric Net Weight | 2.057 KG |
| Shipper - Metric Height Dimension | 0.269 M |
| Shipper - Metric Length Dimension | 0.213 M |
| Shipper - Metric Width Dimension | 0.213 M |
| Shipper - Item Quantity | 18 |
| Shipper - Total Unit Quantity | 18 |
| Shipper - Previous Packaging Level Quantity | 18 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 95563.18325235076 ci |
| Pallet - Customary Gross Weight | 526.9048066218575 lbs |
| Pallet - Customary Net Weight | 453.5790582191671 lbs |
| Pallet - Customary Height Dimension | 47.24409448818898 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.566 M3 |
| Pallet - Metric Net Weight | 205.74 KG |
| Pallet - Metric Height Dimension | 1.2 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 1800 |
| Pallet - Total Unit Quantity | 1800 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
