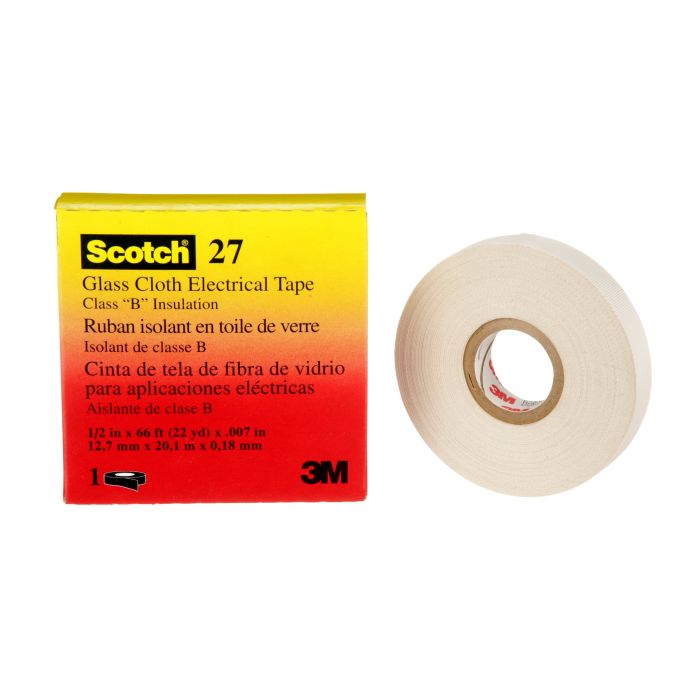

3M™ Glass Cloth Electrical Tape 27, 1/2 in x 66 ft, 50 Rolls/Case
| UPC | 00054007150664 |
|---|---|
| 3M ID | 7000005814 |
| Packaging | Roll |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
The 3M Glass Cloth Electrical Tape 27 is a great option when it comes to electrical jobs that require heat insulation, edge tear resistance and adaptable tape applications. The composite in its material is suitable for 600V rated, dry location application on motors and transformers.
3M Glass Cloth Electrical Tape 27 features a pressure sensitive, high temperature, thermosetting, rubber adhesive that offers exceptional bonding once adhered. This reactive compound results in a non-corrosive adhesive that offers solvent resistant protection; providing stability and reliability.
A 7-mil woven insulating glass cloth provides high mechanical strength, high temperature resistance and heat-stable insulation for heating units and oven controls, motor leads and switches. This glass cloth backing holds a feature suitable for tough 600V ratings and endures extreme temperature operations (low temperatures up to 302F / 0 to 150C) often presented in application environments. Resists rotting and shrinking after extended use.
- PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperature to 302F (up to 150C)
- GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
- INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
- PERFORMACE: Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
- RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments
- PRESSURE SENSITIVE ADHESIVE: Non–corrosive, solvent resistant, thermosetting rubber adhesive
- CONFORMABLE: Suitable for complex tape applications
- UL RECOGNIZED: UL Listed, CSA Certified.
| 3M ID | 7000005814 |
|---|---|
| Part number | 27-1/2"X66' |
| Keywords | 3m glass cloth electrical tape 27 1/2 in 7 mil woven 600 volts dry application high temperature mechanical strength corrosion tear abrasion resistant rubber adhesive coil banding layer crossover insulation printable |
| Global Product Hierarchy | Tapes > Electrical Tapes > Glass Cloth Electrical Tapes |
| Application | Electrical Maintenance |
| Backing (Carrier) Material | Glass Cloth |
| Color Family | White |
| Product Color | White |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 3.625 |
| Base - Customary Length Dimension | 0.780984252 |
| Base - Customary Width Dimension | 3.62480315 |
| Base - Metric Gross Weight | 65.771 G |
| Base - Metric Height Dimension | 92.075 MM |
| Base - Metric Length Dimension | 19.837 MM |
| Base - Metric Width Dimension | 92.07 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 10.251989007915023 ci |
| Consumer - Customary Gross Weight | 0.14500023446161583 lbs |
| Consumer - Customary Net Weight | 0.13712752707899387 lbs |
| Consumer - Customary Height Dimension | 3.625 in |
| Consumer - Customary Length Dimension | 0.780984251968504 in |
| Consumer - Customary Width Dimension | 3.6248031496062993 in |
| Consumer - Metric Cubic Dimension | 0.168 CDM |
| Consumer - Metric Net Weight | 62.2 G |
| Consumer - Metric Height Dimension | 92.075 MM |
| Consumer - Metric Length Dimension | 19.837 MM |
| Consumer - Metric Width Dimension | 92.07 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Total Unit Quantity | 1 |
| Consumer - Previous Packaging Level Quantity | 1 |
| Consumer - Item Unit | RLS |
| Consumer - Unit | ROL |
| Inner - Billing Unit | ROL |
| Inner - Customary Cubic Dimension | 101.23497412349155 ci |
| Inner - Customary Gross Weight | 1.44998029838994 lbs |
| Inner - Customary Net Weight | 1.3712752707899385 lbs |
| Inner - Customary Height Dimension | 3.622047244094488 in |
| Inner - Customary Length Dimension | 7.716535433070866 in |
| Inner - Customary Width Dimension | 3.622047244094488 in |
| Inner - Metric Cubic Dimension | 1658.944 CCM |
| Inner - Metric Net Weight | 622.0 G |
| Inner - Metric Height Dimension | 9.2 CM |
| Inner - Metric Length Dimension | 19.6 CM |
| Inner - Metric Width Dimension | 9.2 CM |
| Inner - Item Quantity | 10 |
| Inner - Total Unit Quantity | 10 |
| Inner - Previous Packaging Level Quantity | 10 |
| Inner - Item Unit | RLS |
| Inner - Previous Packaging Level Unit | CTNS |
| Inner - Unit | PAK |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 791.6839770687416 ci |
| Shipper - Customary Gross Weight | 8.000575494689208 lbs |
| Shipper - Customary Net Weight | 6.856376353949693 lbs |
| Shipper - Customary Height Dimension | 4.881889763779528 in |
| Shipper - Customary Length Dimension | 19.80314960629921 in |
| Shipper - Customary Width Dimension | 8.188976377952756 in |
| Shipper - Metric Cubic Dimension | 12973.376 CCM |
| Shipper - Metric Weight | 3.629 KG |
| Shipper - Metric Net Weight | 3.11 KG |
| Shipper - Metric Height Dimension | 12.4 CM |
| Shipper - Metric Length Dimension | 50.3 CM |
| Shipper - Metric Width Dimension | 20.8 CM |
| Shipper - Item Quantity | 50 |
| Shipper - Total Unit Quantity | 50 |
| Shipper - Previous Packaging Level Quantity | 5 |
| Shipper - Previous Packaging Level Unit | PACK |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 90803.33121296164 ci |
| Pallet - Customary Gross Weight | 798.0733891092568 lbs |
| Pallet - Customary Net Weight | 658.2121299791705 lbs |
| Pallet - Customary Height Dimension | 44.881889763779526 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.488 M3 |
| Pallet - Metric Net Weight | 298.56 KG |
| Pallet - Metric Height Dimension | 1.14 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 4800 |
| Pallet - Total Unit Quantity | 4800 |
| Pallet - Previous Packaging Level Quantity | 96 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 8 |
| Pallet - Shipping Container Per Layer Quantity | 12 |
