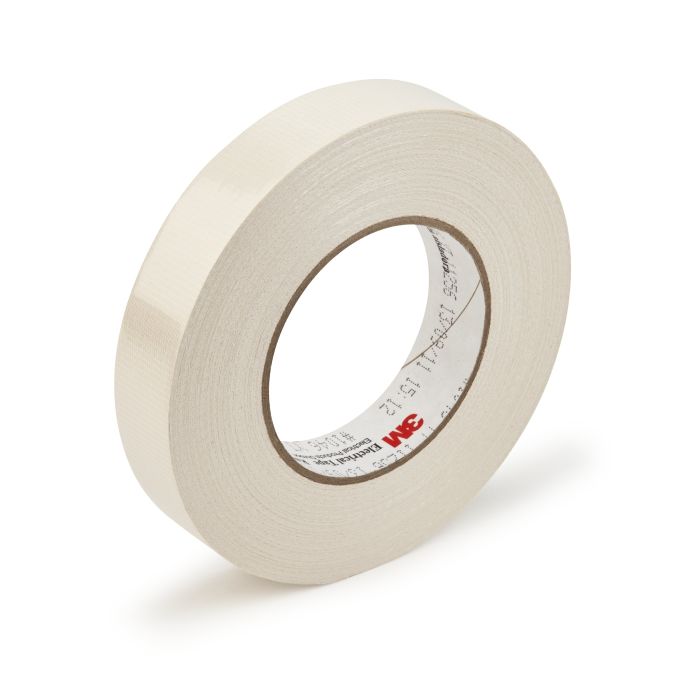

3M™ Filament-Reinforced Electrical Tape 1046, 1/4 in x 60 yds, paper core, Bulk, 144 Rolls/Case
3M™ Filament Reinforced Electrical Tape 1046 is a 7 mil thick, high tensile, electrical tape. It is suitable for insulating dry type transformers, as well as motor winding, end turn and wire hold applications. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Special Price
$8.24
Regular Price
$9.70
| UPC | 00051128604564 |
|---|---|
| 3M ID | 7010399046 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Electrical Tape 1046 has a polyester film, filament reinforced backing and a thermosetting, rubber adhesive that offers optimized adherence. The backing has excellent electrical and physical characteristics. It is designed for applications that require excellent dielectric strength and mechanical strength. This tape is suitable for lead anchoring and the banding of coils where high edge tear resistance and low stretch are required. RoHS 2011/65/EU Compliant.
- Polyester film, filament-reinforced backing and highly conformable, pressure-sensitive, thermosetting, rubber adhesive
- Designed for applications that require excellent dielectric strength and mechanical strength
- Suitable for insulating dry-type transformers, motor-winding and end-turn, wire-hold applications
- Designed for excellent dielectric strength and mechanical strength applications
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- RoHS 2011/65/EU Compliant
| 3M ID | 7010399046 |
|---|---|
| Part number | 1046 1/4"X60YD |
| Global Product Hierarchy | Tapes > Electrical Tapes > Filament Reinforced Tapes |
| Product Color | Transparent |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | United States |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 80.739 G |
| Base - Metric Height Dimension | 139.7 MM |
| Base - Metric Length Dimension | 6.35 MM |
| Base - Metric Width Dimension | 139.7 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 7.566944267746803 ci |
| Unit of Use - Customary Gross Weight | 0.1779990258654483 lbs |
| Unit of Use - Customary Net Weight | 0.17799241199758276 lbs |
| Unit of Use - Customary Height Dimension | 5.5 in |
| Unit of Use - Customary Length Dimension | 0.25 in |
| Unit of Use - Customary Width Dimension | 5.5 in |
| Unit of Use - Metric Cubic Dimension | 0.124 CDM |
| Unit of Use - Metric Net Weight | 80.736 G |
| Unit of Use - Metric Height Dimension | 139.7 MM |
| Unit of Use - Metric Length Dimension | 6.35 MM |
| Unit of Use - Metric Width Dimension | 139.7 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1558.2869512195716 ci |
| Shipper - Customary Gross Weight | 28.355856162218956 lbs |
| Shipper - Customary Net Weight | 25.630942601613867 lbs |
| Shipper - Customary Height Dimension | 10.3 in |
| Shipper - Customary Length Dimension | 12.3 in |
| Shipper - Customary Width Dimension | 12.3 in |
| Shipper - Metric Cubic Dimension | 25535.748 CCM |
| Shipper - Metric Weight | 12.862 KG |
| Shipper - Metric Net Weight | 11.626 KG |
| Shipper - Metric Height Dimension | 26.162 CM |
| Shipper - Metric Length Dimension | 31.242 CM |
| Shipper - Metric Width Dimension | 31.242 CM |
| Shipper - Item Quantity | 144 |
| Shipper - Total Unit Quantity | 144 |
| Shipper - Previous Packaging Level Quantity | 144 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 92736.00200743708 ci |
| Pallet - Customary Gross Weight | 1052.9983121188745 lbs |
| Pallet - Customary Net Weight | 922.7117290354773 lbs |
| Pallet - Customary Height Dimension | 46.0 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1519670.8 CCM |
| Pallet - Metric Net Weight | 418.535 KG |
| Pallet - Metric Height Dimension | 116.84 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 5184 |
| Pallet - Total Unit Quantity | 5184 |
| Pallet - Previous Packaging Level Quantity | 36 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
