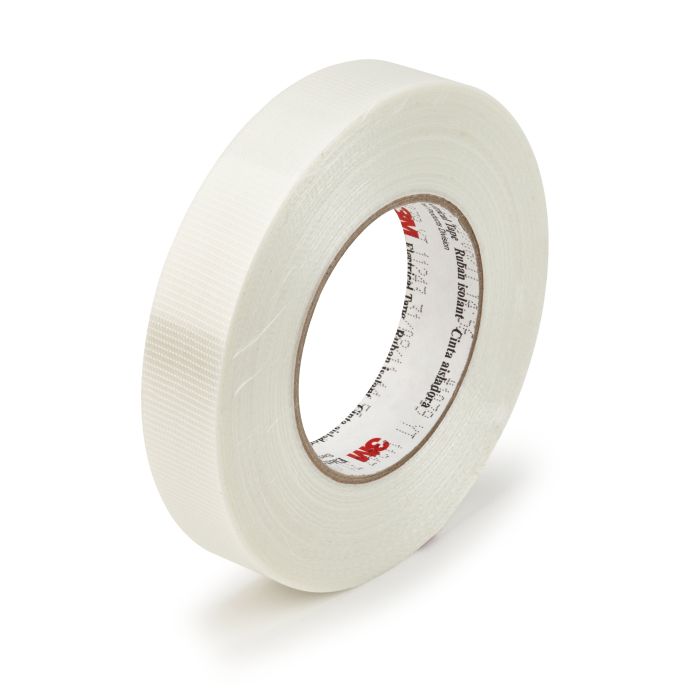

3M™ Filament-Reinforced Electrical Tape 1039, 3 in X 60 yds, paper core, Log roll, 16 Rolls/Case
3M™ Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 °F ( 40 to 130 °C).
Special Price
$111.50
Regular Price
$131.17
| UPC | 00051128606698 |
|---|---|
| 3M ID | 7010305781 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Tape 1039 is designed for dry type transformers, motor winding and low voltage applications that require dielectric and mechanical strength. This conformable tape offers excellent dielectric strength, low stretch and high tensile strength. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. The tape is ideal for anchoring end turn tapping and lead wires to banding coils and it provides stiffness for excellent handling during coil winding operations. UL Listed and RoHS 2011/65/EU Compliant.
- Acrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristics
- Woven, glass mat provides additional reinforcement
- Suitable for anchoring end-turn tapping and lead wires to banding coils
- Offers good initial adhesion to magnet wire, strip copper and insulation materials
- Withstands a temperature range of -40 to 266 °F (-40 to 130 °C)
- Provides stiffness for excellent handling during coil-winding operations
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010305781 |
|---|---|
| Part number | 1039-3 3"X60YD |
| Global Product Hierarchy | Tapes > Electrical Tapes > Filament Reinforced Tapes |
| Product Color | White |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | United States |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 1.212 KG |
| Base - Metric Height Dimension | 76.2 MM |
| Base - Metric Length Dimension | 152.4 MM |
| Base - Metric Width Dimension | 152.4 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 108.00000537008948 ci |
| Unit of Use - Customary Gross Weight | 2.6720026176807163 lbs |
| Unit of Use - Customary Net Weight | 2.6697979950588677 lbs |
| Unit of Use - Customary Height Dimension | 3.0 in |
| Unit of Use - Customary Length Dimension | 6.0 in |
| Unit of Use - Customary Width Dimension | 6.0 in |
| Unit of Use - Metric Cubic Dimension | 1769.803 CCM |
| Unit of Use - Metric Net Weight | 1.211 KG |
| Unit of Use - Metric Height Dimension | 76.2 MM |
| Unit of Use - Metric Length Dimension | 152.4 MM |
| Unit of Use - Metric Width Dimension | 152.4 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2114.7452038998567 ci |
| Shipper - Customary Gross Weight | 44.312914699160395 lbs |
| Shipper - Customary Net Weight | 42.716767920941884 lbs |
| Shipper - Customary Height Dimension | 14.015748031496063 in |
| Shipper - Customary Length Dimension | 12.283464566929133 in |
| Shipper - Customary Width Dimension | 12.283464566929133 in |
| Shipper - Metric Cubic Dimension | 34654.465 CCM |
| Shipper - Metric Weight | 20.1 KG |
| Shipper - Metric Net Weight | 19.376 KG |
| Shipper - Metric Height Dimension | 35.6 CM |
| Shipper - Metric Length Dimension | 31.2 CM |
| Shipper - Metric Width Dimension | 31.2 CM |
| Shipper - Item Quantity | 16 |
| Shipper - Total Unit Quantity | 16 |
| Shipper - Previous Packaging Level Quantity | 16 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 90812.85091704041 ci |
| Pallet - Customary Gross Weight | 1230.179422991617 lbs |
| Pallet - Customary Net Weight | 1153.3527338654308 lbs |
| Pallet - Customary Height Dimension | 44.881889763779526 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1488156.0 CCM |
| Pallet - Metric Net Weight | 523.152 KG |
| Pallet - Metric Height Dimension | 1.14 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 432 |
| Pallet - Total Unit Quantity | 432 |
| Pallet - Previous Packaging Level Quantity | 27 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
