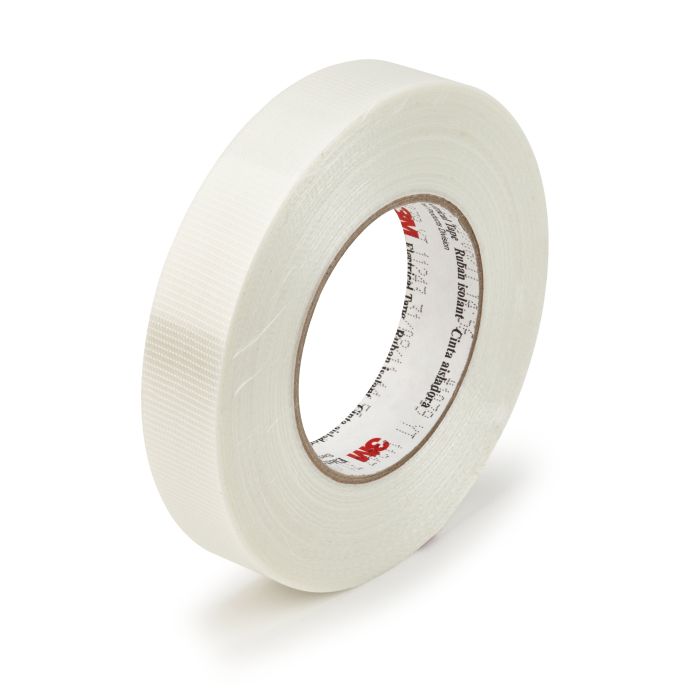

3M™ Filament-Reinforced Electrical Tape 1039, 23 in x 60 yd, Paper Core, 1 Roll/Case
3M™ Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 °F ( 40 to 130 °C).
Special Price
$556.82
Regular Price
$655.08
| UPC | 00051128595053 |
|---|---|
| 3M ID | 7100002918 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ Tape 1039 is designed for dry type transformers, motor winding and low voltage applications that require dielectric and mechanical strength. This conformable tape offers excellent dielectric strength, low stretch and high tensile strength. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. The tape is ideal for anchoring end turn tapping and lead wires to banding coils and it provides stiffness for excellent handling during coil winding operations. UL Listed and RoHS 2011/65/EU Compliant.
- Acrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristics
- Woven, glass mat provides additional reinforcement
- Suitable for anchoring end-turn tapping and lead wires to banding coils
- Offers good initial adhesion to magnet wire, strip copper and insulation materials
- Withstands a temperature range of -40 to 266 °F (-40 to 130 °C)
- Provides stiffness for excellent handling during coil-winding operations
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7100002918 |
|---|---|
| Part number | 1039 23"X60YD PLS |
| Global Product Hierarchy | Tapes > Electrical Tapes > Filament Reinforced Tapes |
| Application | Insulation |
| Color Family | Beige |
| Product Color | White |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 5.0 Year |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 9.09999 INCH |
| Base - Customary Length Dimension | 31.8 INCH |
| Base - Customary Width Dimension | 8.3 INCH |
| Base - Metric Gross Weight | 8.618 KG |
| Base - Metric Height Dimension | 0.23113 M |
| Base - Metric Length Dimension | 0.807 M |
| Base - Metric Width Dimension | 0.21 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 2403.2981136828416 ci |
| Unit of Use - Customary Gross Weight | 18.99943775509275 lbs |
| Unit of Use - Customary Net Weight | 16.664742398554896 lbs |
| Unit of Use - Metric Cubic Dimension | 39.383 CDM |
| Unit of Use - Metric Net Weight | 7.559 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2403.2981136828416 ci |
| Shipper - Customary Gross Weight | 18.99943775509275 lbs |
| Shipper - Customary Net Weight | 16.664742398554896 lbs |
| Shipper - Customary Height Dimension | 9.094488188976378 in |
| Shipper - Customary Length Dimension | 31.811023622047244 in |
| Shipper - Customary Width Dimension | 8.307086614173228 in |
| Shipper - Metric Cubic Dimension | 39.383 CDM |
| Shipper - Metric Weight | 8.618 KG |
| Shipper - Metric Net Weight | 7.559 KG |
| Shipper - Metric Height Dimension | 23.1 CM |
| Shipper - Metric Length Dimension | 80.8 CM |
| Shipper - Metric Width Dimension | 21.1 CM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 82870.24448064645 ci |
| Pallet - Customary Gross Weight | 502.6539577815209 lbs |
| Pallet - Customary Net Weight | 399.95381756531754 lbs |
| Pallet - Customary Height Dimension | 40.94488188976378 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.358 M3 |
| Pallet - Metric Net Weight | 181.416 KG |
| Pallet - Metric Height Dimension | 1.04 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 24 |
| Pallet - Total Unit Quantity | 24 |
| Pallet - Previous Packaging Level Quantity | 24 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 6 |
