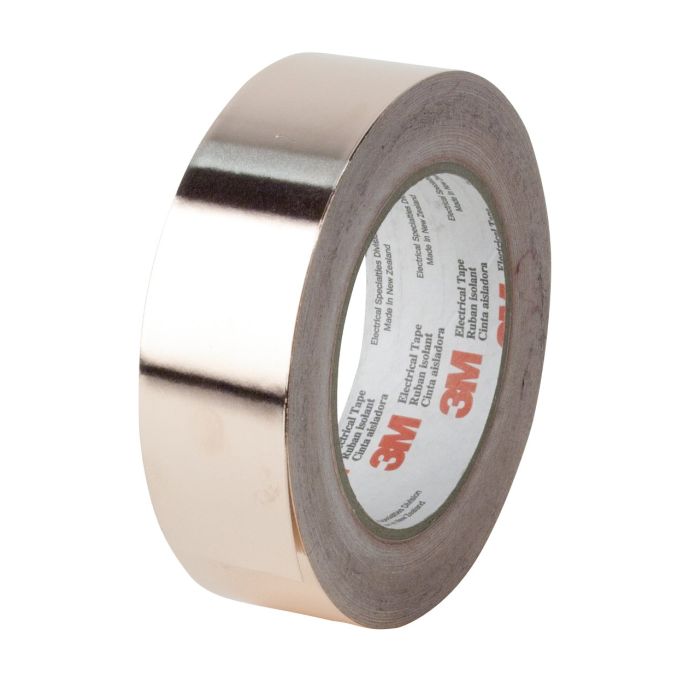

3M™ EMI Copper Foil Shielding Tape 1194, 23 in x 60 yd, trimmed, Log Roll w/liner, 1 Roll/Case
3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$3,178.53
Regular Price
$3,739.45
| UPC | 00051138528195 |
|---|---|
| 3M ID | 7100030571 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1194 has a deadsoft, copper foil backing with an aggressive, pressure sensitive, non conductive, acrylic adhesive that ensures firm adherence. It offers excellent resistance against oxidation and discoloration and its solderable backing makes it an ideal choice for applications like connectors, cable shielding and electrostatic shielding between transformer windings. UL Listed and RoHS 2011/65/EU Compliant.
- Non-conductive, acrylic adhesive offers optimized adherence
- Removable liner for easy die-cutting and handling
- Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7100030571 |
|---|---|
| Part number | 1194 23"X60YD LIN |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil |
| Backing (Carrier) Thickness (Imperial) | 1.4 mil |
| Backing (Carrier) Thickness (Metric) | 0.035 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 15.875 KG |
| Base - Metric Length Dimension | 54.864 M |
| Base - Metric Width Dimension | 0.584 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 2374.3728589819384 ci |
| Unit of Use - Customary Gross Weight | 34.99838412184931 lbs |
| Unit of Use - Customary Net Weight | 32.20071801472322 lbs |
| Unit of Use - Metric Cubic Dimension | 38.909 CDM |
| Unit of Use - Metric Net Weight | 14.606 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 2374.3728589819384 ci |
| Shipper - Customary Gross Weight | 34.99838412184931 lbs |
| Shipper - Customary Net Weight | 32.20071801472322 lbs |
| Shipper - Customary Height Dimension | 9.173228346456693 in |
| Shipper - Customary Length Dimension | 30.866141732283463 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 38.909 CDM |
| Shipper - Metric Weight | 15.875 KG |
| Shipper - Metric Net Weight | 14.606 KG |
| Shipper - Metric Height Dimension | 0.233 M |
| Shipper - Metric Length Dimension | 0.784 M |
| Shipper - Metric Width Dimension | 0.213 M |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Unit | CS |
| Pallet - Total Unit Quantity | 28 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 7 |
