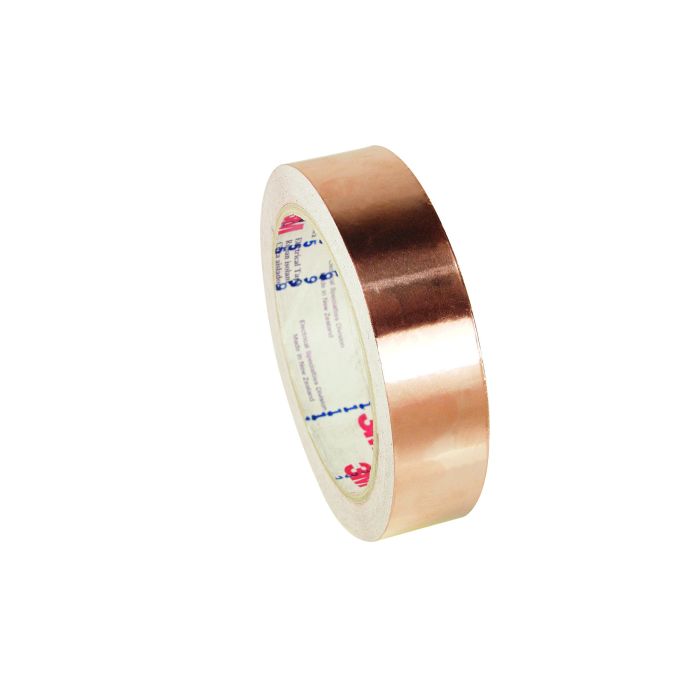

3M™ EMI Copper Foil Shielding Tape 1182, 3/4 in x 18 yd (19.05 mm x 16.5 m), Double Coate, 12 per case
3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$74.62
Regular Price
$87.79
| UPC | 00051138496722 |
|---|---|
| 3M ID | 7010398771 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1182 has deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive coating on both sides that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. The construction of the tape offers a good method of bonding and grounding conductive surfaces. UL Listed and RoHS 2011/65/EU Compliant.
- Unique adhesive creates secure contact with the application surface
- Suitable for bonding 2 surfaces together physically and electrically
- Flame-retardant
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010398771 |
|---|---|
| Part number | 1182-3/4"X18YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 1.6 mil |
| Backing (Carrier) Thickness (Metric) | 0.04 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 215.91 G |
| Base - Metric Height Dimension | 120.65 MM |
| Base - Metric Length Dimension | 19.05 MM |
| Base - Metric Width Dimension | 120.65 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 16.92188423746926 ci |
| Unit of Use - Customary Gross Weight | 0.47600007028336916 lbs |
| Unit of Use - Customary Net Weight | 0.4758303143414868 lbs |
| Unit of Use - Customary Height Dimension | 4.75 in |
| Unit of Use - Customary Length Dimension | 0.75 in |
| Unit of Use - Customary Width Dimension | 4.75 in |
| Unit of Use - Metric Cubic Dimension | 277.3 CCM |
| Unit of Use - Metric Net Weight | 215.833 G |
| Unit of Use - Metric Height Dimension | 120.65 MM |
| Unit of Use - Metric Length Dimension | 19.05 MM |
| Unit of Use - Metric Width Dimension | 120.65 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 734.6616819217891 ci |
| Shipper - Customary Gross Weight | 5.7672927787563975 lbs |
| Shipper - Customary Net Weight | 5.709972590588329 lbs |
| Shipper - Customary Height Dimension | 10.25 in |
| Shipper - Customary Length Dimension | 8.68779527559055 in |
| Shipper - Customary Width Dimension | 8.25 in |
| Shipper - Metric Cubic Dimension | 12038.948 CCM |
| Shipper - Metric Weight | 2.616 KG |
| Shipper - Metric Net Weight | 2.59 KG |
| Shipper - Metric Height Dimension | 26.035 CM |
| Shipper - Metric Length Dimension | 22.067 CM |
| Shipper - Metric Width Dimension | 20.955 CM |
| Shipper - Item Quantity | 12 |
| Shipper - Total Unit Quantity | 12 |
| Shipper - Previous Packaging Level Quantity | 12 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 92736.00200743708 ci |
| Pallet - Customary Gross Weight | 611.9988305799765 lbs |
| Pallet - Customary Net Weight | 570.9972590588329 lbs |
| Pallet - Customary Height Dimension | 46.0 in |
| Pallet - Customary Length Dimension | 48.0 in |
| Pallet - Customary Width Dimension | 42.0 in |
| Pallet - Metric Cubic Dimension | 1519670.8 CCM |
| Pallet - Metric Net Weight | 259.0 KG |
| Pallet - Metric Height Dimension | 116.84 CM |
| Pallet - Metric Length Dimension | 121.92 CM |
| Pallet - Metric Width Dimension | 106.68 CM |
| Pallet - Item Quantity | 1200 |
| Pallet - Total Unit Quantity | 1200 |
| Pallet - Previous Packaging Level Quantity | 100 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
