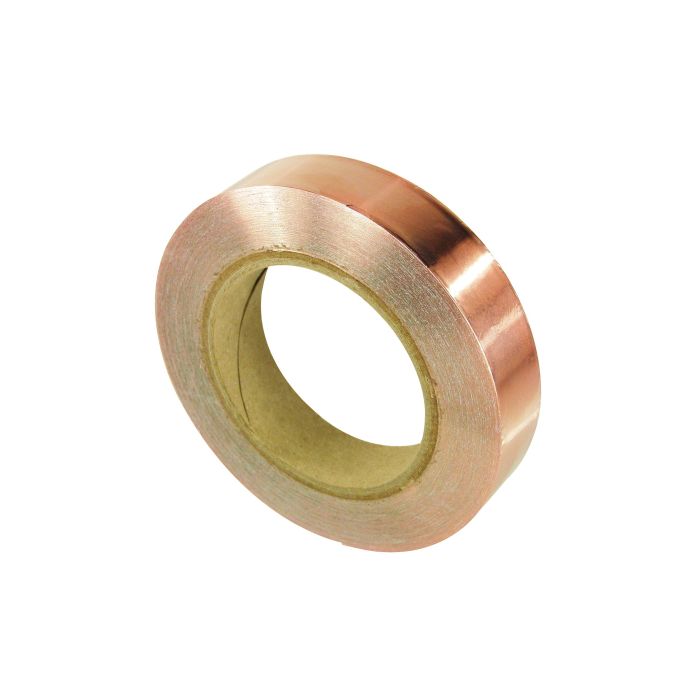

3M™ EMI Copper Foil Shielding Tape 1125, 23 in x 36 yd, Log Roll, 1 Roll/Case
3M™ Copper Foil EMI Shielding Tape 1125 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for EMI/RFI shielding applications, such as the shielding of small, electromagnetic components and the repair and modification of printed wiring boards. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$1,049.44
Regular Price
$1,234.63
| UPC | 00051128532911 |
|---|---|
| 3M ID | 7000132912 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1125 has a rolled, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. This flame retardant tape is designed for flat conductor assemblies, prototype designs and the supplementary shielding of joints/seams and the shielding of cable splices. UL Listed and RoHS 2011/65/EU Compliant.
- Comes on a removable liner for easy die-cutting and handling
- Suitable for EMI/RFI shielding applications
- Flame-retardant
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7000132912 |
|---|---|
| Part number | 1125LOG 23"X36YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Copper Foil, Flat |
| Backing (Carrier) Thickness (Imperial) | 3.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.089 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| Sales Unit | RO |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Customary Length Dimension | 36.0 LNYD |
| Base - Customary Width Dimension | 23.0 INCH |
| Base - Metric Gross Weight | 11.045 KG |
| Base - Metric Length Dimension | 32.918 M |
| Base - Metric Width Dimension | 0.584 M |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 1359.7471761872657 ci |
| Unit of Use - Customary Gross Weight | 24.35005685831973 lbs |
| Unit of Use - Customary Net Weight | 22.723045363395332 lbs |
| Unit of Use - Metric Cubic Dimension | 22282.264 CCM |
| Unit of Use - Metric Net Weight | 10.307 KG |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1359.7471761872657 ci |
| Shipper - Customary Gross Weight | 24.35005685831973 lbs |
| Shipper - Customary Net Weight | 22.723045363395332 lbs |
| Shipper - Customary Height Dimension | 7.2047244094488185 in |
| Shipper - Customary Length Dimension | 29.409448818897637 in |
| Shipper - Customary Width Dimension | 6.417322834645669 in |
| Shipper - Metric Cubic Dimension | 22282.264 CCM |
| Shipper - Metric Weight | 11.045 KG |
| Shipper - Metric Net Weight | 10.307 KG |
| Shipper - Metric Height Dimension | 18.3 CM |
| Shipper - Metric Length Dimension | 74.7 CM |
| Shipper - Metric Width Dimension | 16.3 CM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 82870.24448064645 ci |
| Pallet - Customary Gross Weight | 888.4629166050566 lbs |
| Pallet - Customary Net Weight | 795.3065877188367 lbs |
| Pallet - Customary Height Dimension | 40.94488188976378 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.358 M3 |
| Pallet - Metric Net Weight | 360.745 KG |
| Pallet - Metric Height Dimension | 1.04 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 35 |
| Pallet - Total Unit Quantity | 35 |
| Pallet - Previous Packaging Level Quantity | 35 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 5 |
| Pallet - Shipping Container Per Layer Quantity | 7 |
