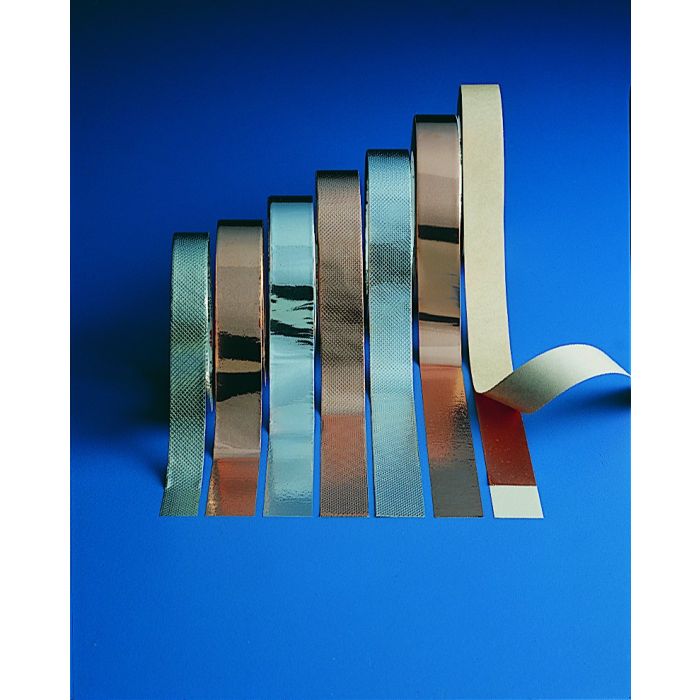

3M™ EMI Aluminum Foil Shielding Tape 1170, 4 in x 18 yd, 3 in Paper Core, 3 Rolls/Case
3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.
Special Price
$341.97
Regular Price
$402.32
| UPC | 00051138501181 |
|---|---|
| 3M ID | 7010398883 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1170 has aluminium foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This tape is designed for applications such as static charge draining, seaming shielded rooms, cable wrapping and providing surface contact to non solderable materials. Ideal for EMI shielding, grounding and static charge draining. UL Listed and RoHS 2011/65/EU Compliant.
- Unique adhesive creates secure contact with the application surface
- Suitable for EMI shielding, grounding and static charge draining
- Flame-retardant
- Rated for 600V applications
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- Typical shielding effectiveness is above 85 dB, 1MHz to GHz
| 3M ID | 7010398883 |
|---|---|
| Part number | 1170 4"X18YD |
| Keywords | Tape 1170, Shielding tape, Aluminium foil tape, emi shielding tape, flame retardant tape, Shielding tape 1170, 3M foil Tape, 3M Tape, 3M Tape 1170, 3m conductive adhesive, acrylic adhesive 3m, aluminium tape |
| Global Product Hierarchy | Tapes > Foil Tapes > Aluminum Tapes |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 0.61 KG |
| Base - Metric Height Dimension | 100.33 MM |
| Base - Metric Length Dimension | 104.14 MM |
| Base - Metric Width Dimension | 104.14 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 66.39383357506873 ci |
| Unit of Use - Customary Gross Weight | 1.3448197993277533 lbs |
| Unit of Use - Customary Net Weight | 1.3448197993277533 lbs |
| Unit of Use - Customary Height Dimension | 3.95 in |
| Unit of Use - Customary Length Dimension | 4.1 in |
| Unit of Use - Customary Width Dimension | 4.1 in |
| Unit of Use - Metric Cubic Dimension | 1.088 CDM |
| Unit of Use - Metric Net Weight | 0.61 KG |
| Unit of Use - Metric Height Dimension | 100.33 MM |
| Unit of Use - Metric Length Dimension | 104.14 MM |
| Unit of Use - Metric Width Dimension | 104.14 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1027.1454361806361 ci |
| Shipper - Customary Gross Weight | 5.105905992201765 lbs |
| Shipper - Customary Net Weight | 4.032254775361411 lbs |
| Shipper - Customary Height Dimension | 14.606299212598426 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 16831.898 CCM |
| Shipper - Metric Weight | 2.316 KG |
| Shipper - Metric Net Weight | 1.829 KG |
| Shipper - Metric Height Dimension | 37.1 CM |
| Shipper - Metric Length Dimension | 21.3 CM |
| Shipper - Metric Width Dimension | 21.3 CM |
| Shipper - Item Quantity | 3 |
| Shipper - Total Unit Quantity | 3 |
| Shipper - Previous Packaging Level Quantity | 3 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 98797.44168937157 ci |
| Pallet - Customary Gross Weight | 418.8782981512674 lbs |
| Pallet - Customary Net Weight | 302.3860388127781 lbs |
| Pallet - Customary Height Dimension | 48.818897637795274 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.619 M3 |
| Pallet - Metric Net Weight | 137.16 KG |
| Pallet - Metric Height Dimension | 1.24 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 225 |
| Pallet - Total Unit Quantity | 225 |
| Pallet - Previous Packaging Level Quantity | 75 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
