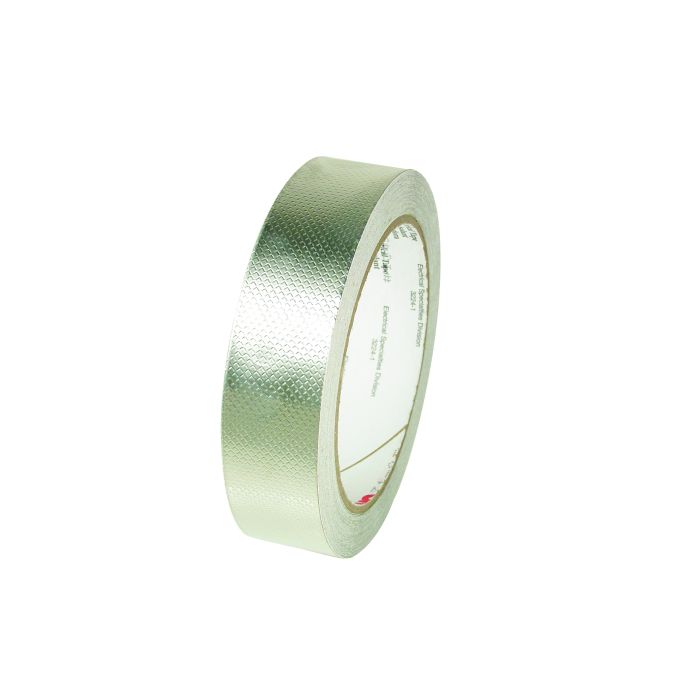

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 1-3/4 in x 18 yd, 3 in Paper Core, 5 Rolls/Case
3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Special Price
$182.87
Regular Price
$215.14
| UPC | 00051138510886 |
|---|---|
| 3M ID | 7010398892 |
| Packaging | Case |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
3M™ EMI Shielding Tape 1345 has an embossed, deadsoft, copper foil backing with a pressure sensitive, acrylic adhesive that ensures firm adherence. The tin plated coating on both sides of the tape's foil backing offers outstanding solderability and is resistant to oxidation and corrosion. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. Contact between the backing and the application substrate is established when the embossed backing edges cut through the adhesive layer. The tape withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
- Embossed, copper foil backing resists discoloration and oxidation
- Offers stable contact resistance and good shielding effectiveness
- Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
- Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
- Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
- Offers outstanding solderability with tin-plated coating
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
| 3M ID | 7010398892 |
|---|---|
| Part number | 1345 1.75"X18YD |
| Global Product Hierarchy | Tapes > Foil Tapes > Copper Tapes |
| Backing (Carrier) Material | Tin Plate Copper Foil, Embossed |
| Backing (Carrier) Thickness (Imperial) | 1.4 mil |
| Backing (Carrier) Thickness (Metric) | 0.035 mm |
| Product Type | simple |
| Quantity | 0 |
| Country of Origin | Taiwan |
| SAP Shelf Life In Days | 1825 |
| Base - Billing Unit | ROL |
| Base - Metric Gross Weight | 435.449 G |
| Base - Metric Height Dimension | 107.95 MM |
| Base - Metric Length Dimension | 12.7 MM |
| Base - Metric Width Dimension | 107.95 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 9.031514126020378 ci |
| Unit of Use - Customary Gross Weight | 0.9600007160614276 lbs |
| Unit of Use - Customary Net Weight | 0.959892689552957 lbs |
| Unit of Use - Customary Height Dimension | 4.25 in |
| Unit of Use - Customary Length Dimension | 0.5 in |
| Unit of Use - Customary Width Dimension | 4.25 in |
| Unit of Use - Metric Cubic Dimension | 0.148 CDM |
| Unit of Use - Metric Net Weight | 435.4 G |
| Unit of Use - Metric Height Dimension | 107.95 MM |
| Unit of Use - Metric Length Dimension | 12.7 MM |
| Unit of Use - Metric Width Dimension | 107.95 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1027.1454361806361 ci |
| Shipper - Customary Gross Weight | 5.099999808197832 lbs |
| Shipper - Customary Net Weight | 4.799463447764785 lbs |
| Shipper - Customary Height Dimension | 14.606299212598426 in |
| Shipper - Customary Length Dimension | 8.385826771653543 in |
| Shipper - Customary Width Dimension | 8.385826771653543 in |
| Shipper - Metric Cubic Dimension | 16831.898 CCM |
| Shipper - Metric Weight | 2313.321 G |
| Shipper - Metric Net Weight | 2177.0 G |
| Shipper - Metric Height Dimension | 37.1 CM |
| Shipper - Metric Length Dimension | 21.3 CM |
| Shipper - Metric Width Dimension | 21.3 CM |
| Shipper - Item Quantity | 5 |
| Shipper - Total Unit Quantity | 5 |
| Shipper - Previous Packaging Level Quantity | 5 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 98797.44168937157 ci |
| Pallet - Customary Gross Weight | 418.8782981512674 lbs |
| Pallet - Customary Net Weight | 359.95975858235886 lbs |
| Pallet - Customary Height Dimension | 48.818897637795274 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.619 M3 |
| Pallet - Metric Net Weight | 163.275 KG |
| Pallet - Metric Height Dimension | 1.24 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 375 |
| Pallet - Total Unit Quantity | 375 |
| Pallet - Previous Packaging Level Quantity | 75 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 25 |
