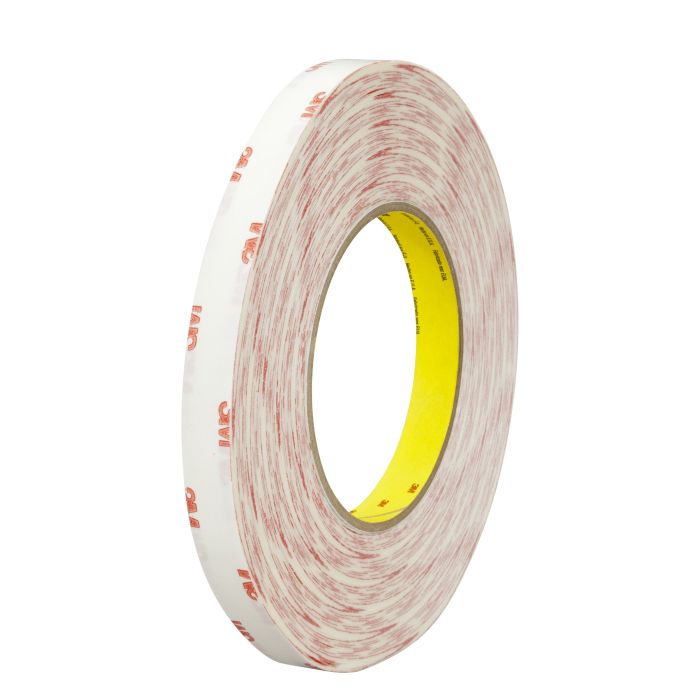

3M™ Double Coated Tissue Tape 9456, Clear, 2 in x 72 yd, 4 mil, 24 Roll/Case

Light Carrier, High Tack

The 3M™ Double Coated Tissue Tape 9456 is a 5.0 mil tape with a 340 high tack acrylic adhesive that delivers a good bond for attaching foam to plastics and other substrates. This tape also has a tissue carrier for dimensional stability and improved handling, while still maintaining the flexibility of a free film adhesive. The tissue carrier is on a 3.2 mil 55-lb. densified Kraft DK paper liner. Use this tape in a variety of applications, especially those requiring adhesion to high surface energy (HSE) materials.

Recommended Applications

End-tabbing Bonding fabric to rigid cardboard Attaching foam to plastics Closing chipboard mailers

Joining and bonding in general industrial applications

About 3M™ Adhesive 340

Like other 3M™ Double Coated Tapes offered by 3M, this product uses Adhesive 340, which delivers a combination of high initial adhesion, good shear strength and holding power when applied to a wide variety of materials, including plastics and foams. Additionally, the 340 adhesive in 3M™ Double Coated Tissue Tape 9456 provides excellent chemical and thermal resistance and can be used in a wide range of temperatures and demanding work conditions. Use this tape in temperatures ranging from -40°F (-40°C) to 150°F (66°C). Collectively, these features make this tape an excellent option for a number of applications across many industries, including: paper, converter solutions, automotive, medical, general industrial, retail, print, point of purchase and packaging.

What is Double Coated Tape?

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.

Bringing Better Ideas to the Surface through Science

3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.

• 5 mil double coated tape with tissue carrier adds dimensional stability for handling
• Good adhesion to high surface energy (HSE) materials
• Good temperature, chemical and humidity resistance
• Range of uses – joining and bonding in general industrial applications
• 55# densified kraft (DK) paper liner is compatible with rotary die cutting
