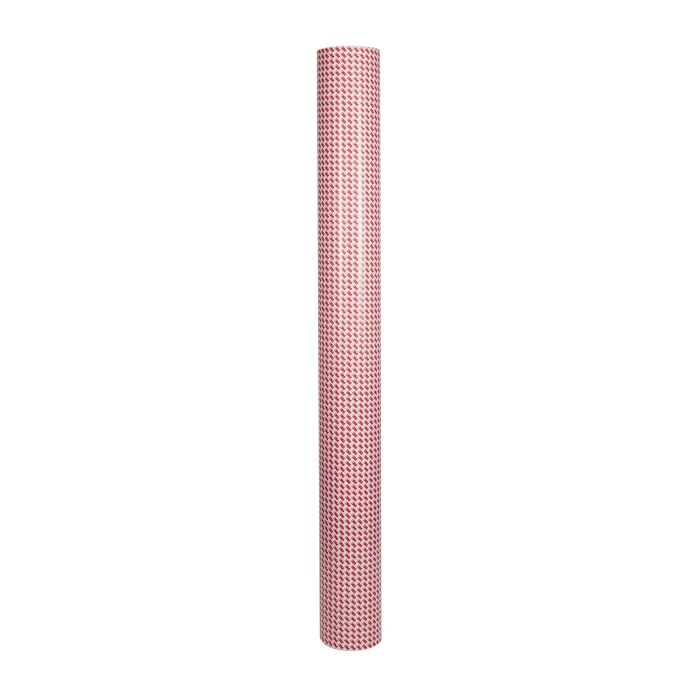

3M™ Double Coated Tape Paper Liner GPT-020, 1540 mm x 50 m, 1 Roll/Case
3M™ Double Coated Tape GPT-020 is a transparent double coated pressure sensitive adhesive (PSA) tape with clear polyester carrier delivered on a paper liner. The tape is transparent and 200 microns (8 mils) thick. It features a modified solventless acrylic adhesive that combines a high level of peel and shear performance enabling high adhesion to a wide variety of substrates, both to high and some low surface energy materials. It offers high initial tack and humidity resistance, and provides high temperature resistance up to 375°F (190°C) with 500g/1”x1” and up to 320°F (160°C) with 1000g/1”x1”per SAFT, PSTC 17.
Special Price
$988.05
Regular Price
$1,162.41
| UPC | 04064035052898 |
|---|---|
| 3M ID | 7100269604 |
| Packaging | Roll |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
- Versatile and capable of bonding a wide variety of substrates from high to low surface energy
- High initial tack and humidity resistance
- High temperature resistance up to 375°F (190°C) per SAFT, PSTC 17 with 500g/1”x1”
| 3M ID | 7100269604 |
|---|---|
| Part number | GPT-020 |
| Global Product Hierarchy | Tapes > Bonding, Mounting & Transfer Tapes > Bonding Tapes |
| Backing (Carrier) Material | Paper |
| Backing (Carrier) Thickness (Imperial) | 0.47 mil |
| Backing (Carrier) Thickness (Metric) | 0.012 mm |
| Color Family | Transparent |
| Face Side Adhesive Thickness (Imperial) | 3.75 mil |
| Product Color | Transparent |
| Product Sub-Category | Double Coated Tapes |
| Product Type | simple |
| Quantity | 0 |
| Shelf Life | 18.0 Month |
| Trademark 1 | 3M™ |
| Country of Origin | Poland |
| SAP Shelf Life In Days | 547 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 6.417322835 |
| Base - Customary Length Dimension | 60.62992126 |
| Base - Customary Width Dimension | 6.417322835 |
| Base - Metric Gross Weight | 25.296 KG |
| Base - Metric Height Dimension | 163.0 MM |
| Base - Metric Length Dimension | 1540.0 MM |
| Base - Metric Width Dimension | 163.0 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 2496.847513380066 ci |
| Consumer - Customary Gross Weight | 55.76813384228663 lbs |
| Consumer - Customary Net Weight | 52.74559622773196 lbs |
| Consumer - Customary Height Dimension | 6.417322834645669 in |
| Consumer - Customary Length Dimension | 60.62992125984252 in |
| Consumer - Customary Width Dimension | 6.417322834645669 in |
| Consumer - Metric Cubic Dimension | 40.916 CDM |
| Consumer - Metric Net Weight | 23.925 KG |
| Consumer - Metric Height Dimension | 163.0 MM |
| Consumer - Metric Length Dimension | 1540.0 MM |
| Consumer - Metric Width Dimension | 163.0 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 4355.09155270279 ci |
| Shipper - Customary Gross Weight | 60.737353231933774 lbs |
| Shipper - Customary Net Weight | 52.74559622773196 lbs |
| Shipper - Customary Height Dimension | 8.307086614173228 in |
| Shipper - Customary Length Dimension | 63.110236220472444 in |
| Shipper - Customary Width Dimension | 8.307086614173228 in |
| Shipper - Metric Cubic Dimension | 71367.164 CCM |
| Shipper - Metric Weight | 27.55 KG |
| Shipper - Metric Net Weight | 23.925 KG |
| Shipper - Metric Height Dimension | 211.0 MM |
| Shipper - Metric Length Dimension | 1603.0 MM |
| Shipper - Metric Width Dimension | 211.0 MM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 64563.12125222676 ci |
| Pallet - Customary Gross Weight | 593.3543370670013 lbs |
| Pallet - Customary Net Weight | 474.71036604958766 lbs |
| Pallet - Customary Height Dimension | 30.62992125984252 in |
| Pallet - Customary Length Dimension | 66.92913385826772 in |
| Pallet - Customary Width Dimension | 31.496062992125985 in |
| Pallet - Metric Cubic Dimension | 1.058 M3 |
| Pallet - Metric Net Weight | 215.325 KG |
| Pallet - Metric Height Dimension | 778.0 MM |
| Pallet - Metric Length Dimension | 1700.0 MM |
| Pallet - Metric Width Dimension | 800.0 MM |
| Pallet - Item Quantity | 9 |
| Pallet - Total Unit Quantity | 9 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 3 |
