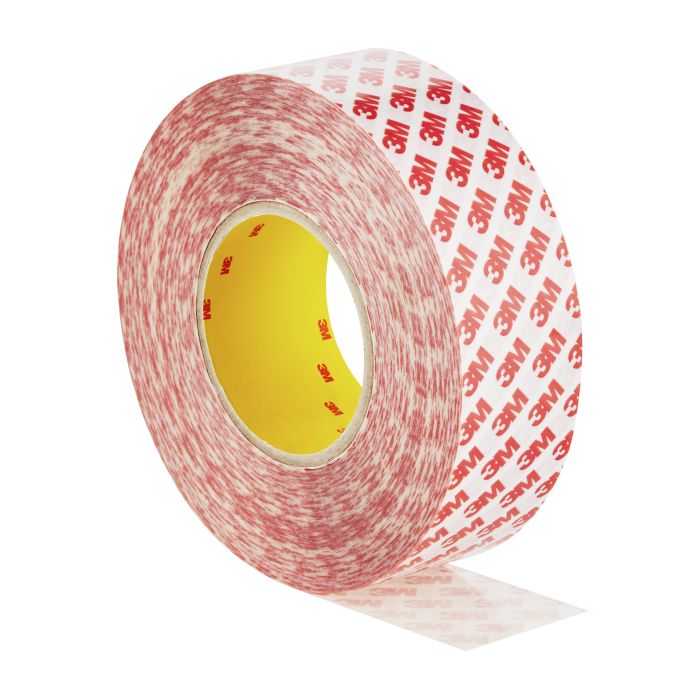

3M™ Double Coated Tape GPT-020F, Transparent, Level Wound, 9 mm x 3850 m, 1 Roll/Case

3M™ Double Coated Tape GPT-020F is a transparent double coated pressure sensitive adhesive tape with clear polyester carrier delivered on a BOPP film liner. 3M™ Double Coated Tape GPT-020F is a transparent, 200 micron (8 mil) thick, modified solventless acrylic adhesive with a white printed BOPP film liner with a red 3M logo. 3M™ Double Coated Tape GPT-020F combines a high level of peel and shear performance enabling high adhesion to a wide variety of substrates, both to high and some low surface energy materials. It offers high initial tack and humidity resistance, providing easy handling and converting due to the film liner delivery. Provides high temperature resistance up to 375°F (190°C) with 500g/1”x1” and up to 320°F (160°C) with 1000g/1”x1”per SAFT, PSTC 17.
Special Price $536.17 Regular Price $630.79
UPC 04054596935556
3M ID 7100243949
Packaging Roll
Sorry, We Are Out of Stock
  • Get up to 15% OFF
  • Exclusive Deals and Discounts
  • Secure Shopping Experience
  • Fast and Friendly Customer Support

  • Providing versatility with purpose with the capability to bond to a wide variety of substrates from high to low surface energy.
  • High initial tack and humidity resistance.
  • Easy handling and converting due to film liner delivery.
More Information
3M ID 7100243949
Part number GPT-020F
Global Product Hierarchy Tapes > Bonding, Mounting & Transfer Tapes > Bonding Tapes
Backing (Carrier) Material Polyester
Color Family Transparent
Product Color Transparent
Product Sub-Category Double Coated Tapes
Product Type simple
Quantity 0
Trademark 1 3M™
Country of Origin Poland
Sales Unit RO
SAP Shelf Life In Days 547
Base - Billing Unit ROL
Base - Customary Height Dimension 13.77952756
Base - Customary Length Dimension 14.13385827
Base - Customary Width Dimension 14.13385827
Base - Metric Gross Weight 11.074 KG
Base - Metric Height Dimension 350.0 MM
Base - Metric Length Dimension 359.0 MM
Base - Metric Width Dimension 359.0 MM
Base - Item Quantity 1
Base - Unit ROL
Consumer - Billing Unit ROL
Consumer - Customary Cubic Dimension 2752.659048625184 ci
Consumer - Customary Gross Weight 24.41399091435334 lbs
Consumer - Customary Net Weight 23.604894412134843 lbs
Consumer - Customary Height Dimension 13.779527559055119 in
Consumer - Customary Length Dimension 14.133858267716535 in
Consumer - Customary Width Dimension 14.133858267716535 in
Consumer - Metric Cubic Dimension 45.108 CDM
Consumer - Metric Net Weight 10.707 KG
Consumer - Metric Height Dimension 350.0 MM
Consumer - Metric Length Dimension 359.0 MM
Consumer - Metric Width Dimension 359.0 MM
Consumer - Item Quantity 1
Consumer - Unit ROL
Shipper - Billing Unit ROL
Shipper - Customary Cubic Dimension 8228.990867430553 ci
Shipper - Customary Gross Weight 25.999114579462614 lbs
Shipper - Customary Net Weight 23.604894412134843 lbs
Shipper - Customary Height Dimension 23.89763779527559 in
Shipper - Customary Length Dimension 23.385826771653544 in
Shipper - Customary Width Dimension 14.724409448818898 in
Shipper - Metric Cubic Dimension 134.849 CDM
Shipper - Metric Weight 11.793 KG
Shipper - Metric Net Weight 10.707 KG
Shipper - Metric Height Dimension 607.0 MM
Shipper - Metric Length Dimension 594.0 MM
Shipper - Metric Width Dimension 374.0 MM
Shipper - Item Quantity 1
Shipper - Total Unit Quantity 1
Shipper - Previous Packaging Level Quantity 1
Shipper - Unit CS
Pallet - Billing Unit ROL
Pallet - Customary Cubic Dimension 79880.08102000455 ci
Pallet - Customary Gross Weight 211.68786414991945 lbs
Pallet - Customary Net Weight 141.62936647280907 lbs
Pallet - Customary Height Dimension 53.7007874015748 in
Pallet - Customary Length Dimension 47.24409448818898 in
Pallet - Customary Width Dimension 31.496062992125985 in
Pallet - Metric Cubic Dimension 1.309 M3
Pallet - Metric Net Weight 64.242 KG
Pallet - Metric Height Dimension 1364.0 MM
Pallet - Metric Length Dimension 1200.0 MM
Pallet - Metric Width Dimension 800.0 MM
Pallet - Item Quantity 6
Pallet - Previous Packaging Level Unit BOX
Pallet - Unit PAL
