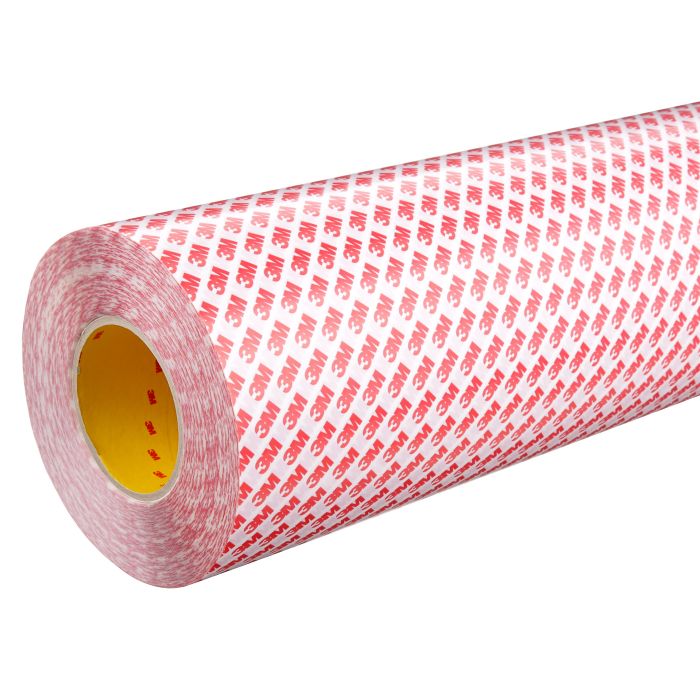

3M™ Double Coated Tape, GPT-020F, 1540 mm x 50 m, 1 Roll/Case
3M™ Double Coated Tape GPT-020F is a transparent double coated pressure sensitive adhesive tape with clear polyester carrier delivered on a BOPP film liner. 3M™ Double Coated Tape GPT-020F is a transparent, 200 micron (8 mil) thick, modified solventless acrylic adhesive with a white printed BOPP film liner with a red 3M logo. 3M™ Double Coated Tape GPT-020F combines a high level of peel and shear performance enabling high adhesion to a wide variety of substrates, both to high and some low surface energy materials. It offers high initial tack and humidity resistance, providing easy handling and converting due to the film liner delivery. Provides high temperature resistance up to 375°F (190°C) with 500g/1”x1” and up to 320°F (160°C) with 1000g/1”x1”per SAFT, PSTC 17.
Special Price
$988.03
Regular Price
$1,162.39
| UPC | 05900422114260 |
|---|---|
| 3M ID | 7100223650 |
| Packaging | Roll |
Sorry, We Are Out of Stock
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
- Providing versatility with purpose with the capability to bond to a wide variety of substrates from high to low surface energy.
- High initial tack and humidity resistance.
- Easy handling and converting due to film liner delivery.
| 3M ID | 7100223650 |
|---|---|
| Part number | GPT-020F |
| Global Product Hierarchy | Tapes > Bonding, Mounting & Transfer Tapes > Bonding Tapes |
| Backing (Carrier) Material | Polyester |
| Color Family | Transparent |
| Product Color | Transparent |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Country of Origin | Poland |
| Sales Unit | RO |
| SAP Shelf Life In Days | 547 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 60.62992126 |
| Base - Customary Length Dimension | 6.417322835 |
| Base - Customary Width Dimension | 6.417322835 |
| Base - Metric Gross Weight | 25.153 KG |
| Base - Metric Height Dimension | 1540.0 MM |
| Base - Metric Length Dimension | 163.0 MM |
| Base - Metric Width Dimension | 163.0 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Consumer - Billing Unit | ROL |
| Consumer - Customary Cubic Dimension | 2496.847513380066 ci |
| Consumer - Customary Gross Weight | 55.452872807362255 lbs |
| Consumer - Customary Net Weight | 52.45458604164792 lbs |
| Consumer - Customary Height Dimension | 60.62992125984252 in |
| Consumer - Customary Length Dimension | 6.417322834645669 in |
| Consumer - Customary Width Dimension | 6.417322834645669 in |
| Consumer - Metric Cubic Dimension | 40.916 CDM |
| Consumer - Metric Net Weight | 23.793 KG |
| Consumer - Metric Height Dimension | 1540.0 MM |
| Consumer - Metric Length Dimension | 163.0 MM |
| Consumer - Metric Width Dimension | 163.0 MM |
| Consumer - Item Quantity | 1 |
| Consumer - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 4355.081544808759 ci |
| Shipper - Customary Gross Weight | 60.32949804689175 lbs |
| Shipper - Customary Net Weight | 52.45458604164792 lbs |
| Shipper - Customary Height Dimension | 8.307086614173228 in |
| Shipper - Customary Length Dimension | 63.110236220472444 in |
| Shipper - Customary Width Dimension | 8.307086614173228 in |
| Shipper - Metric Cubic Dimension | 71.367 CDM |
| Shipper - Metric Weight | 27.365 KG |
| Shipper - Metric Net Weight | 23.793 KG |
| Shipper - Metric Height Dimension | 211.0 MM |
| Shipper - Metric Length Dimension | 1603.0 MM |
| Shipper - Metric Width Dimension | 211.0 MM |
| Shipper - Item Quantity | 1 |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 64563.12125222676 ci |
| Pallet - Customary Gross Weight | 589.6946635147324 lbs |
| Pallet - Customary Net Weight | 472.0912743748313 lbs |
| Pallet - Customary Height Dimension | 30.62992125984252 in |
| Pallet - Customary Length Dimension | 66.92913385826772 in |
| Pallet - Customary Width Dimension | 31.496062992125985 in |
| Pallet - Metric Cubic Dimension | 1.058 M3 |
| Pallet - Metric Net Weight | 214.137 KG |
| Pallet - Metric Height Dimension | 778.0 MM |
| Pallet - Metric Length Dimension | 1700.0 MM |
| Pallet - Metric Width Dimension | 800.0 MM |
| Pallet - Item Quantity | 9 |
| Pallet - Total Unit Quantity | 9 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 3 |
| Pallet - Shipping Container Per Layer Quantity | 3 |
