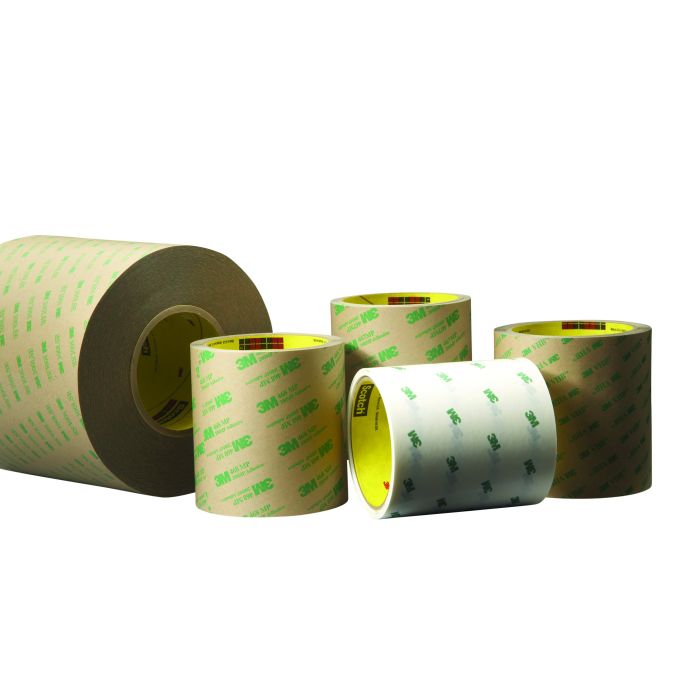

3M™ Double Coated Tape 9828PC, Clear, 54 in x 250 yd, 4 mil, 1 Roll/Case

Bonds a Range of Materials, Including HSE Plastics and Foams

A thin, consistent alternative to glue, 3M™ Double Coated Tape 9828PC can be used for foam, fabric and gasket attachment. This tape offers long-term temperature performance up to 120°F (49°C). A clear .5 mil polyester film carrier between adhesive layers adds dimensional stability to foams and other substrates and provides easier handling during slitting and die-cutting. 3M™ Adhesive 340 is applied to the liner side of the film at 1.5 mils and at 2.0 mils on the face side for effective wet-out. 74# polycoated kraft liner helps protect against moisture during storage.

Recommended Applications

General purpose foam lamination General purpose lamination for fabricated parts

Gasket attachment

About 3M™ Adhesive 340

Double coated film tapes with 3M™ Adhesive 340 are ideal for applications where a combination of high initial adhesion and good shear strength for a wide variety of materials, including many plastics and foams, is required.

What is Double Coated Tape?

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.

Double coated tapes offer a multitude of advantages over mechanical fasteners or liquid glues, including an even regular bond without gaps, reduced risk of corrosion, fast application, more flexible product design and improved appearance.

Bringing Better Ideas to the Surface through Science

3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.

• Very thin alternative to glues for foam lamination and gasket attachment
• Medium-firm acrylic adhesive delivers good adhesion to many plastics and foams
• .5 mil clear polyester (PET) film carrier adds dimensional stability and improved handling
• 74# polycoated kraft liner helps protect against moisture during storage
• Adhesive on both sides supplies high initial adhesion and high tack to high surface energy (HSE) substrates
