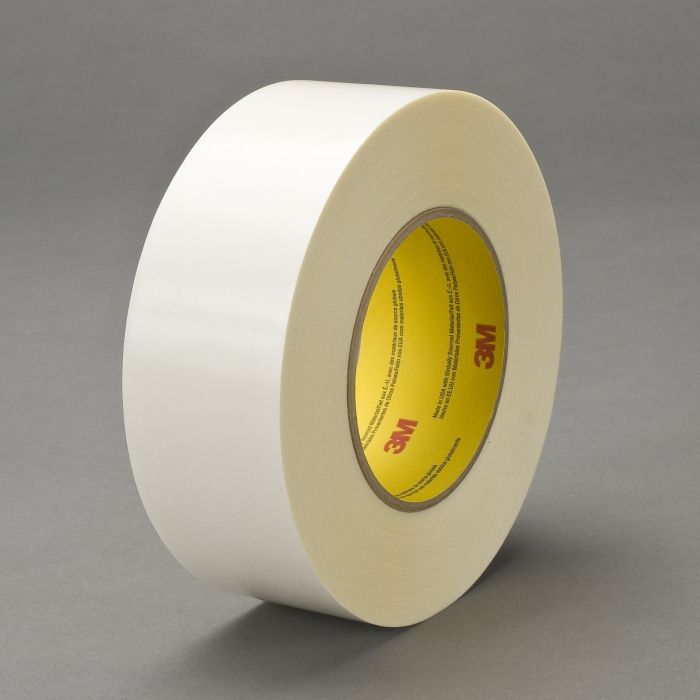

3M™ Double Coated Tape 9740, Clear, 72 mm x 55 m, 3.5 mil, 16 Roll/Case

Tape Bonds a Wide Variety of Surfaces

The robust 55 lb. densified kraft paper liner on 3M™ Double Coated Tape 9740 improves handling, protects against humidity and is ideal for die-cutting, automated dispensers and laminating applications. Considered a razor-thin alternative to glue, screws and rivets, double coated tape is often used for foam and gasket attachment in general industrial applications.

Recommended Applications

Attachment to irregular surfaces Bonding to plastics and metal extrusions Applications where adhesion to low surface energy substrates is needed Bonding of decorative trim

High speed flying splices where heat resistance is required

Superior Bonding and Conformability on Irregular Surfaces

Acrylic adhesive offers high adhesion to a wide variety of substrates, including most low surface energy plastics. The adhesive allows for superior bonding and conformability to irregular and flat surfaces. A thin polyester carrier between the adhesive layers improves the handling and strength of 3M™ Double Coated Tape 9740.

Excellent Temperature Resistance

3M™ Double Coated Tape 9740 offers an excellent continuous temperature resistance range from 10°F to 425°F (-12°C to 219°C). The ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. However, once properly applied, low temperature holding is generally satisfactory.

A Solution for Many Bonding Applications

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in splicing, construction, fabrication, arts and hobby.

Bringing Better Ideas to the Surface through Science and Innovation

The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, 3M technologies help customers like you deliver competitive products to the market faster and more efficiently.

• Delivers excellent continuous performance across broad temperature range
• Acrylic adhesive bonds well to most substrates including most low surface energy plastics
• Thin polyester film carrier adds dimensional stability and improved handling during die-cutting
• Provides superior bonding and conformability to irregular and flat surfaces
• Designed where higher temperature, shear and plasticizer resistance is required
• Performance grade splicing tape for corrugators and other high temperature splicing applications
