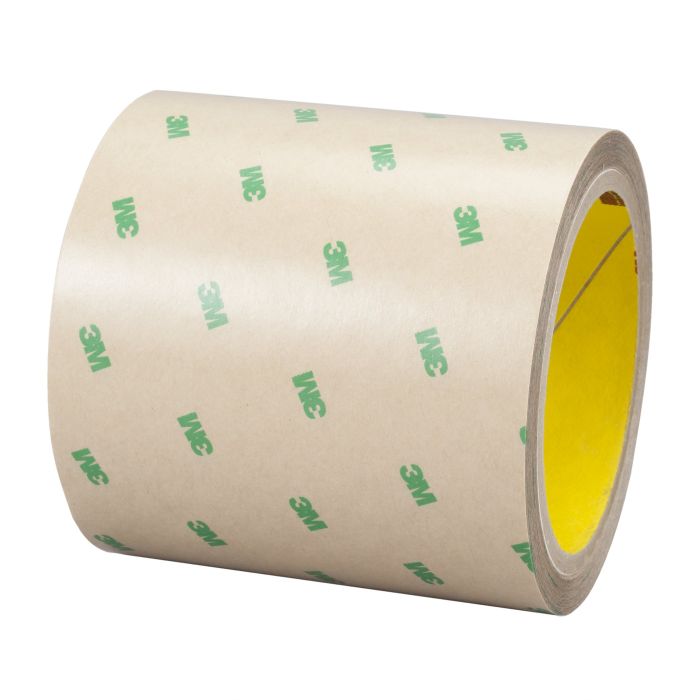

3M™ Double Coated Tape 9690+ offers high adhesion to a wide variety of substrates, including plastics and foams. The polyester film (PET) carrier provides dimensional stability and improved handling during slitting and die cutting operations.
Bonds to a Wide Variety of Substrates 3M™ Double Coated Tape 9690 features good conformability, making it ideal for die-cutting and laminating applications. This double sided tape is often used for a variety of applications, including foam lamination and gasket attachment in general industrial applications. Recommended Applications Cellular phone lens attachment Foam lamination Nameplates Appliques Decorative trim Thermal and sound dampening applications in the electronics and appliance industry Solvent Free Acrylic Adhesive Provides a Consistent, Permanent Bond 3M™ Adhesive 300MP+ offers an excellent bond to various foams, plastics, and felt substrates, and has good shear strength at elevated temperatures. A thin, tough, polyester film (PET) carrier between the adhesive layers improves the handling and strength of 3M™ Double Coated Tape 9690+. Double Coated Tapes Provide Solutions for Many Bonding Applications In general, double coated tape is composed of a paper, film or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobbies. Bringing Better Ideas to the Surface through Science and Innovation In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Offers excellent adhesion to a wide variety of substrates, including many plastics and foams
Polyester film (PET) carrier provides dimensional stability
Supplied with an 83 lb. polycoated kraft liner
Temperature performance up to 250°F (121°C) for short term exposure and 150°F (66°C) for long term exposure
