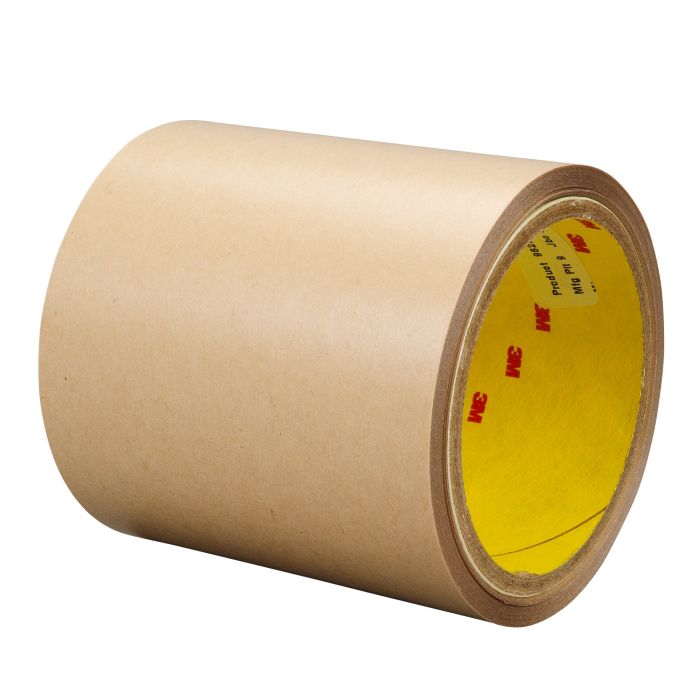

3M™ Double Coated Tape 9629PC, Clear, 4 mil, 1 in x 60 yd, 36 Roll/Case

Bonds to Difficult Surfaces Include Polypropylene and Powder Coated Paint

Considered a razor-thin alternative to glue, screws and rivets, 3M™ Double Coated Tape 9629PC is often used for a variety of applications, including general purpose joining, mounting and splicing. The tape offers excellent adhesion to a wide variety of difficult-to-bond-to substrates, including polyproplylene, HDPE and LDPE. The clear polyester (PET) carrier and tan 58# polycoated kraft paper liner on 3M™ Double Coated Tape 9629PC improve handling during converting and application.

Recommended Applications

Powder coated painted surfaces

Most plastics including polypropylene

Electronics

Automotive

About 3M™ Adhesive 360

3M™ Double Coated Tape 9629B features 3M™ Quick Bonding Adhesive 360, which features very high initial bond strength to metals and most plastics. This adhesive builds bond strength very quickly, enabling faster cycle times. It is excellent for bonding dissimilar materials, such as bonding to steel to plastics like polypropylene. This tape is commonly used in electronics, automotive and consumable medical device assembly.

What are Double Coated Tapes?

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied manually or automatically. Applications for double coated tape are found in construction, transportation, medical and general industrial markets.

Bringing Better Ideas to the Surface through Science and Innovation

The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, 3M IATD technologies help customers like you deliver competitive products to the market faster and more efficiently.

• Excellent adhesion to difficult surfaces such as HDPE, LDPE, and PP
• 3M™ Adhesive 360 delivers very high initial bond strength
• Provides high bond strength to dissimilar materials such as metals and most plastics
• Polyester carrier adds dimensional stability and improved handling
• 58# PCK liner offers improved moisture stability
