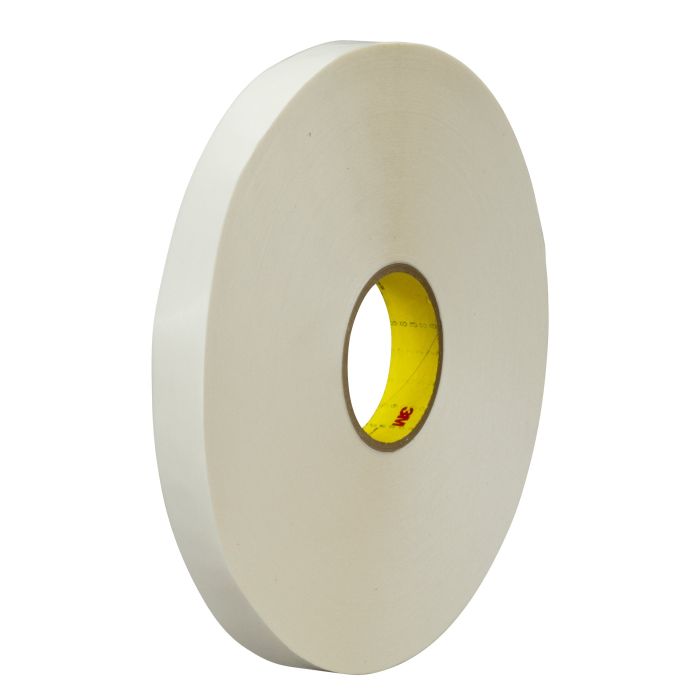

3M™ Double Coated Tape 9578, 4 mil, Roll, Config
| 3M ID | 7100012782 |
|---|
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Made for Die-Cutting
3M™ Double Coated Tape 9578 is a 4.0 mil double coated tape constructed on a hand-tearable translucent polypropylene carrier coated on both sides with 3M™ Adhesive 400. The thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. A hard, smooth 54 lb. densified kraft paper release liner provides reliable performance for industrial applications like die-cutting and automated dispensers. It works exceptionally well in low temperatures, with an operating range of -60° to 250°F (-51°C to 121°C). It provides medium adhesion to metals, HSE and LSE plastics, and foam, and shows medium resistance to chemical environments. It also stands up well to humidity.
Recommended Applications
Splicing paper, film and foils Core starting Miscellaneous joining and bonding
Window label applications
Adhere with Confidence
3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system. It features an excellent balance of good initial adhesion (quick stick) and good shear holding power. Shear strength is the measure of pull force directed across the bonded surface, forcing the two surfaces to slide over each other.
Bringing Better Ideas to the Surface through Science and Innovation
The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.
- Polypropylene carrier increases dimensional stability for easy handling
- 60 lb. densified kraft paper liner supports applications like die-cutting
- Hand tearable for easy use
- Good low temperature performance and peel strength on many surfaces
| 3M ID | 7100012782 |
|---|---|
| Keywords | 3M, Double Coated Film Tape, 3M™ Double Coated Film Tape 9578, medium tack tape, pressure sensitive adhesive, 3M™ Acrylic Adhesive 400, high initial adhesion, good holding power, die-cutting, web splicing, general purpose bonding, polypropylene carrier, dimensional stability, easy handling, densified kraft paper liner, hand tearable, low temperature performance, peel strength, industrial applications, automated dispensers, medium adhesion, metals, plastics, foam, chemical resistance, humidity resistance, splicing paper, splicing film, splicing foils, core starting, joining and bonding, window label applications, acrylic adhesive, quick stick, shear holding power, adhesion science, innovative solutions, 3M Industrial Adhesives and Tapes Division, automotive industry, commercial solutions, electronics industry, manufacturing industry, transportation industry, bonding assembly, building maintenance |
| Global Product Hierarchy | Tapes > Splicing & Tabbing Tapes |
| Backing (Carrier) Material | Polypropylene Film |
| Backing (Carrier) Thickness (Imperial) | 0.095 mil |
| Backing (Carrier) Thickness (Metric) | 0.025 mm |
| Color Family | Transparent |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Number of Adhesive Sides | Double-sided |
| Product Color | Transparent |
| Product Number | 9578 |
| Product Type | simple |
| Quantity | 0 |
| Tape Type | Double Coated |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 547 |
| Base - Billing Unit | ROL |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Shipper - Total Unit Quantity | 1 |
| Shipper - Previous Packaging Level Quantity | 1 |
| Pallet - Total Unit Quantity | 1 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Pallet Layer Quantity | 1 |
| Pallet - Shipping Container Per Layer Quantity | 1 |
