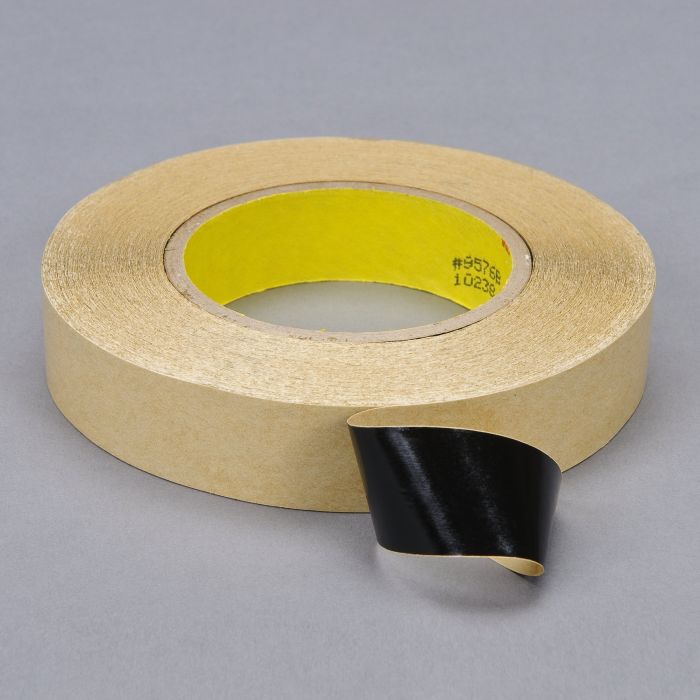

3M™ Double Coated Tape 9576B, Black, 38 mm x 50 m, 4 mil, 24 Roll/Case
| UPC | 00021200429859 |
|---|---|
| 3M ID | 7100117047 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Ideal for Rigorous Splicing Applications
3M™ Double Coated Tape 9576B is a double-sided tape with a hand tearable black polypropylene carrier lined on both sides with 3M™ Adhesive 400. Once bonded, this tape provides excellent peel and shear strength – making it ideal for rigorous splicing applications and bonding plastics to metals. 3M™ Double Coated Tape 9576B is mounted on a tan 60# densified kraft paper liner for ease in die cutting applications.
Recommended Applications
Web splicing Core starting
General purpose bonding
Provides Reliable Performance
The medium-firm pressure sensitive acrylic adhesive system features an excellent balance of good initial adhesion (quick stick) and good shear holding power. The formulation gives a consistently strong bond across a range of temperatures, up to 165°F (75°C). A thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications, such as die-cutting and automated dispensers.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby, and the web processing industry, among others.
- Medium tack double coated tape is ideal for general splicing, core starting and roll closing
- Excellent peel and shear strength to withstand splicing applications
- Bonds well to most substrates, including low surface energy plastics
- Excellent UV and heat resistance
- Conformable to irregular surfaces
- Double sided adhesion increases dimensional stability for easy handling
| 3M ID | 7100117047 |
|---|---|
| Keywords | 3M, double coated tape, 3M™ Double Coated Tape 9576B, medium tack tape, splicing tape, roll closing tape, pressure sensitive adhesive, high initial adhesion, good holding power, web splicing, general purpose bonding, low surface energy plastics, UV resistance, heat resistance, hand tearable tape, polypropylene carrier, adhesive 400, die-cutting applications, core starting, industrial applications, acrylic adhesive, temperature resistance, dimensional stability, automated dispensers, commercial solutions, design and construction, manufacturing, transportation, appliance bonding, assembly, building maintenance, repair, defense, heavy industrial, marine applications, metalworking, personal recreation vehicles, rail industry. |
| Global Product Hierarchy | Tapes > Bonding, Mounting & Transfer Tapes > Bonding Tapes |
| Backing (Carrier) Material | Polypropylene Film |
| Backing (Carrier) Thickness (Imperial) | 1.0 mil |
| Backing (Carrier) Thickness (Metric) | 0.025 mm |
| Color Family | Black |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Product Color | Black |
| Product Number | 9576B |
| Product Type | simple |
| Quantity | 0 |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 1.5 |
| Base - Customary Length Dimension | 5.73 |
| Base - Customary Width Dimension | 5.72992126 |
| Base - Metric Gross Weight | 387.549 G |
| Base - Metric Height Dimension | 38.1 MM |
| Base - Metric Length Dimension | 145.542 MM |
| Base - Metric Width Dimension | 145.54 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 49.24866345795684 ci |
| Unit of Use - Customary Gross Weight | 0.8543992924748712 lbs |
| Unit of Use - Customary Net Weight | 0.8542912659664006 lbs |
| Unit of Use - Customary Height Dimension | 1.5 in |
| Unit of Use - Customary Length Dimension | 5.73 in |
| Unit of Use - Customary Width Dimension | 5.72992125984252 in |
| Unit of Use - Metric Cubic Dimension | 807.041 CCM |
| Unit of Use - Metric Net Weight | 387.5 G |
| Unit of Use - Metric Height Dimension | 38.1 MM |
| Unit of Use - Metric Length Dimension | 145.542 MM |
| Unit of Use - Metric Width Dimension | 145.54 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1897.618755867433 ci |
| Shipper - Customary Gross Weight | 21.605301694118 lbs |
| Shipper - Customary Net Weight | 20.502990383193616 lbs |
| Shipper - Customary Height Dimension | 10.590551181102363 in |
| Shipper - Customary Length Dimension | 13.385826771653543 in |
| Shipper - Customary Width Dimension | 13.385826771653543 in |
| Shipper - Metric Cubic Dimension | 31096.4 CCM |
| Shipper - Metric Weight | 9.8 KG |
| Shipper - Metric Net Weight | 9.3 KG |
| Shipper - Metric Height Dimension | 26.9 CM |
| Shipper - Metric Length Dimension | 34.0 CM |
| Shipper - Metric Width Dimension | 34.0 CM |
| Shipper - Item Quantity | 24 |
| Shipper - Total Unit Quantity | 24 |
| Shipper - Previous Packaging Level Quantity | 24 |
| Shipper - Previous Packaging Level Unit | RLS |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 95563.18325235076 ci |
| Pallet - Customary Gross Weight | 813.5057474621983 lbs |
| Pallet - Customary Net Weight | 738.1076537949701 lbs |
| Pallet - Customary Height Dimension | 47.24409448818898 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.566 M3 |
| Pallet - Metric Net Weight | 334.8 KG |
| Pallet - Metric Height Dimension | 1.2 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 864 |
| Pallet - Total Unit Quantity | 864 |
| Pallet - Previous Packaging Level Quantity | 36 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
