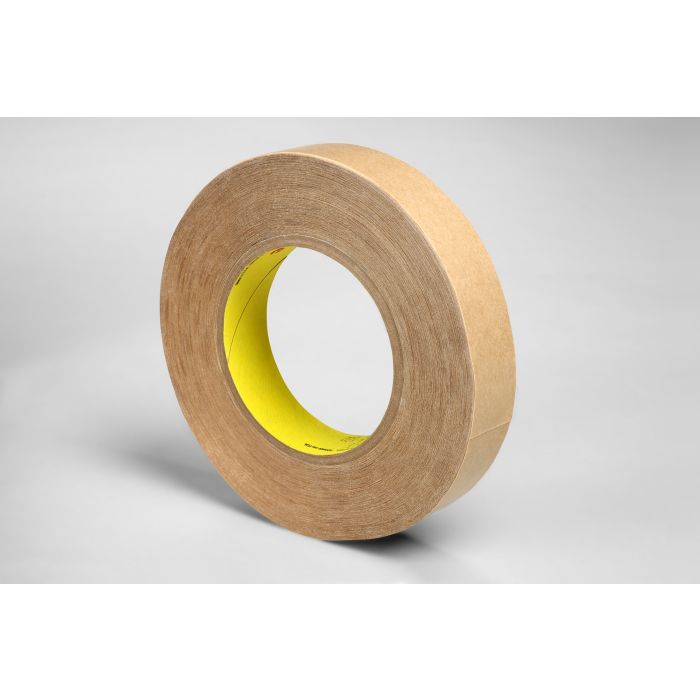

3M™ Double Coated Tape 9576, Clear, 1/2 in x 60 yd, 4 mil, 72 Roll/Case
| UPC | 00021200872877 |
|---|---|
| 3M ID | 7000123459 |
| Packaging | Case |
- Get up to 15% OFF
- Exclusive Deals and Discounts
- Secure Shopping Experience
- Fast and Friendly Customer Support
Ideal for Rigorous Splicing Applications
3M™ Double Coated Tape 9576 is a 4.0 mil double coated tape with a hand-tearable clear polypropylene carrier lined on both sides with 3M™ Adhesive 400. Once bonded, this tape provides excellent peel and shear strength – making it ideal for rigorous splicing applications and bonding plastics to metals. 3M™ Double Coated Tape 9576 is mounted on a tan 60# densified kraft paper liner for ease in die-cutting applications.
Recommended Applications
Web splicing
Core starting
General purpose bonding
Provides Reliable Performance
The medium-firm pressure sensitive acrylic adhesive system features an excellent balance of good initial adhesion (quick stick) and good shear holding power. The formulation gives a consistently strong bond across a range of temperatures, up to 165°F (75°C). A thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications, such as die-cutting and automated dispensers.
Understanding Double Coated Tape
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby industries, among others.
- Medium tack double coated tape for roll-to-roll splicing, core starting and roll closing
- Excellent peel and shear strength to withstand rigorous splicing applications
- Bonds well to most substrates, including low surface energy plastics
- Excellent UV and heat resistance
- Conformable to irregular surfaces
- Double sided adhesion increases dimensional stability for easy handling
| 3M ID | 7000123459 |
|---|---|
| Keywords | 3M, Double Coated Tape, 3M™ Double Coated Tape 9576, medium tack tape, splicing tape, roll closing tape, high peel strength, shear strength, UV resistance, heat resistance, conformable tape, adhesive tape, bonding tape, low surface energy plastics, splicing applications, polypropylene carrier, acrylic adhesive, pressure sensitive adhesive, clear polypropylene carrier, die-cutting tape, web splicing, core starting, general purpose bonding, industrial tape, hand-tearable tape, adhesives, manufacturing tape, construction tape, bonding metals to plastics, tape for irregular surfaces, automated dispensers, commercial solutions, design and construction, transportation tape, appliance tape, building maintenance tape, repair tape, defense applications, heavy industrial tape, marine applications, metalworking tape, paper and print tape, personal recreation vehicles, rail industry tape |
| Global Product Hierarchy | Tapes > Splicing & Tabbing Tapes |
| Application | Zero-Speed and General Splicing |
| Backing (Carrier) Material | Polypropylene |
| Backing (Carrier) Thickness (Imperial) | 1.0 mil |
| Backing (Carrier) Thickness (Metric) | 0.025 mm |
| Color Family | Transparent |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Product Color | Transparent |
| Product Number | 9576 |
| Product Type | simple |
| Quantity | 0 |
| Tape Type | Single Coated |
| Trademark 1 | 3M™ |
| Country of Origin | United States |
| Sales Unit | RO |
| SAP Shelf Life In Days | 730 |
| Base - Billing Unit | ROL |
| Base - Customary Height Dimension | 0.5 |
| Base - Customary Length Dimension | 5.562992126 |
| Base - Customary Width Dimension | 5.562992126 |
| Base - Metric Gross Weight | 150.593 G |
| Base - Metric Height Dimension | 12.7 MM |
| Base - Metric Length Dimension | 141.3 MM |
| Base - Metric Width Dimension | 141.3 MM |
| Base - Item Quantity | 1 |
| Base - Unit | ROL |
| Unit of Use - Billing Unit | ROL |
| Unit of Use - Customary Cubic Dimension | 15.473424647636698 ci |
| Unit of Use - Customary Gross Weight | 0.3320007344920727 lbs |
| Unit of Use - Customary Net Weight | 0.3134841090911648 lbs |
| Unit of Use - Customary Height Dimension | 0.5 in |
| Unit of Use - Customary Length Dimension | 5.562992125984252 in |
| Unit of Use - Customary Width Dimension | 5.562992125984252 in |
| Unit of Use - Metric Cubic Dimension | 253.564 CCM |
| Unit of Use - Metric Net Weight | 142.194 G |
| Unit of Use - Metric Height Dimension | 12.7 MM |
| Unit of Use - Metric Length Dimension | 141.3 MM |
| Unit of Use - Metric Width Dimension | 141.3 MM |
| Unit of Use - Item Quantity | 1 |
| Unit of Use - Total Unit Quantity | 1 |
| Unit of Use - Previous Packaging Level Quantity | 1 |
| Unit of Use - Item Unit | RLS |
| Unit of Use - Unit | ROL |
| Inner - Billing Unit | ROL |
| Inner - Customary Cubic Dimension | 67.92626183677564 ci |
| Inner - Customary Gross Weight | 1.3300488277613665 lbs |
| Inner - Customary Net Weight | 1.2539364363646592 lbs |
| Inner - Customary Height Dimension | 0.5511811023622047 in |
| Inner - Customary Length Dimension | 11.259842519685039 in |
| Inner - Customary Width Dimension | 10.94488188976378 in |
| Inner - Metric Cubic Dimension | 1113.112 CCM |
| Inner - Metric Net Weight | 568.776 G |
| Inner - Metric Height Dimension | 0.014 M |
| Inner - Metric Length Dimension | 0.286 M |
| Inner - Metric Width Dimension | 0.278 M |
| Inner - Item Quantity | 4 |
| Inner - Total Unit Quantity | 4 |
| Inner - Previous Packaging Level Quantity | 4 |
| Inner - Item Unit | RLS |
| Inner - Previous Packaging Level Unit | RLS |
| Inner - Unit | PAK |
| Shipper - Billing Unit | ROL |
| Shipper - Customary Cubic Dimension | 1897.618755867433 ci |
| Shipper - Customary Gross Weight | 25.040103738958397 lbs |
| Shipper - Customary Net Weight | 22.570926402487768 lbs |
| Shipper - Customary Height Dimension | 10.590551181102363 in |
| Shipper - Customary Length Dimension | 13.385826771653543 in |
| Shipper - Customary Width Dimension | 13.385826771653543 in |
| Shipper - Metric Cubic Dimension | 31096.4 CCM |
| Shipper - Metric Weight | 11.358 KG |
| Shipper - Metric Net Weight | 10.238 KG |
| Shipper - Metric Height Dimension | 0.269 M |
| Shipper - Metric Length Dimension | 0.34 M |
| Shipper - Metric Width Dimension | 0.34 M |
| Shipper - Item Quantity | 72 |
| Shipper - Total Unit Quantity | 72 |
| Shipper - Previous Packaging Level Quantity | 18 |
| Shipper - Previous Packaging Level Unit | WRAP |
| Shipper - Item Unit | RLS |
| Shipper - Unit | CS |
| Pallet - Billing Unit | ROL |
| Pallet - Customary Cubic Dimension | 95563.18325235076 ci |
| Pallet - Customary Gross Weight | 936.9646142857297 lbs |
| Pallet - Customary Net Weight | 812.5511458669378 lbs |
| Pallet - Customary Height Dimension | 47.24409448818898 in |
| Pallet - Customary Length Dimension | 48.031496062992126 in |
| Pallet - Customary Width Dimension | 42.125984251968504 in |
| Pallet - Metric Cubic Dimension | 1.566 M3 |
| Pallet - Metric Net Weight | 368.567 KG |
| Pallet - Metric Height Dimension | 1.2 M |
| Pallet - Metric Length Dimension | 1.22 M |
| Pallet - Metric Width Dimension | 1.07 M |
| Pallet - Item Quantity | 2592 |
| Pallet - Total Unit Quantity | 2592 |
| Pallet - Previous Packaging Level Quantity | 36 |
| Pallet - Previous Packaging Level Unit | BOX |
| Pallet - Item Unit | RLS |
| Pallet - Unit | PAL |
| Pallet - Pallet Layer Quantity | 4 |
| Pallet - Shipping Container Per Layer Quantity | 9 |
