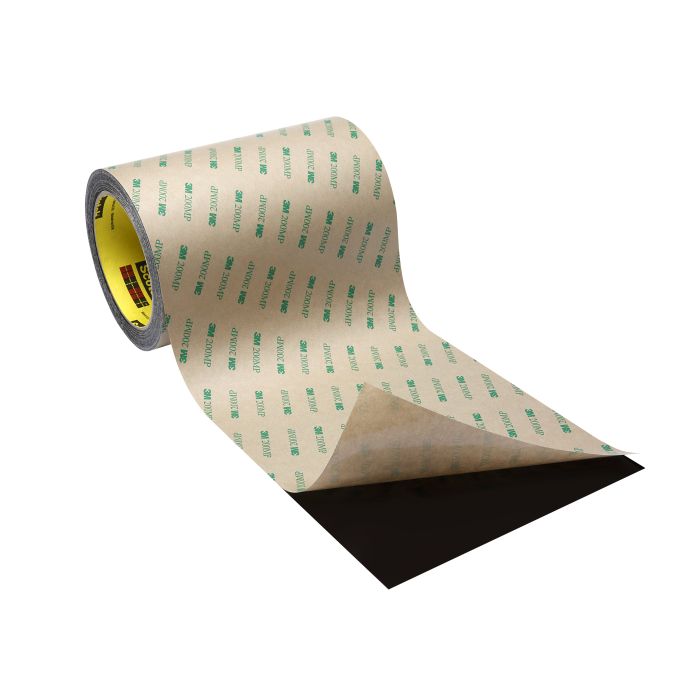

3M™ Double Coated Tape 9495B, Black, 5.7 mil, Roll, Config

An Easy-to-Process Tape for Tough Applications3M™ Double Coated Tape 9495 is a 5.7 mil black PET tape featuring a .5 mil polyester film carrier which delivers excellent handling during processing such as slitting, die-cutting and laminating. The face side is coated with 2.9 mils and the back side with 2.3 mils of 3M™ Adhesive 200MP, known as the industry standard for applications such as nameplate and graphic attachment. This adhesive delivers excellent shear strength as well as exceptional temperature and chemical resistance for tough environments.

A 4 mil, 58-lb. polycoated kraft liner adds stability for efficient processing such as die-cutting.

Recommended Applications

Graphic overlays Nameplates Appliques Decorative trim High pressure laminate bonding

LED lens attachment for cell phones and electronic assemblies

About High Performance Acrylic Adhesive 200MP3M™ Laminating Adhesive 200MP is an industry standard for graphic attachment and general industrial joining applications. It features outstanding adhesion to metal, polycarbonate (PC), ABS and polyester (PET), making it popular across many industries. This adhesive provides some initial repositionability for placement accuracy when bonding to plastics. It also performs well after exposure to humidity and hot/cold cycles, providing confidence that the switch will perform through difficult environmental conditions and millions of actuations. About Double Coated TapeIn general, double coated tape is composed of a paper, film or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobbies.

Bringing Better Ideas to the Surface through Science and InnovationIn the 3M Industrial Adhesives and Tapes Division, they apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, 3M technologies help customers like you deliver competitive products to the market faster and more efficiently.

• .5 mil PET carrier adds dimensional stability and makes for easier handling during lamination and die-cutting
• 3M™ Adhesive 200MP is the industry standard for graphic and nameplate attachment
• Designed with 2.9 mil face side adhesive and 2.3 mil adhesive on the back side for a range of applications
• Delivers excellent adhesive shear strength, resists slippage and edge lifting
• 58# PCK liner adds stability for storage and die-cutting
